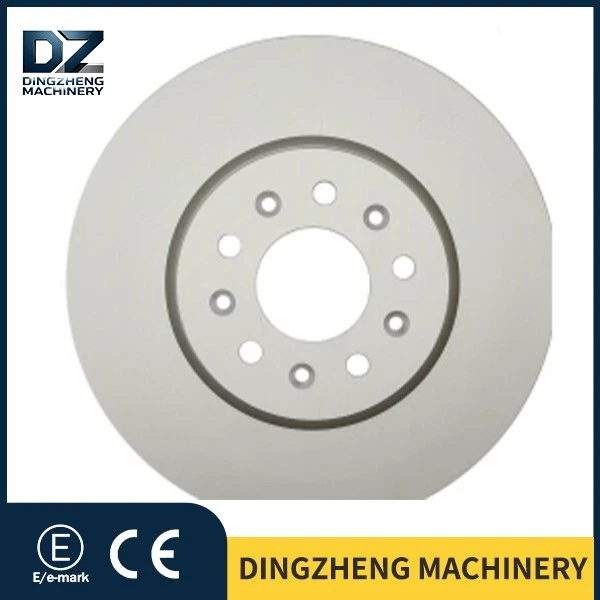

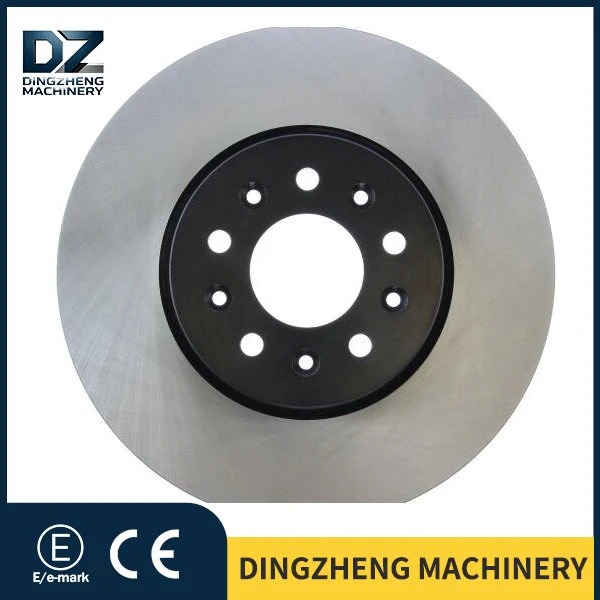

Front Brake Discs for Buick Envision

Those purchasing managers working for overseas auto parts wholesalers and offline auto repair shops have most likely encountered this headache: after installing aftermarket brake rotors on Buick Envision, the steering wheel vibrates violently whenever the brakes are applied at high speeds, accompanied by uneven wear on rotor surfaces, abnormal noises, and unmanageably high repair return rates. The root cause almost always boils down to one single issue-the replacement parts were not manufactured by strictly following the original factory mold data corresponding to OE part number 13583718.

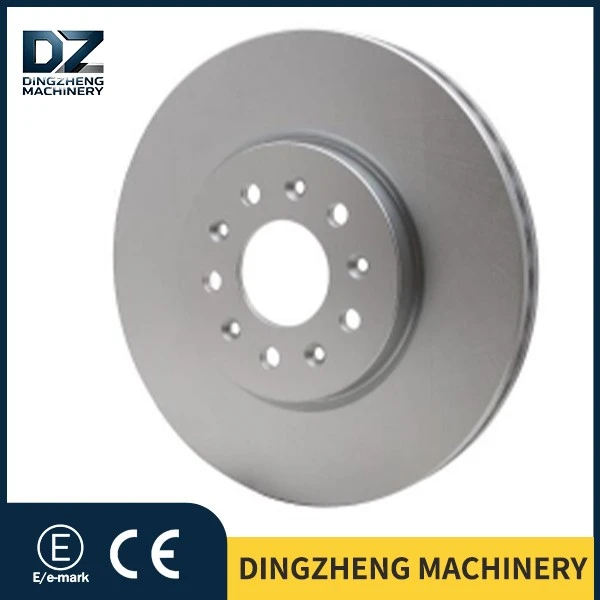

Our front brake rotors are developed one-to-one in full compliance with the original front wheel brake assembly specifications for the Buick Envision, with the exclusive OE number 13583718, delivering a precise fit for the vehicle's original mounting positions. The center bore, bolt hole pitch circle diameter and friction surface outer diameter match the OEM parts with zero tolerance. No grinding of caliper brackets or additional adjustment shims is required during installation, enabling genuine damage-free direct replacement.

Tailored to the curb weight of the Envision and the load characteristics of its front wheel braking system, we have specially optimized the ingredient ratio of high-carbon gray cast iron. This drastically enhances resistance to thermal cracking under high temperatures, preventing premature cracks on rotor surfaces after prolonged downhill braking at the source. Every single brake rotor undergoes individual dynamic balance calibration before leaving the factory, perfectly matching the working travel range of the vehicle's original calipers and brake pads. This completely eliminates common flaws of generic aftermarket alternatives, such as abnormal braking noises and uneven braking force distribution.

For overseas auto parts retailers, this product can be marketed directly as an OEM-quality replacement part. It delivers hassle-free replacements, controllable repair return volumes, and reliable customer reputation.

For the non-friction areas of the front brake disc OE-13583718 for Buick Envision, we rejected the single-layer electrophoretic paint widely available on the market that only provides one thin coating. Instead, we adopted a three-layer composite anti-corrosion spraying process, which delivers graded protection with rigorous quality control at every layer in terms of substrate adhesion and environmental weather resistance.

The first layer is a zinc phosphating base film with precisely regulated thickness. A dense layer of phosphating crystals forms on the cast iron surface via chemical reactions. This layer completely removes oxide layers from the substrate and acts like double-sided adhesive to create a firm bond for subsequent coatings, fundamentally preventing large-scale coating peeling after long-term service.

The second layer is a waterborne epoxy zinc-rich primer with an optimal dry film thickness and an extremely high zinc powder content. Based on the cathodic protection principle, this coating sacrifices zinc actively to block the corrosion of moisture and salt. Even if minor scratches form on the topcoat from bumps and knocks, the internal zinc layer will oxidize first to fully protect the cast iron substrate and stop rust from spreading.
The third layer is a weather-resistant UV-curable topcoat with a suitable film thickness. Its formula is specially optimized for acid and alkali resistance as well as anti-ultraviolet performance, allowing it to reliably withstand diverse climatic conditions including frigid regions in Europe and America, and hot, humid environments in Southeast Asia.

Results from laboratory neutral salt spray tests speak for themselves: the non-friction surfaces of this brake disc offer far superior rust resistance duration compared to conventional brake discs with single-layer electrophoretic paint, delivering long-lasting anti-corrosion performance. Meanwhile, the friction working surfaces are fully masked during the spraying process to eliminate any residual coating, exerting zero impact on the initial braking friction coefficient. The brake disc can be put into normal use right after vehicle installation without extra grinding.

Compatible Vehicle Models

This brake disc is compatible with a wide range of car models, as follows:

SAIC-GM Buick Envision, October 2014 – present

Cross Reference Part Number Table

This product corresponds to a variety of mainstream brand part numbers and OE codes, which can perfectly replace the original parts. The detailed cross-reference information is as follows:

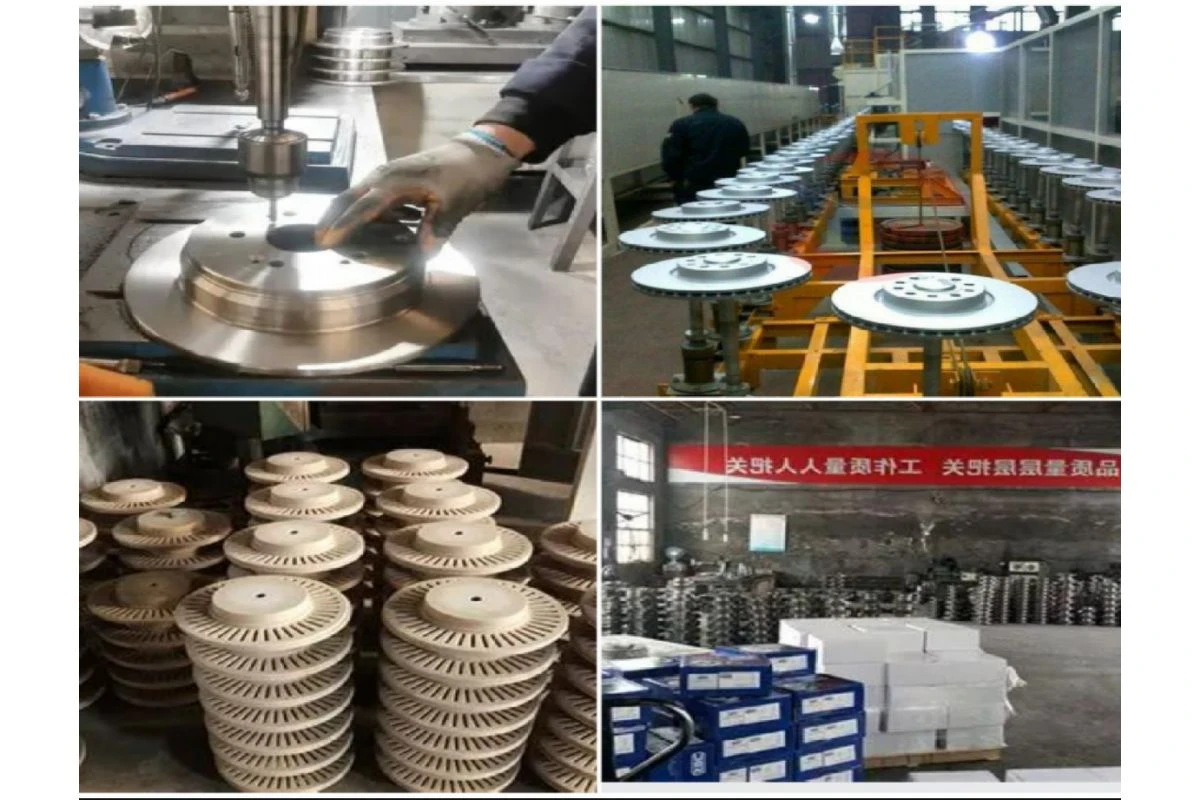

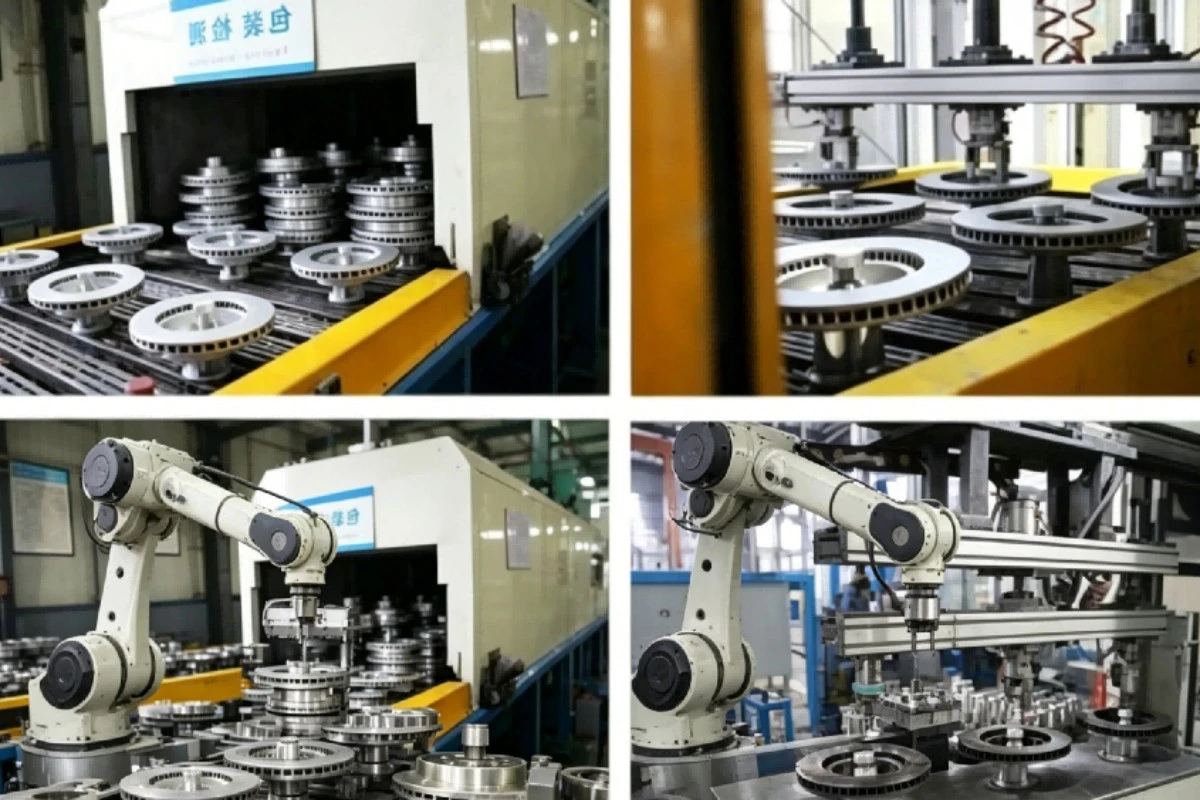

Our brake disc production base features standardized CNC machining workshops certified under the IATF16949 Automotive Quality Management System. The Buick Envision brake disc with part number OE-13583718 is exclusively manufactured in the No.3 Finishing Section with full-process digital control.

All 12 horizontal CNC lathes in this section are equipped with on-machine dimensional inspection probes. After every finishing pass, the probes automatically scan the Disc Thickness Variation (DTV) and lateral runout of the friction surfaces. If readings exceed preset thresholds, the machines will halt automatically for parameter adjustment, guaranteeing that finished products deliver a DTV of no more than 0.009 mm and lateral runout below 0.05 mm.

Blank casting relies on fully automatic horizontal parting molding lines. The composition of molten iron is inspected in real time via on-furnace spectrometers, maintaining the carbon content of high-carbon gray cast iron steadily between 3.2% and 3.5%. Metallographic specimens are reserved for every batch of blanks to examine graphite morphology and matrix hardness.

Six mandatory quality control checkpoints are implemented throughout the entire production process: material hardness testing upon blank arrival, mounting surface flatness inspection after rough machining, surface roughness measurement post finishing (ensuring Ra ≤ 1.6 μm), cross-hatch adhesion test for coatings after spraying, dynamic balance testing of finished products, and full re-verification of all dimensions during final inspection. Before shipment, random samples of each batch of Buick Envision OE-13583718 brake discs undergo thermal fatigue tests complying with ECE R90 standards. The discs sustain 1,000 simulated high-temperature braking cycles without cracking, certifying compliance with EU braking safety regulations.

To meet diverse procurement requirements, we have developed two customized shipping solutions for the Buick Envision OE-13583718 brake discs, complemented by a tiered warranty policy covering both wholesale and retail scenarios.

Large-scale whole-cabinet procurement: Products are individually wrapped in OPP pearl cotton and packaged in five-layer thick corrugated cardboard boxes, with the entire cabinet reinforced on wooden pallets to prevent deformation during transportation. We maintain a stock of 3,000 units and deliver customized orders within 30–40 days.

The after-sales warranty policy adopts a tiered approach: For automotive parts wholesalers and distributors, a warranty of 80,000 kilometers or 18 months is provided (whichever comes first); if quality issues such as brake disc cracking, abnormal wear, or extensive corrosion layer detachment occur under normal use conditions, the corresponding number of units will be replaced free of charge. For end-user auto repair shops, a warranty of 60,000 kilometers or 12 months is offered, accompanied by technical support to assist with resolving issues related to the installation compatibility of Buick Envision OE-13583718 brake discs. All warranty claims are excluded for damage caused by improper installation, use of incompatible brake pads, or operation under abnormal conditions.

Q1: Can the front brake rotor with part number OE-13583718 fit all trim levels of Buick Envision? Are there any fitment differences between two-wheel drive/four-wheel drive variants and models with different engine displacements?
A1: OE-13583718 is a universal OEM part number for the front brake system of Buick Envision. It can be installed directly without modifications on all 2014-2020 1.5T and 2.0T two-wheel drive and four-wheel drive models equipped with stock standard brake calipers (excluding high-performance Brembo kits). For vehicles with aftermarket modified calipers, we recommend checking the friction surface diameter and mounting hole spacing first. We can also help verify precise compatibility using the vehicle VIN.

Q2: Does the OE-13583718 brake rotor engineered for Buick Envision adopt a vented design? How is its heat dissipation performance under fully loaded downhill driving conditions?
A2: The Buick Envision OE-13583718 front brake rotor features the same vented construction as the original factory component, fitted with 36 radial directional vent vanes inside. The width of air ducts is optimized to accelerate air circulation and heat dissipation during high-speed driving. Laboratory testing shows that after 10 consecutive hard stops from 100 km/h to 0 km/h, the maximum surface temperature of the rotor stays below 550°C with a heat fade rate under 8%. Under the fully loaded weight condition of Buick Envision, it can deliver consistent braking force even with repeated braking on mountain roads.

Q3: When replacing the OE-13583718 front brake rotor for Buick Envision for customers, is there a recommended OEM part number for matching brake pads? Are there break-in requirements after installing new rotors?
A3: The OEM part number of front brake pads originally matched with Buick Envision OE-13583718 front brake rotors is 13412816. It is advised to install brake pads of the same specification during replacement to prevent abnormal noises or uneven wear caused by mismatched friction coefficients. A break-in period of 300 to 500 kilometers is required after mounting new rotors. Harsh and emergency braking should be avoided in this period to allow full bedding-in between brake pads and rotor surfaces. Optimal brake feel and braking performance will be achieved once the break-in process is finished.

Q4: As an overseas auto parts wholesaler purchasing Buick Envision brake rotors OE-13583718, can we get neutral packaging or custom private labeling? What is your regular ready stock quantity?
A4: We offer unbranded neutral packaging for overseas wholesale clients, and custom outer cartons and labels with your exclusive brand are available upon request. Artwork drafts for customization need to be confirmed in advance. We maintain a regular ready stock of 3,000 pieces for Buick Envision OE-13583718 front brake rotors. Shipments for standard stock orders can be arranged within 3 working days after payment. The lead time for private label customized orders ranges from 10 to 15 days depending on order volume, supporting branded distribution for channel distributors.

In the past two years, environmental protection and safety requirements for braking systems in the global auto parts market have kept rising. The revised EU RoHS 2.0 clearly stipulates that starting from 2025, the content of heavy metals such as lead and cadmium in brake discs on sale must meet limit standards. Meanwhile, the EU's new round of regulations on brake dust emissions has entered the public consultation phase, which will impose stricter requirements on the material formulations and wear rates of brake discs. The North American market mandates that aftermarket replacement brake parts must be marked with clear OE matching numbers and precision parameters, and vague labeling of "universal fit" is prohibited. The material formulation of our Buick Envision brake disc with OE part number 13583718 has completed RoHS compliance testing in advance, and all parameter markings fully comply with the new regulations of Europe and North America, enabling direct sales in local markets.
