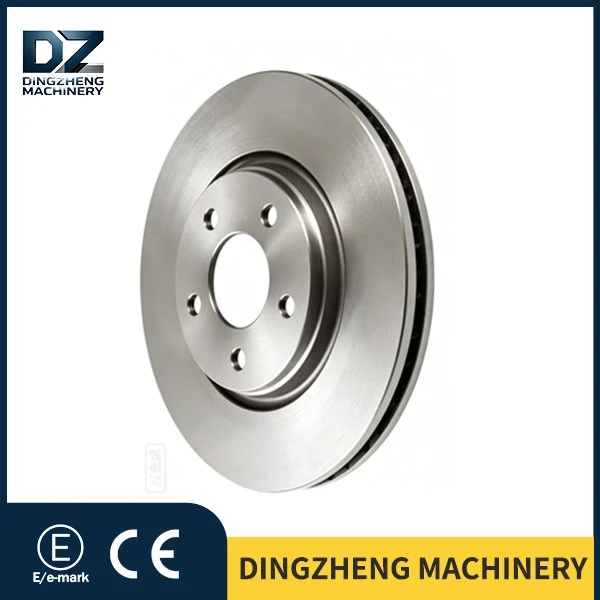

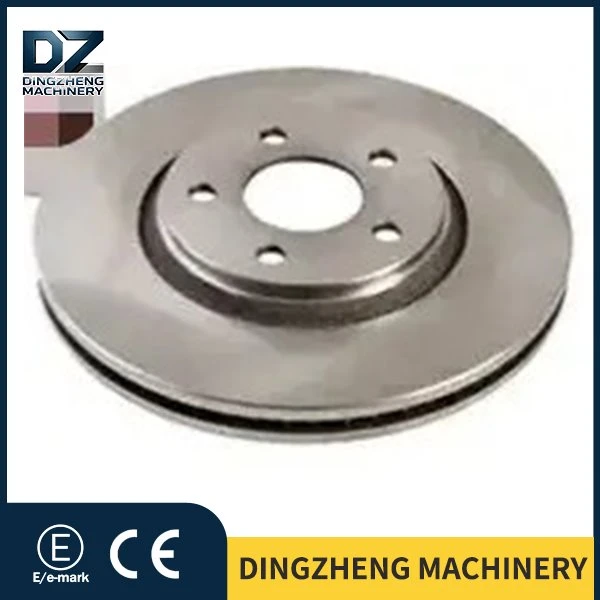

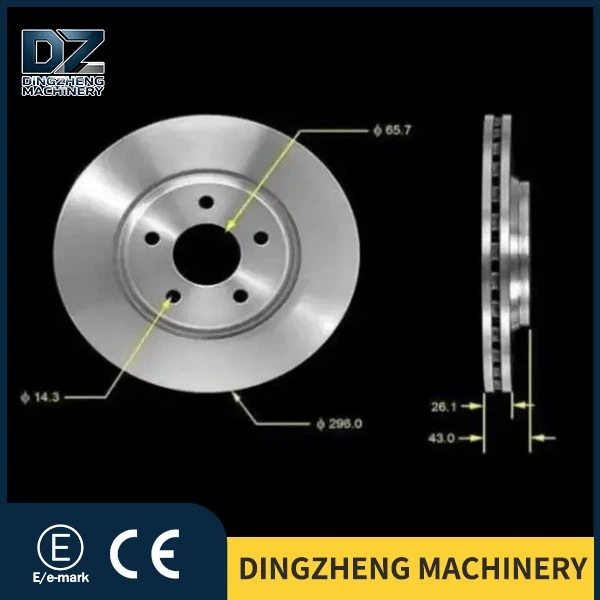

Front Brake Discs for Chevrolet Malibu

When a Chevrolet Malibu reaches speeds between 80–120 km/h and the driver lightly presses the brake pedal, high-frequency steering wheel vibration and pedal pulsation or rebound may occur; these issues are typically caused by excessive wobble at the rotor end face of the original braking system or an imbalance resulting from thermal degradation. The OE-25797350 Chevrolet Malibu front brake disc is a precision OEM replacement part specifically engineered to address these common braking defects in this vehicle model; it fully matches the parameters of the original braking system and requires no modifications for compatibility. This Chevrolet Malibu front brake disc is exclusively compatible with all Malibu models from 2013 to 2016, covering all engine displacement variants-including 1.5T,2.0L, and 2.0T-specifically designed for the front-wheel disc-braking system; it is not compatible with the rear wheels or the Malibu XL extended version. The total curb weight of the vehicle is approximately 1.6 tons, with the front axle accounting for over 55% of the load; since the original front wheel braking load is significantly higher than that of the rear wheels, the OE-25797350 brake rotor features a dedicated ventilated disc structure, precisely matching the piston stroke and friction pad contact area of the original brake caliper, thereby perfectly adapting to the braking conditions encountered during daily commuting and highway cruising. According to actual testing, the original factory standard disc thickness is 28.0 mm, the maximum wear thickness is 26.0 mm, the outer diameter of the disc is 321 mm, the width of the exclusive ventilation channels is 8 mm, and the directional airflow structure enables rapid dissipation of the high temperatures generated during continuous braking. This design effectively resolves common issues associated with the Malibu model, such as high-speed braking vibration, high-temperature braking softness, and uneven wear or abnormal noise from the brake discs; it is the only compliant OEM replacement brake disc for this vehicle model.

First, a nano-phosphating primer layer is applied; this layer is fabricated using a low-temperature dip-coating process for precise application. The primary function of this primer layer is to thoroughly seal the extremely fine capillary pores on the cast iron substrate surface, while simultaneously effectively removing residual oil contaminants and loosely adhered oxide layers formed during the processing stage. This primer layer fundamentally prevents potential coating issues such as peeling or detachment.

Next, a zinc-aluminum flake-based anti-corrosion intermediate layer is applied using an advanced high-pressure electrostatic spraying process. The core mechanism of this layer stems from its unique material composition: the zinc-aluminum flakes within the coating exhibit an interlocking, dense stacking arrangement. This distinctive microstructure effectively blocks the pathways through which water and corrosive media can penetrate, functioning like a robust "labyrinth-style" water barrier. Additionally, this layer possesses excellent cathodic sacrificial corrosion protection properties, enabling it to initiate reactions preferentially in corrosive environments and actively protect the underlying base metal.

Finally, an organosilicon high-temperature resistant topcoat is applied; this final topcoat layer, together with the underlying layer, forms the complete protective coating. The total thickness of the coating is guaranteed to be no less than 26 μm, ensuring the physical strength of the coating; tests have shown that the surface hardness of the finished product can reach pencil hardness Grade H or higher. This coating perfectly adapts to the high temperatures generated during braking as well as various extreme cold weather conditions that vehicles may encounter outdoors, providing the brake disc with long-term surface protection and enhanced aesthetic appeal.

Compatible Vehicle Models

This brake disc is compatible with a wide range of car models, as follows:

Cross Reference Part Number Table

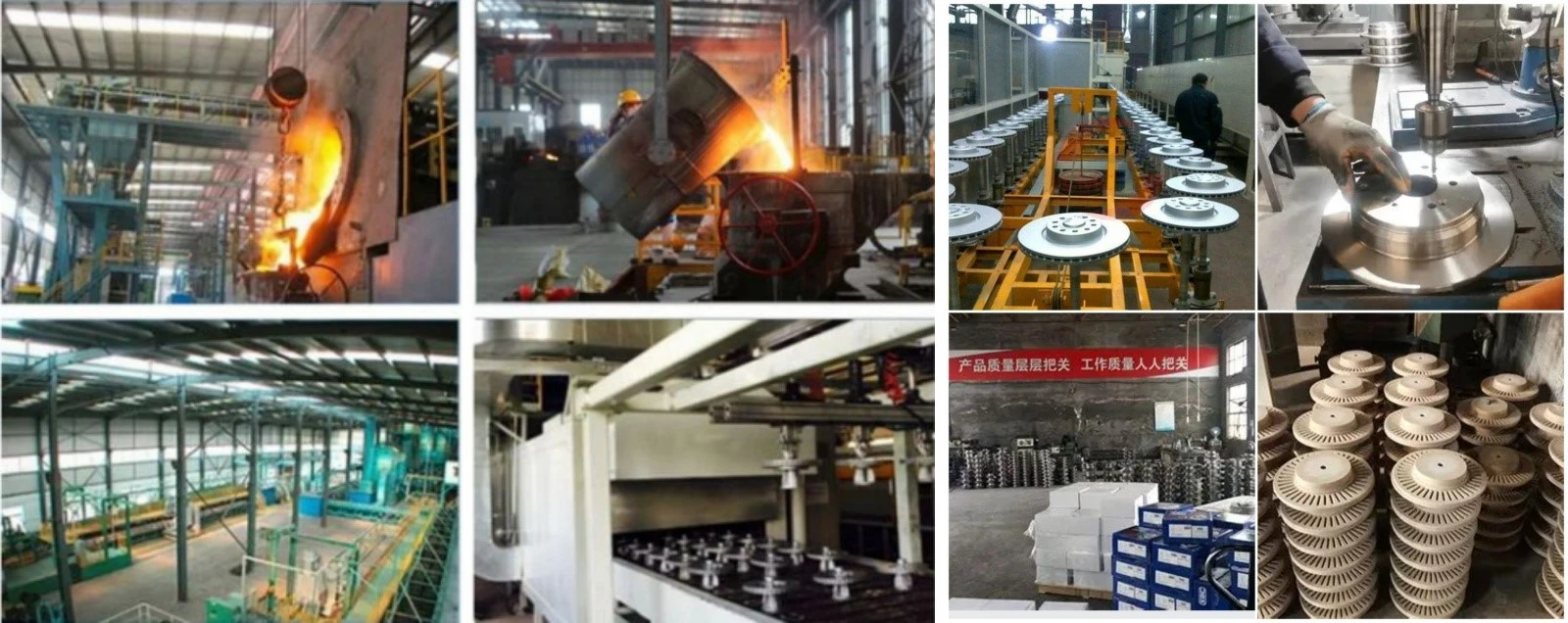

The production line is equipped with a laser runout online inspection station featuring an inspection system with a precision of 0.001 mm; this station automatically scans each completed Chevrolet Malibu front brake disc to measure its end face runout and surface thickness uniformity. Any defective products are immediately rejected in real time, thereby ensuring the geometric accuracy of the output parts and laying the foundation for the smooth operation of the braking system.

The dynamic balancing process utilizes fully automatic dual-sided calibration equipment that measures mass distribution discrepancies via sensors and performs automatic counterweight compensation, thereby controlling the residual imbalance of finished brake discs to ≤5 g·cm-a specification that significantly exceeds industry standards. This approach effectively eliminates body and steering wheel vibrations caused by inadequate dynamic balancing during high-speed braking, ensuring a stable braking experience for users.

The entire production process implements a closed-loop quality control system that provides comprehensive monitoring throughout the entire workflow-from the receipt of blank parts to the dispatch of finished products: upon arrival of blank parts, their chemical composition is tested using a spectral analyzer to confirm compliance with the HT250 high-carbon gray cast iron material standard, thereby ensuring the mechanical properties and wear resistance of the product from the source; after rough machining, operators perform manual re-inspection of deformation; during the finish turning process, key dimensional accuracy is automatically verified; upon completion of dynamic balancing correction, all products undergo a full inspection for surface finish quality, uniformity of the anti-rust coating, and conformity of key dimensions.

For every 50 units produced by the factory, one unit is sampled and sent to a specialized laboratory for a comprehensive set of tests-including metallographic microstructure analysis, hardness testing, and friction and wear performance testing-to verify the quality stability of the batch, ensure that the Process Capability Index (CPK) remains stable at or above 1.33, and guarantee a 100% pass rate for products leaving the factory. All product test data are fully recorded and stored to create a traceable quality record, thereby meeting the quality system audit requirements of both domestic and international purchasers and providing robust evidence supporting product quality.

Standardized Shipping Process: After the customer places an order, the backend system will enter data into the ERP system to confirm inventory levels; qualified products will undergo pre-treatment with rust-proof oil; each unit will be individually sealed in PE bags to prevent moisture ingress; a hollow board partition will be installed between units to protect against impacts; each item will be packed in custom-made thickened corrugated cardboard boxes; the box structure will be reinforced with load-bearing corner supports; the outer box will be printed with the product model, OE number 25797350, compatible vehicle model, and batch information; and a specialized export shipping label will be affixed to the box.

Comprehensive Warranty Terms: The warranty covers a period of 80,000 kilometers or 12 months, whichever occurs first. This warranty applies exclusively to OE-25797350 Chevrolet Malibu front brake discs for defects in the original material or manufacturing process at the factory, including but not limited to: natural cracking of the disc surface; persistent vibration caused by factory deformation; abnormal uniform wear occurring without external force damage; and extensive natural peeling of the coating.

Exclusions: Damage resulting from improper human installation, unauthorized modification, use for racing purposes, or collisions caused by vehicle accidents is not covered under the warranty.

Q1: For which model years and engine displacements can the OE-25797350 Chevrolet Malibu front brake discs be used?

A: These brake discs are specifically designed for all Chevrolet Malibu models from 2013 to 2016; they are compatible with all engine displacements-whether 1.5T,2.0L, or 2.0T. However, please note that these discs are only compatible with the front-wheel braking system; they cannot be used on the Malibu XL, the older classic Malibu model, or installed on the rear wheels.

Q2: How can I quickly confirm whether my old brake discs can be replaced directly with OE-25797350?

A: There are two methods: First, check the original part number engraved on the outer side of the old disc; as long as the part number contains the digits "25797350," it can be replaced directly without any damage. Second, measure the key parameters: the thickness of the new disc is 28.0 mm, the maximum wear limit is 26.0 mm, the disc diameter is 321 mm, and it features a five-hole mounting configuration; if these parameters match exactly with those on your vehicle, then it can be installed directly.

Q3: At what thickness level should the front brake discs of the OE-25797350 Malibu be replaced?

A: The standard thickness for new brake discs is 28.0 mm; the outer edge of the disc surface features a marking indicating the minimum allowable wear thickness of 26.0 mm. If the measured thickness at any point falls below 26.0 mm, the discs must be replaced immediately; otherwise, the braking system's heat dissipation capacity will be insufficient, which could lead to dangerous brake failure.

Q4: When replacing the front brake discs on a Malibu with part number OE-25797350, should the brake pads also be replaced together?

A: It is recommended to decide based on your specific situation. If the wear depth of the original brake pads is less than 30%, or if there are hard spots or grooves on their surface, you must replace them together; otherwise, the new brake discs may be scratched or misaligned by the old brake pads. As for the brake pads, using the OE-compliant model is sufficient-there should be no issues with their fitment.

To all friends at offline repair shops: when selecting brake discs, remember these three practical steps-these tips are quite effective.
Step 1: First, check the thickness. Use a vernier caliper to measure eight evenly spaced points around the circumference of the brake disc. For a front brake disc from a Chevrolet Malibu (model OE-25797350), if the actual measured thickness is less than 26.0 mm, do not hesitate-replace it immediately with a new one; never allow it to exceed the specified limit just for convenience, as this poses significant safety risks.

Step 2: Measure accuracy. Secure the dial indicator to the steering knuckle, align the indicator head with a position 10 mm inward from the outer edge of the disc surface, and then rotate the brake disc at a constant speed for one full revolution. If the end face runout value is within 0.05 mm, it is considered qualified; if it exceeds this limit, the disc will definitely cause vibration whenever the vehicle is installed on the road and the brakes are applied-such discs should be avoided.

Step 3: Verify authenticity. For genuine OEM brake discs, the side of the disc will clearly feature the OE number 25797350, the wear limit "MIN TH 26.0 mm," as well as the production batch and material grade. If the markings are unclear, if no parameters are listed, or if the coating peels off upon contact, then it is almost certainly a non-standard, low-quality part; its precision and corrosion resistance cannot be relied upon, and its failure rate after purchase is particularly high-making it truly unwise to buy such a product.
