Chevrolet Solader Front Brake Discs

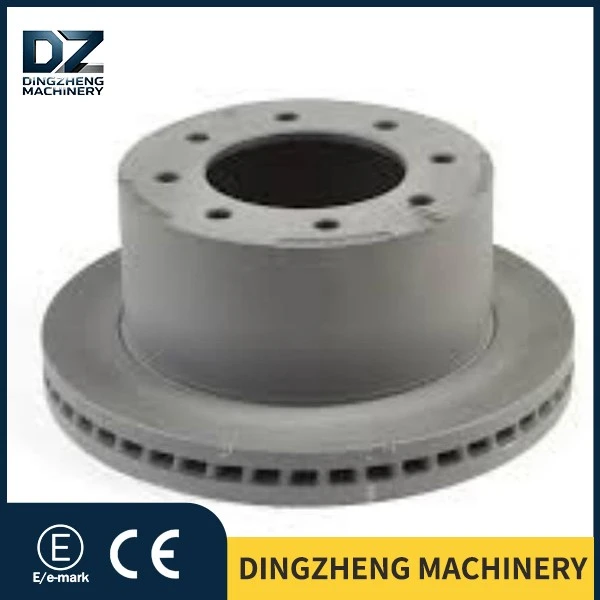

This Chevrolet Solader rear brake disc (Part Number: 25815024) is manufactured in strict compliance with the specifications outlined in the General Motors Official Service Manual. The core material used is high-strength GG25 high-carbon alloy cast iron, which has been subjected to a specialized melting and purification process to remove all impurities. This material results in an exceptionally dense and uniform microstructure, making it less susceptible to casting defects such as sand holes or porosity.

These brake discs are specifically engineered for heavy-duty applications, featuring a dual-convective airflow system optimized through fluid dynamics simulation. Compared to standard factory brake discs, they enhance heat dissipation by 22% during continuous braking. Designed specifically for scenarios such as heavy-load towing or high-intensity driving on the Sorod pickup truck, these discs rapidly dissipate the heat generated by brake friction, maintain stable braking torque, and effectively mitigate issues like brake slippage or vehicle vibration that can occur during prolonged braking under heavy loads or on steep downhill slopes.

The body surface has been subjected to micron-level precision machining, ensuring that its dimensions match the original manufacturer's specifications; this allows for direct, non-destructive replacement of OEM components-no grinding or modification required. This design ensures both stability during heavy-load braking and a smooth driving experience on ordinary road surfaces, making it particularly suitable for the operational requirements of American-made heavy-duty pickup trucks.

CHEVROLET SILVERADO 3500 HD 2011-2014
GMC SIERRA 3500 HD 2011-2014
GMC VAN G3500 1 TON SAVANA 2013-2014

There are different corresponding codes for the Rear Brake Disc of CHEVROLET SILVERADO

Advantages of product surface coating technology (Exclusive Process – 25815024): Heavy-duty pickup truck components exported to North America, such as those used in the Chevrolet Silverado, often involve long transportation lead times and stringent storage requirements. Under the harsh maritime environment characterized by high humidity and intense salt spray, conventional brake discs are prone to flange rusting, paint layer delamination, and surface oxidation, resulting in a high defect rate upon delivery – which adversely affects sales performance and customer satisfaction.

The 25815024 process brake disc utilizes a dual-layer coating technology: first, a 15 μm zinc-aluminum nano-passivation layer is applied to protect the substrate from corrosion by penetrating any existing cracks; subsequently, a 25 μm high-temperature curing epoxy topcoat is applied. The total coating thickness is 40 μm, covering all non-frictional areas without affecting the brake friction coefficient; the coating can withstand temperatures up to 300°C without experiencing cracking or delamination.

Third-party testing has confirmed that this brake disc can withstand a 750-hour neutral salt spray test without any coating failure; its performance significantly exceeds industry standards. It provides effective corrosion and rust protection during maritime transport, outdoor storage, or in high-salt-spray, humid environments, thereby reducing inventory losses and preventing issues such as abnormal noise or uneven braking caused by brake disc rusting. Its durability surpasses that of competing products in the same price range.

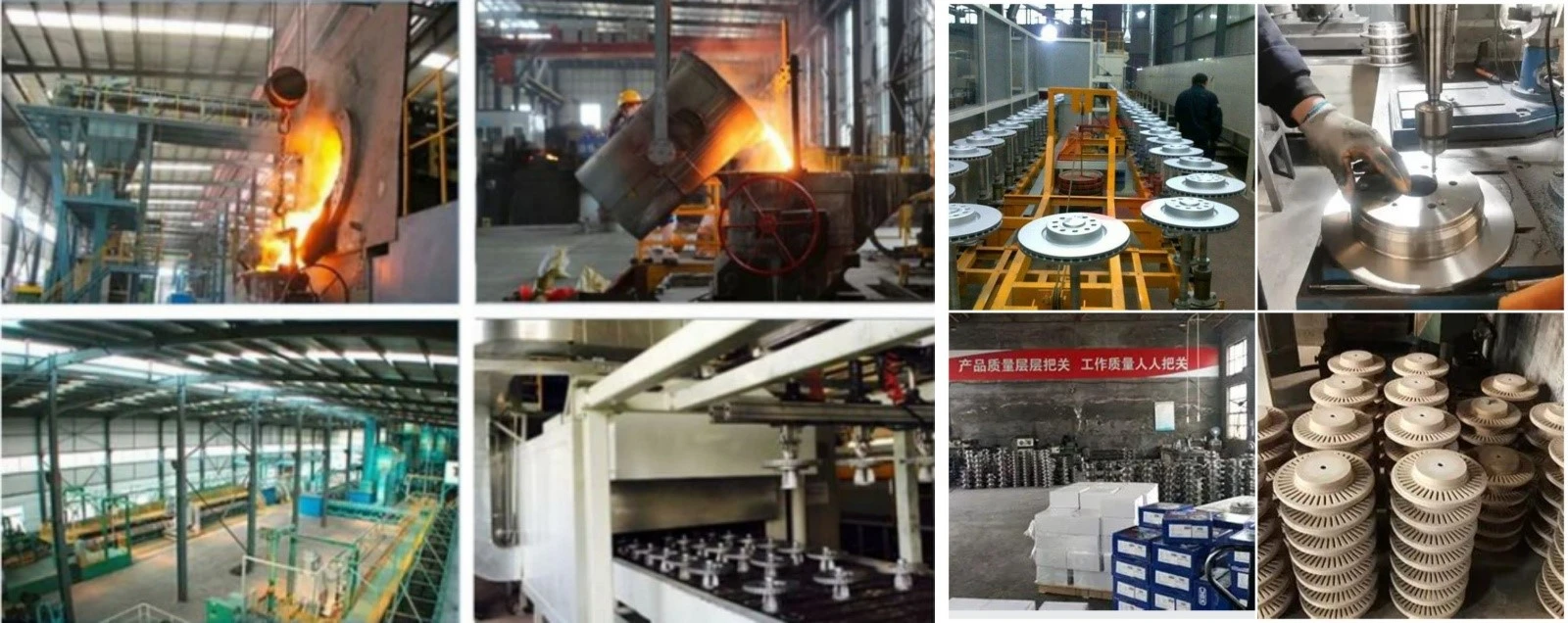

Our factory's machining workshop core advantage:
Chevrolet Silverado heavy-duty pickup's Model 25815024 brake discs are manufactured entirely in our own standardized factory, with no outsourcing or assembly of externally sourced components. The entire production process, from raw material casting, machining to quality inspection, is fully controlled in-house, preventing small workshop-related problems including inconsistent batch quality, excessive tolerances and hidden defects. Our factory holds IATF 16949 certification, meets North American auto parts export requirements, and can fulfill large-scale overseas procurement demands.

The casting process uses a fully automated static pressure molding line. Each batch of GG25 high-carbon cast iron is inspected by spectral analyzer to precisely control carbon-silicon-manganese composition, optimize material toughness and thermal resistance for heavy-load applications, and prevent sand holes, porosity, cracks and material segregation at the source. Precision machining uses dual-sided CNC cutting equipment to ensure uniform double-sided processing, with strict tolerance control: thickness tolerance ±0.03mm, outer diameter tolerance ±0.06mm. Every disc is inspected for dynamic balancing and end-face runout before shipment, with runout ≤0.038mm, exceeding the industry standard of ≤0.06mm, and eliminating heavy-load brake vibration.

The workshop is equipped with MES digital tracking system, so each Chevrolet Silverado 25815024 rear brake disc has a unique production record. Furnace number, batch number, quality inspection and processing data are fully traceable, and large shipments maintain consistent quality. Our factory has sufficient flexible production capacity to handle small-batch samples and large cross-border orders. Combined with a mature warehousing and logistics system, it reduces bulk shipment defect rate, making it an ideal long-term supply partner for North American auto parts wholesalers and repair shops.

Brake discs with model number 25815024 are shipped directly from the manufacturing facility in Shandong Province. The finished products are packaged using a double-layer OPP foam insulation material combined with a reinforced shock-absorbing box, providing comprehensive protection against scratches, paint damage, or deformation during sea freight or long-haul transportation. For standard orders, production, packaging, and shipping processes are completed within 30–45 working days from the date of order confirmation. Global customers may select their own freight forwarder; however, they are required to provide the full contact information for such freight forwarder within 72 hours after order confirmation to facilitate delivery and warehousing arrangements. Warranty and Return Policy: Exclusive Warranty Clause: The rear brake disc for the Chevrolet Silverado model (Part Number 25815024) is covered by the manufacturer's warranty service, with a warranty period of 80,000 km or 12 months, whichever comes first. These brake discs have been tested under heavy-duty towing conditions suitable for pickup trucks and comply with GM's original TIS brake system acceptance standards. This warranty covers issues arising from casting defects, metal impurities, dimensional tolerances during manufacturing, natural coating delamination, or dynamic balance issues.

Q1: Is the brake disc 25815024 suitable for use in all Chevrolet Silverado 1500 models? What are the factory-approved installation torque values and the guidelines for breaking in the new disc?
A: This brake disc was specifically developed for all Chevrolet Silverado 1500 models. It matches exactly the original 6-hole mounting pattern, center hole diameter, and flange dimensions, allowing it to be replaced in place without damaging the original OEM brake discs. No grinding or additional shims are required, and it fits perfectly with the original brakes. According to General Motors' official repair manual, the standard tightening torque for the rear wheel hub bolts is 140 Nm; these bolts should be tightened diagonally in several stages to avoid uneven force that could cause the disc to deform and lead to braking issues. After installation, the new disc needs to go through a 500-kilometer breaking-in period. During this time, full-load towing or frequent hard braking should be avoided. Minor noises are normal during breaking in, and braking performance will stabilize once the breaking-in period is complete.

Q2: For Chevrolet Silverado models used for heavy-duty towing, what is the inspection frequency and replacement criteria for the brake disc 25815024?
A: For regular urban commuting with no load, it is recommended to have the disc's thickness, lateral play, and wear checked every 20,000 kilometers. However, when the vehicle is used for long periods with heavy loads, towing, or off-road driving, brake wear accelerates significantly, so inspections should be done every 12,000 kilometers. The standard thickness of this disc is 28.0 mm, with a legal minimum wear limit of 25.0 mm. If the actual thickness is below this limit, if the depth of the grooves on one side of the disc exceeds 0.5 mm, or if the lateral play exceeds 0.05 mm, the disc must be replaced immediately to prevent safety risks associated with heavy braking.

Q3: If the Silverado experiences braking noises or slight vibrations after being used for heavy-duty driving, how can one determine whether the problem is caused by the brake disc 25815024 or by the brake pads or driving conditions?
A: In most cases, braking noises and slight vibrations under heavy-duty conditions are not caused by defects in the brake disc itself. Prolonged braking can cause the brake pad surfaces to heat up, or dust and debris from off-road driving can get trapped on the brake pad surfaces, leading to noises and vibrations. These issues can be resolved by cleaning the brake pad surfaces with isopropyl alcohol and allowing them to break in properly. If the noises persist even after cleaning and breaking in, and if there are still vibrations or misalignment while driving with no load, then it's necessary to check for problems such as rust, uneven thickness, or excessive lateral play in the disc. This will help determine whether the disc needs to be replaced, avoiding unnecessary part replacements..

1. Latest developments in the auto parts industry​ With the full implementation of the Euro7 standards in the EU and the new EPA emission regulations in North America, the global market for brake components for pickups is undergoing upgrades. These new regulations impose strict limits on the emission of fine particulate matter generated during braking, while also setting higher requirements regarding heat resistance, corrosion resistance, and precision for components used in heavy-duty vehicles. Traditional brake discs with rough surfaces, poor corrosion resistance, and weak heat dissipation capabilities can no longer meet the requirements of the North American aftermarket for heavy-duty pickups. Our 25815024 Chevrolet Silverado brake disc, with its smoothly finished surface, low-dust friction properties, enhanced heat dissipation structure, and long-lasting corrosion-resistant coating, fully complies with the latest regulatory standards in Europe and the United States. It is the preferred product for auto parts suppliers in North America to stock up on and for use in vehicle replacements, offering far superior market suitability and competitiveness compared to ordinary brake discs.

2. Practical maintenance tips for Chevrolet Silverado owners​ First, when driving a pickup downhill under heavy load, try to avoid pressing the brakes continuously for long periods; it is better to use intermittent braking to reduce the accumulation of heat on the 25815024 brake disc, thereby delaying thermal degradation and deformation. Second, after driving through water or in rainy conditions, do not leave the handbrake engaged for extended periods, as moisture remaining in the gaps of the brake disc can cause spot rust. Before starting the vehicle, apply light braking several times at low speed to use the friction heat to dry out any remaining water and remove surface rust, thus extending the lifespan of the brake disc. Third, each time the brake pads are replaced, check the wear patterns and alignment of the brake disc to prevent uneven wear and braking instability caused by mismatched old and new components, ensuring stable braking performance under heavy loads.
