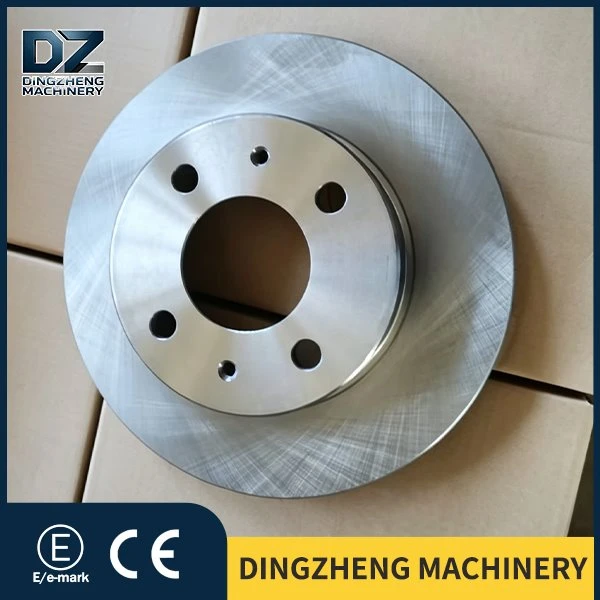

HYUNDAI Atos MPV Front Brake Discs

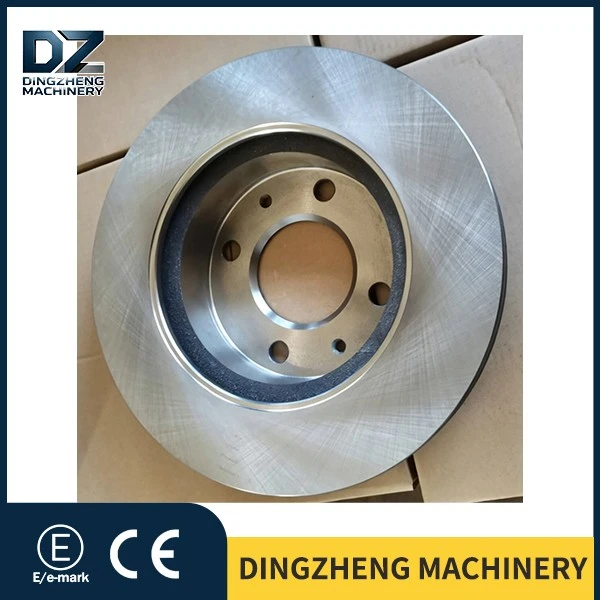

Most business owners operating in the overseas automotive aftermarket have encountered this common headache: the Hyundai Atos MPV, an entry-level urban commuter MPV, boasts a large global vehicle population and suffers from rapid wear of brake components. However, aftermarket brake rotors available on the market feature inconsistent dimensions. After installation, some fail to fit due to slightly offset bolt holes, while others cause steering wheel vibration at high speeds, directly resulting in lost repeat customers. Our front brake rotor with OE part number 5171202501 is an OEM-equivalent replacement part specially developed for the Hyundai Atos MPV MX chassis 1.0L models, covering all production years from 1998 to 2003. Manufactured via 1:1 mold development strictly based on original OEM 3D drawings, it requires no grinding or shim installation and allows direct, damage-free fitting right out of the box.

The blank is integrally cast through static pressure molding using national standard GG25 high-carbon gray cast iron (domestic grade HT250). The finished rotor has an outer diameter of 234mm and a standard thickness of 18mm, with a 4-bolt mounting design and an integrated ventilated cooling structure on the rotor surface. During machining, all dimensional tolerances are tightly controlled within ±0.035mm, the lateral runout of the rotor surface is limited to ≤0.05mm, and the roughness of the friction surface remains stable at Ra0.8μm. Its fitting compatibility with OEM brake pads exceeds 98%, fundamentally eliminating common after-sales issues such as uneven wear, abnormal noise and brake pedal vibration.

Under regular urban commuting conditions, it delivers a stable service life of up to 80,000 kilometers. Whether for bulk stock storage by overseas auto parts wholesalers or retail replacement sales at offline repair shops, this brake rotor matching OE number 5171202501 perfectly restores the original vehicle's braking performance. It provides linear brake output and meets standard heat dissipation requirements, serving as a fully viable replacement for original OEM brake rotors.

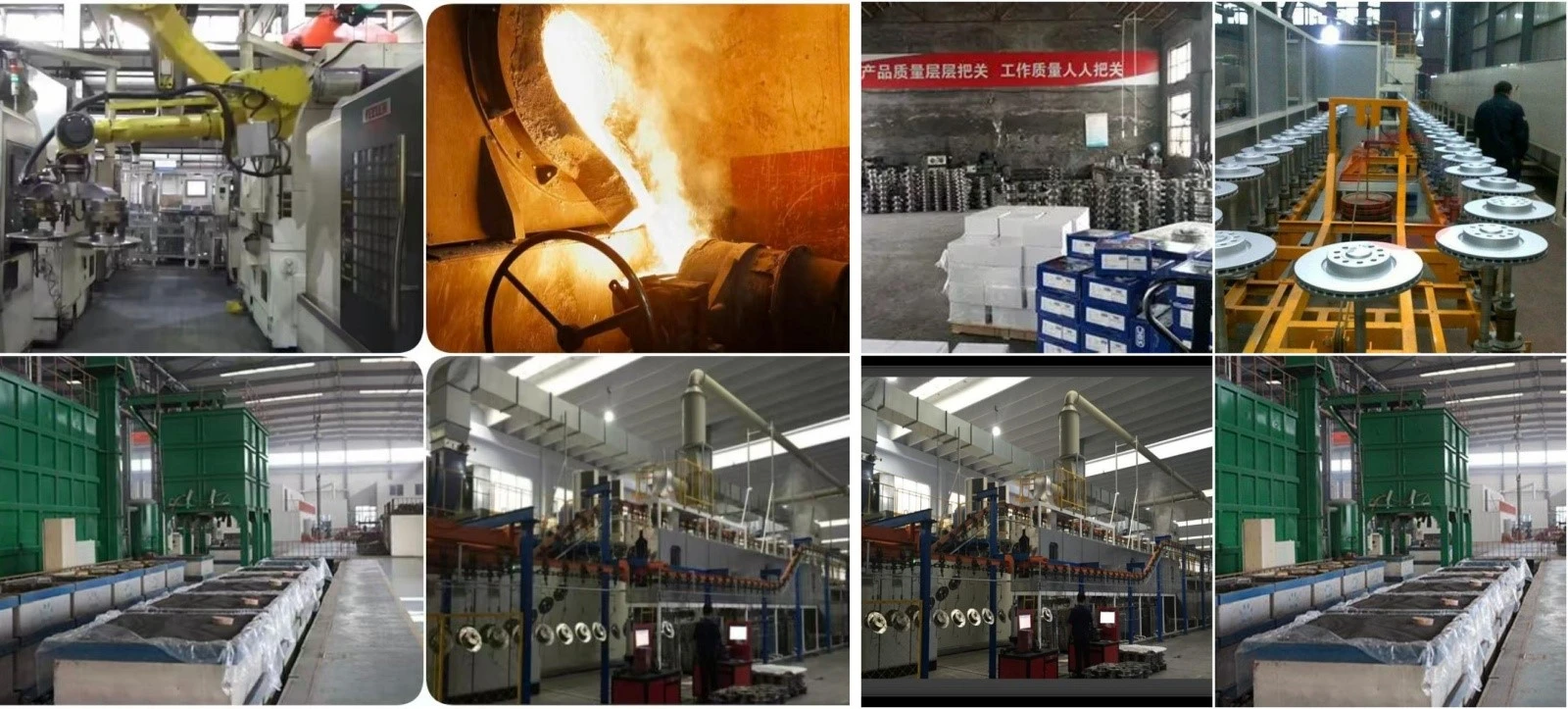

All OE-5171202501 front brake rotors for Hyundai Atos MPV are fully manufactured in our own brake component factory in Shandong with no outsourced processing links. The entire production process strictly complies with the IATF16949 quality control system for automotive parts, and full process records covering casting, machining, coating and inspection are traceable for every finished unit. The workshop's core manufacturing strengths fall into four key segments:

Automated Static Pressure Casting Blank Workshop
GG25 cast iron blanks are cast via fully automatic static pressure molding assembly lines. Direct-reading spectrometers are used to test carbon and silicon alloy ratios for each batch of raw materials, eliminating defects such as brake rotor thermal cracking and accelerated wear caused by uneven material composition. Dual-tool opposed CNC lathes perform simultaneous rough machining on both sides of the rotor friction surface, with datum surface correction completed in a single clamping setup to minimize dimensional deviations from repeated disassembly and re-clamping. The dimensional consistency of mass-produced units far exceeds products machined by single-head lathes in small workshops.

Precision Grinding and Static-Dynamic Balancing Finishing Workshop
Rough-machined semi-finished products are sent to CNC precision grinders for polishing brake friction surfaces, with strict control over DTV (Disc Thickness Variation). The parallelism error of finished rotor surfaces is kept within 0.03mm. All brake rotors undergo mounting hole drilling and high-precision static and dynamic balancing calibration, with single-unit balance error controlled below 5 grams. This fundamentally resolves high-speed brake judder and shrill squealing issues of Hyundai Atos MPV, making the rotors suitable for mixed commuting scenarios including urban expressways and suburban long-distance trips.

Independent Enclosed Three-Stage Inspection Stations
Separate testing zones are designated in the workshop with three independent, non-interfering inspection procedures: full-dimensional laser inspection of semi-finished products, accelerated salt spray aging resistance tests for coatings, and bench tests simulating full-vehicle braking performance for finished goods. Random samples from each production batch are subjected to wear and destructive testing, maintaining a stable overall finished product pass rate of 99.8%. Coating operations are carried out in independent dust-free compartments to prevent dust adhesion on brake friction surfaces, eradicating brake pad squealing after vehicle installation at the source.

Stable Production Capacity Supporting Cross-Border Shipment
One dedicated production line can manufacture 3,000 OE brake rotors exclusively for Hyundai Atos MPV daily, with priority production scheduling for large full-container orders. The factory is a short drive away from Qingdao Port, enabling container loading and customs clearance to be finished within 7 days. The direct factory supply model eliminates markup from multiple intermediaries, ideal for overseas B2B buyers placing long-term stable bulk orders.

This brake disc is compatible with a wide range of car models, as follows:

Hyundai Atos MPV (MX) Jan 1997 - Jul 2015
Hyundai Atos Hatchback (MX), Jan 1997–

Cross Reference Part Number Table

Packaging & Shipping Standards
Each OE-5171202501 front brake rotor for Hyundai Atos MPV shall be individually wrapped with OPP pearl cotton to prevent coating scratches and bumps during transportation. Each rotor is packed in a separate neutral export color box, and full pallets are wrapped with moisture-proof stretch film. The products are compatible with mainstream shipping carriers including COSCO Shipping and Maersk, supporting full container load and less than container load shipments. Container loading and customs clearance can be completed within 7 days at Qingdao Port, and a full set of customs clearance documents are available, including material test reports, IATF16949 certificates and coating environmental test documents.

Tiered After-sales Warranty Policy
Bulk wholesale orders (≥500 pieces): Covered by an original manufacturing warranty valid for 80,000 kilometers. Free replacement of new products will be provided for non-artificial casting and processing defects after installation, with all round-trip logistics costs borne by the factory.
Retail orders for small and medium repair shops: Covered by a 60,000-kilometer warranty. Unconditional return and exchange are allowed within 7 days after receipt of goods for damaged surface coatings or mismatched dimensions.
Technical after-sales support: Free provision of installation torque parameters for Hyundai Atos MPV brake rotors (standard front wheel assembly torque: 98Nm) and an OE matching comparison table for compatible original brake pads. Professional technical specialists are available online to troubleshoot abnormal noises and brake disc vibration issues after installation.

Value-added Services for Long-term Partnerships
Long-term cooperative clients are offered customized outer packaging printing and neutral unbranded packaging on demand. Free samples of brake rotors for new vehicle models can be sent for testing. Clients will be notified 15 days in advance of industry price fluctuations, with price locking and supply guarantee to avoid higher procurement costs caused by raw material price hikes.

Q1: Which model years and chassis of the Hyundai Atos MPV does this OE-5171202501 brake disc fit exactly?
A1: It is precisely compatible with Hyundai Atos MPV MX chassis vehicles equipped with a 1.0L engine, covering production dates from February 1998 to July 2003, including two power variants of 41kW and 43kW. Its dimensions and structure fully match those of the original factory OE part number 5171202501. It can be directly installed without any damage or component modifications as long as the vehicle model matches.

Q2: For owners of the Hyundai Atos MPV, how can they extend the service life of brake discs during daily driving?
A2: Firstly, avoid frequent hard braking and continuous braking on long downhill slopes. Make full use of engine braking to reduce high-temperature thermal fading of the disc surface. Secondly, clear sediment in ventilation grooves every 15,000 kilometers to prevent foreign objects from abrading the disc surface. Thirdly, do not spray high-pressure water directly onto hot brake discs, as rapid cooling may cause disc deformation and cracks.

Tip 1: For high-wear vehicle models such as the Hyundai Atos MPV, prioritize stocking vented brake discs paired with double-layer UV coatings. Solid discs suffer from poor heat dissipation and are prone to thermal fade, generating twice as many after-sales complaints as vented discs. Standard painted discs carry a high risk of rust during ocean shipping; while their initial purchase cost seems low, the combined expenses of returns, replacements and labor actually lead to higher overall costs.

Tip 2: Clients targeting the European market are advised to pre-stock compliant brake components with ECE R90 certification. Once new regulations take effect at the end of 2026, uncertified low-quality parts will face detention at customs and product removal risks. Early product switching allows you to seize the market window brought by compliance requirements.

Tip 3: Purchase and sell brake discs together with matching brake pads as complete sets. This strategy can boost average order value by 30%, and also prevent complaints about abnormal noises and uneven wear caused by material incompatibility between discs and pads, greatly improving customer satisfaction and repeat purchase rates.

If you are an auto parts distributor, repair shop owner or aftermarket importer looking for reliable OE-equivalent front brake rotors for HYUNDAI Atos MPV with OEM number 5171202501, our Shandong factory is your trusted source. We provide anti-rust UV coated brake discs with strict IATF16949 quality control, 80,000km warranty and full export certification support. Welcome to contact us for factory bulk prices and free sample testing.
