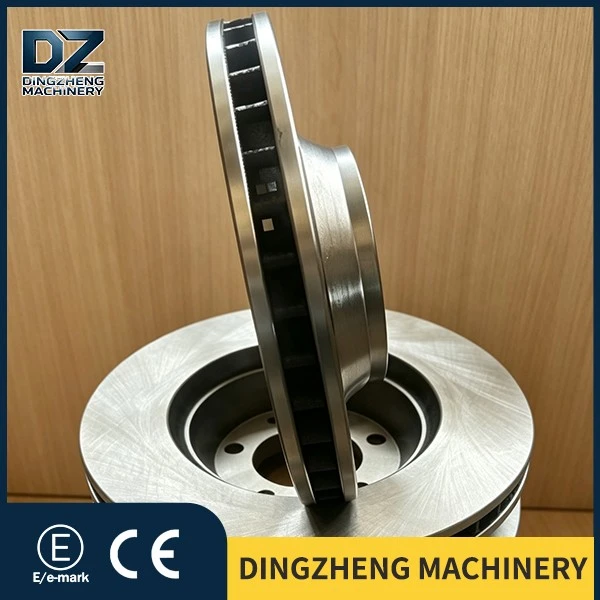

Front Brake Disc for Volkswagen Touareg

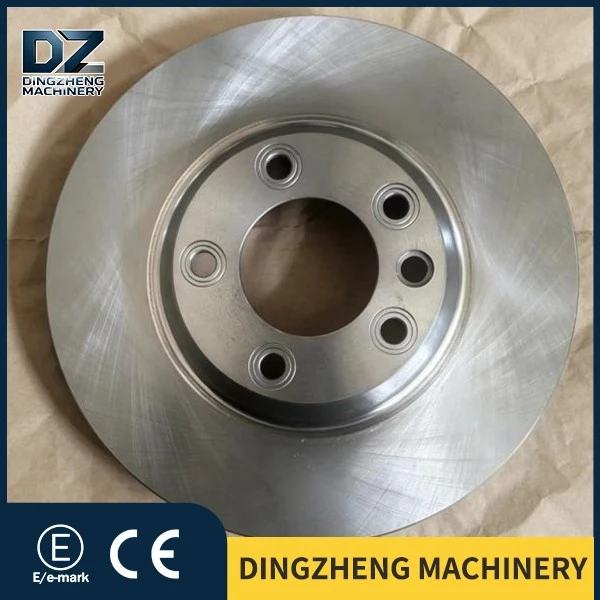

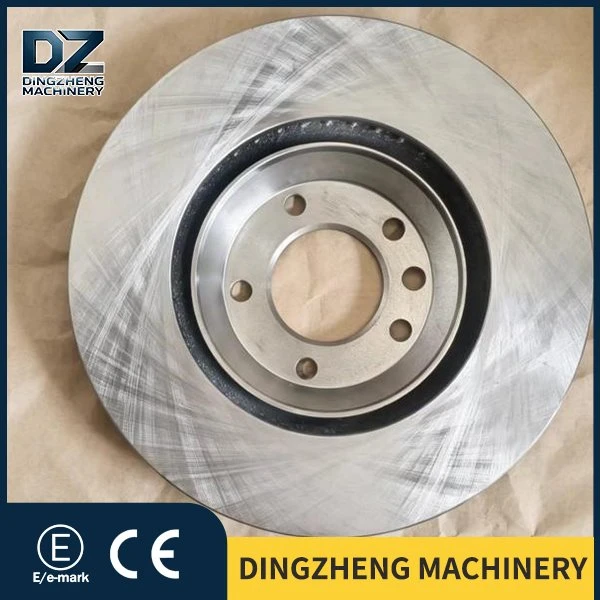

Front Brake Disc for Volkswagen Touareg 7L6615302E is a universal component developed under the Volkswagen Group's modular platform. It fits perfectly on the front brake assemblies of Volkswagen Touareg (2002-2010), Audi Q7 (2007-2015) and Porsche Cayenne (2003-2010) across all trim levels. It is compatible with all engine displacements including 3.0T, 3.6L, 4.2L, 4.5L, 4.8L and 5.0TDI. Whether your vehicle is equipped with air suspension or electronic parking brake, no modifications are needed. You can simply remove the old disc and install this replacement directly. The mounting holes are precisely manufactured to match the original OEM specifications, ensuring full compatibility with the vehicle's ABS, ESP and hill descent control systems. It delivers reliable and consistent braking performance for daily city commutes, highway cruising and light off-road drivingy.

Front Brake Disc for Volkswagen Touareg 7L6615302E is widely compatible with the following models:

There are different corresponding codes for the Front Brake Disc for Volkswagen Touareg 7L6615302E

Surface Coating Technology - Far More Than Just Painting
The core value of brake disc coatings boils down to two key points: preventing rust before installation and protecting non-friction surfaces from corrosion once the disc is fitted on the vehicle.

Applying ordinary anti-rust oil is a low-cost solution, yet it comes with numerous drawbacks. Rust spots start to appear after over three months of storage, and the oil must be thoroughly wiped off with cleaning agents before installation. Any residual oil film will impair the initial braking performance. Additionally, many Audi Q7 and Porsche Cayenne models feature large-opening wheel hubs, leaving the edges and mounting surfaces of brake discs fully exposed. If the discs have no coating or only a layer of anti-rust oil, a ring of red rust will become visible through the wheel gaps within months, which is undeniably unsightly.

We adopt the electrostatic spraying plus low-temperature curing process for our brake disc coatings, with technical standards benchmarked against the GEOMET® zinc-aluminum coating system. Zoned spraying is implemented during application:
- Friction area: Applied with a thin coat. The coating will be evenly worn off by brake pads after a few brake applications, without affecting braking force generation.
- Non-friction areas (central mounting surface, disc edges and outer walls of ventilation ducts): Coated to standard thickness to form a complete anti-rust barrier, with a salt spray resistance rating of hundreds of hours.

After thermal curing, the coating maintains chemical stability below 400°C. It will not carbonize, turn pale or peel off under sustained high temperatures generated by braking. This stands in contrast to some inferior paint coatings that blister and flake when heated. Moreover, the coating on mounting surfaces boasts strong adhesion. It effectively prevents the brake disc from seizing to the wheel hub flange due to rust during subsequent disassembly and maintenance - a particularly practical advantage for owners of Audi Q7 and Volkswagen Touareg, whose brake discs only need replacement every few years.

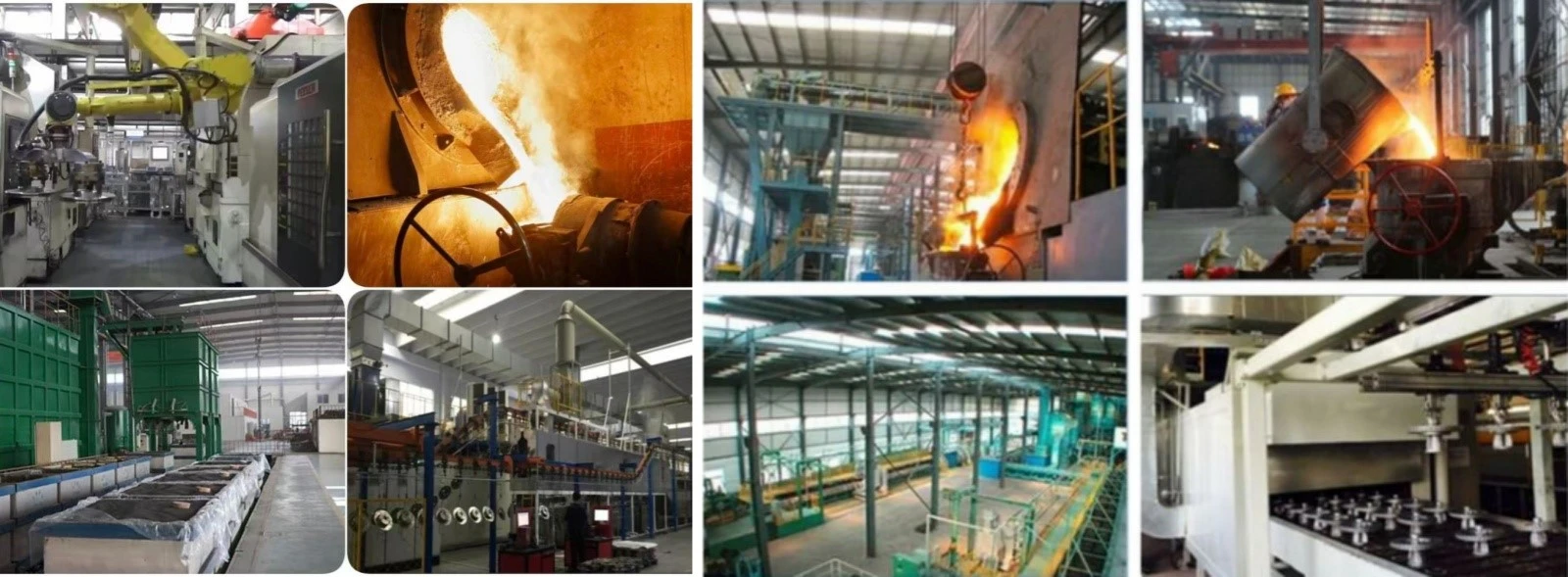

Casting and Machining - Quality Assured from Molten Iron to Finished Products
Every production step of this rotor, from molten iron to factory delivery, is subject to strict quality checks.
Melting Process: The workshop is equipped with German direct-reading spectrometers for rapid composition testing of each batch of molten iron before pouring. Five to six key elements including carbon equivalent, silicon content and manganese-sulfur ratio must meet the design specifications before approval. A mere 0.1% deviation in carbon content will greatly alter the friction coefficient, while excessive silicon content will lead to inaccuracies in hardness control. The spectrometer generates test data within 30 seconds, which is automatically uploaded to the traceability system. Each rotor can be traced back to its specific melting batch, pouring time and working team, enabling quick and accurate investigation if any defects occur.

Casting Process: Fully automatic static pressure molding lines are adopted to ensure uniform compactness of sand molds and high dimensional consistency of castings. Currently, unmanned production modes featuring automated casting, robotic loading and unloading, and fully automatic painting lines are widely applied in brake disc production across the industry. Machining, inspection and surface treatment are all computer-controlled, eliminating batch discrepancies caused by manual operation. The biggest challenge in brake disc casting lies not in shaping, but in the precise control of cooling speed. Excessively fast cooling results in excessive hardness and brittleness of the disc, whereas overly slow cooling leads to coarse graphite structures and reduced thermal conductivity. Our cooling process parameters have been verified through numerous trial productions to keep the length and distribution of graphite flakes at the optimal state.

Machining Process: Precision turning is performed on CNC lathes with articulated industrial robots responsible for loading and unloading, replacing manual chuck clamping. The two friction surfaces are finish-turned in a single clamping setup, with the end runout controlled within 0.05 mm - a tighter tolerance than that specified in most original equipment maintenance manuals. A specialized precision turning process is applied to the friction surfaces to maintain ideal surface roughness, allowing brake pads to form even contact surfaces rapidly during the running-in period.

Dynamic Balance Testing: Every brake disc undergoes 100% dynamic balance testing before delivery. Discs failing the test will be trimmed for correction and will not be released until qualified. This is a full inspection rather than random sampling. Poor dynamic balance will cause steering wheel or vehicle vibration when braking at high speeds, which will make vehicle owners immediately suspect defective brake discs. Therefore, this procedure is indispensable and we never cut corners on it.

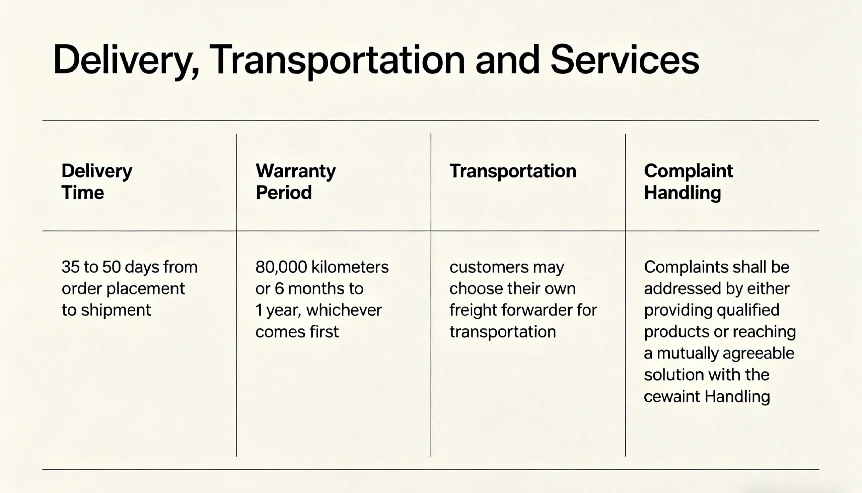

All products are shipped directly from our factory base in Shandong. A single brake disc weighs approximately 12.1 kilograms. Each set is packaged with a five-ply reinforced corrugated outer carton and double-layer EPE foam cushioning inside. The interior is fully filled with no gaps, minimizing the risk of damage during transit. Customers may designate their preferred freight forwarders. The standard production and shipping lead time is 30 to 45 working days after order confirmation.

The front brake discs for Q7, Cayenne and Touareg are large and heavy items. Besides, orders for these vehicle models are usually placed in bulk. We recommend full-container sea freight via COSCO or Maersk to reduce unit shipping costs. For urgent restocking requirements, expedited air freight services (FedEx/DHL) are available. Air freight fees will be quoted separately based on the destination and actual weight.

After-sales & Return Policy
If the received front brake disc has surface defects, dimensional deviations or coating abnormalities, please take clear photos and provide micrometer measurement data via our dedicated after-sales channel. We guarantee to propose a solution within 48 hours, and you may choose product replacement or a full refund.

Quality Assurance
Every brake rotor undergoes 100% full dimensional inspection before delivery. The outer diameter tolerance is ±0.1mm, the thickness tolerance is ±0.05mm, and the face runout is no more than 0.05mm. All inspection data can be traced back to the corresponding production batches and furnace numbers.

Return and Exchange Rules
- Manufacturing quality issues: Free product replacement. We will bear the return freight, and new goods will be dispatched within 3 working days.
- Returns for non-quality reasons: The customer shall cover the return freight. The product must be uninstalled with original packaging intact. Replacement will be processed within 5 working days.
- Damage caused by logistics: Please inspect the goods on the spot upon receipt. Refuse acceptance and take photos if the outer carton is damaged or the brake disc is dented. We will arrange reshipment within 24 hours after settling claims with the logistics provider.

Q: Which vehicles is the brake disc with part number 7L6615302E compatible with? Is it truly interchangeable between the Cayenne and the Touareg?

A: Yes. The Audi Q7 (4L), Porsche Cayenne (955) and Volkswagen Touareg (7LA/7L6/7L7) all adopt the PL71 chassis platform, and their front brake discs share identical specifications: an outer diameter of 350mm and a thickness of 34mm. The part number 7L6615302E refers to the right front brake disc, while its left counterpart is 7L6615301E. The cross-reference list in the replacement parts database covers imported vehicles of multiple brands including Audi, Volkswagen, Porsche, SEAT and Škoda, which proves this brake disc boasts excellent versatility.

It is recommended to check whether the OE number of the old brake disc on your vehicle is 7L6615302E or 7L6615302K before purchase. Verifying via the VIN is the most reliable method.

Q: The Q7, Cayenne and Touareg all weigh over two tons. Can this brake disc withstand hard braking at high speeds?

A: With an outer diameter of 350mm and a thickness of 34mm, this disc is engineered specifically for heavy-duty SUVs. Its internal ventilation structure generates centrifugal airflow to dissipate heat outward as the wheels rotate, delivering far higher heat exchange efficiency than solid brake discs. Made of HT250 cast iron, it features greater thermal diffusivity than regular HT200 material. Braking heat can spread rapidly from the friction surface to the entire disc, minimizing local hot spots. As long as it is not subjected to continuous extreme braking on race tracks, the front brake disc works perfectly for long downhill drives on mountain roads or emergency stops at high speeds. It is advisable to use engine braking to reduce the.

Technology Upgrade Progress: The newly introduced digital twin system in the factory has been put into operation. It can simulate the thermal fatigue performance and heat dissipation effect of brake discs before production, cutting the product development cycle by 30% and raising the one-time qualification rate of castings to over 96%.

Changes in Market Demand: With the continuous growth of the global fleet of hardcore off-road vehicles, overseas orders for brake discs of the Prado LC120/GX470 series rose by 28% year-on-year in the first half of 2026. The Middle East, Australia and Southeast Asia have seen the strongest market demand.
