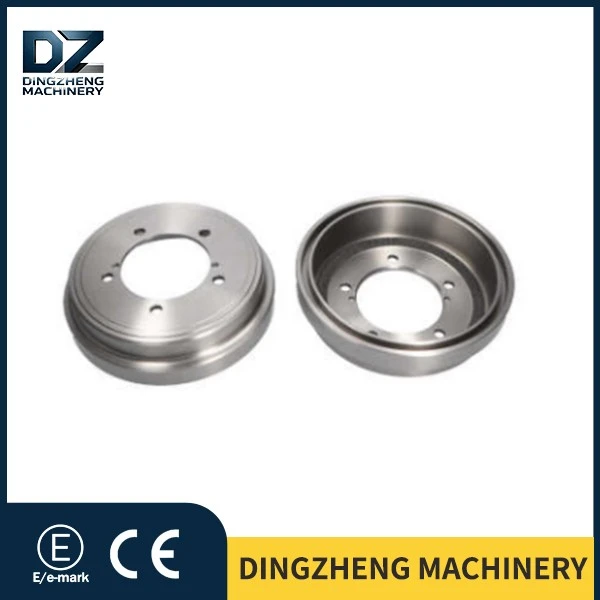

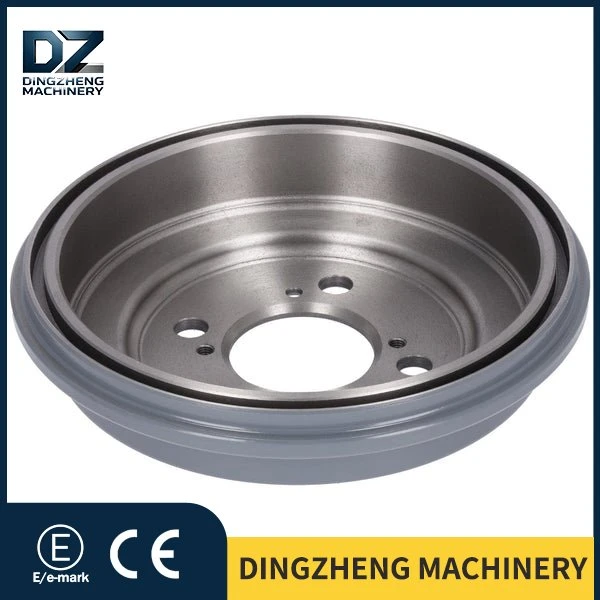

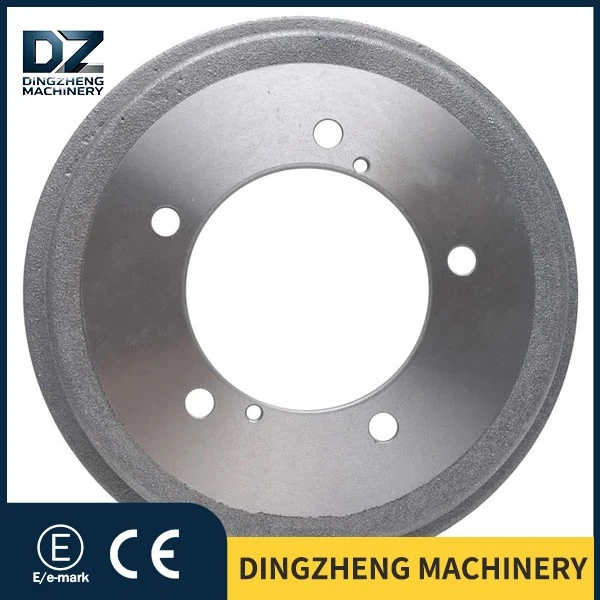

CHEVROLET TRUCK Tracker Brake Drum

• Standard Inner Diameter: 220mm / Safe Wear Limit Inner Diameter: 222mm
• Total Drum Installation Height: 64mm Mounting Holes: 5 holes / Bolt Circle PCD: 139.7mm
• Center Locating Hole Diameter: 108.2mm / Unit Net Weight: 5.7kg
• Structure Type: One-piece reinforced solid brake drum
• Maximum Operating Temperature Resistance: 520℃
• OEM-Compliant Material: Vanadium-titanium microalloy reinforced HT250 gray cast iron
• Factory Geometric Tolerance: Radial Runout ≤ 0.038mm

This Chevrolet Tracker Brake Drum, Part No. 4351165D10, is an OEM-grade replacement component tailor-made for the Chevrolet Tracker light off-road truck. As an entry-level off-road model widely popular across North and South America, the Tracker is built for daily urban commutes, light off-roading, travel on unpaved roads and light towing. Its rear braking system constantly endures splashing sand and mud, corrosion from mucky terrain, and repeated braking under bumpy driving conditions. Unlike heavy-duty hardcore off-road vehicles designed for extreme loads, the Tracker's braking system suffers from three key pain points: abnormal noises after sand intrusion during light off-roading, high susceptibility of the drum to rust in humid conditions, and degraded braking smoothness after prolonged bumpy rides.

Generic aftermarket brake drums available on the market are mostly modified from universal parts, featuring poor hole positioning precision and insufficient material strength. Once installed, they either produce rattling and shaking vibrations during off-road bumpy driving or develop heavy rust shortly after use in rainy seasons, with a wear rate far exceeding that of original equipment parts. Our 4351165D10 brake drum fully aligns with Chevrolet's original chassis braking specifications and undergoes targeted optimization for the Tracker's mixed driving scenarios of light off-roading and city commuting. With reinforced materials, upgraded anti-corrosion treatment and maximum dimensional precision, it perfectly matches the vehicle's original brake shoes, parking brake assembly and rear axle parameters. It enables non-damaging replacement of aged, worn and rusted factory brake drums, delivering smooth, quiet braking for daily commutes while reliably withstanding the rigors of light outdoor off-road use.

There are different corresponding codes for the CHEVROLET TRUCK Tracker brake drum 4351165D10

Many buyers have asked me one question: Is the black paint layer on brake drums actually functional? To be honest, it all depends on what type of paint it is.

Our CHEVROLET TRUCK Tracker brake drum 4351165D10 features a black E-coating applied only on non-braking surfaces. The braking surfaces remain in their original precision-machined state, and there is a solid reason for this-if a coating covers the braking surface, it will hinder the running-in process of new brake pads.

What are the advantages of E-coating? It is an electrostatic painting process whose coating boasts far stronger adhesion than ordinary spray paint. Reliable industrial-grade E-coating can pass a 400-hour salt spray test without rusting. In contrast, many competing products on the market only adopt phosphate treatment or regular spray paint, which are essentially just "transport protective layers" that start to rust a few months after installation on vehicles.

What does this mean for B2B buyers? After a month or two of shaking around inside ocean shipping containers, you will have no way to explain to your customers if rust-covered brake drums are uncovered when unpacking at the port. E-coating ensures no rust forms during shelf storage and transit. When customers open the packages, the brake drums are spotlessly clean-this is the standard a professional supplier should meet.
One extra reminder: There is no need to sand or clean the coating before installation, as the coating only covers non

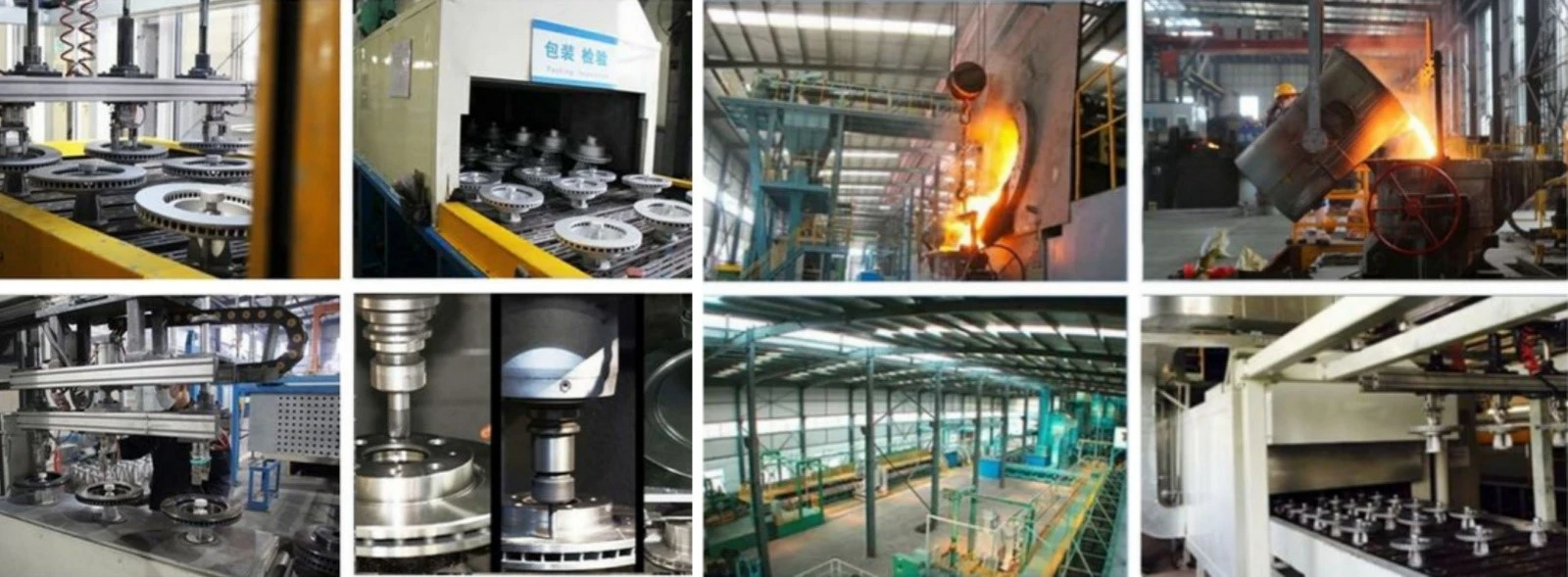

The smoothness and service life of braking performance mainly depend on the machining accuracy and coaxiality of the inner wall. In light of the structural characteristics of the Tracker medium-sized brake drum, we adopt a double-tool synchronous precision boring process. Rough boring, finish boring of the inner wall and end face leveling can all be completed in a single clamping setup, eliminating positioning errors caused by repeated clamping and boosting both machining efficiency and precision simultaneously.

Numerically controlled constant feed is maintained throughout the machining process to counteract cutting vibration and prevent wavy tool marks from forming on the inner wall. The roughness of the final inner friction surface is steadily controlled at Ra≤0.68μm, while the overall concentricity error is strictly limited to within 0.038mm. High-precision machining enables more even contact between brake shoes and the drum wall, delivering linear and smooth brake force output. This thoroughly resolves common issues of the Tracker, including shuddering during light braking at low speeds, abnormal braking noise off-road, and inconsistent left-right braking force. Meanwhile, the uniform wall thickness ensures balanced stress distribution across the drum body. Stable braking performance can be sustained even after prolonged driving on bumpy unpaved roads, effectively extending the overall service life.

Shipping instructions: For 【Chevrolet 4351165D10】Tracker, each brake drum weighs 5.7 kg; a set of two drums has a total weight of around 11.8 kg.

The products are packaged in three layers: a thickened five-layer corrugated box, custom-made polyurethane foam inserts, and edge protectors, all of which serve to safeguard the inner surfaces that come into contact with friction forces as well as the mounting flanges. This packaging helps to prevent damage such as dents or scratches on the paint surface even during long-distance international shipping. International customers are free to choose their own freight forwarder. The standard production and shipping time is 28–38 working days after the order is confirmed.

Q1: What are the differences between this 4351165D10 brake drum and the OEM parts for Chevrolet Tracker?

A1: We are an OE replacement manufacturer, producing products strictly to OE specifications – inner diameter 220 mm, bolt circle diameter 139.7 mm, 5-hole pattern.

The material and critical dimensions match the OE standard, yet we adopt more corrosion-resistant E-coating for surface treatment.

Our pricing holds a clear competitive edge compared with official OE dealer channels.

Q2: The brake drums of Tracker tend to overheat under off-road driving conditions. Can this product withstand such working conditions?

A2: The Tracker is designed for light off-road use without the heavy-load towing requirements of full-size pickup trucks. Its full cast gray iron construction delivers sufficient heat dissipation to cover typical driving scenarios of the Tracker.

A critical reminder: Do not exceed the maximum machining diameter of 222 mm.

Measure the inner diameter every time you replace brake shoes. Replace the drum immediately once its inner diameter approaches the upper limit; otherwise, the excessively thin wall will worsen heat dissipation and reduce structural strength.

Q3: Does brake drum part number 4351165D10 fit the 4WD variant of the 1999-2004 Chevrolet Tracker?

A3: It is a perfect fit. The hole positions, inner diameter and mounting dimensions of this model fully meet Chevrolet's original factory standards. It can be installed directly without modifications on both two-wheel-drive and four-wheel-drive versions, and will not interfere with the normal operation of the rear axle differential and four-wheel-drive mechanism. Its braking performance after installation is identical to that of original factory parts.

Q4: Will this brake drum suffer from brake fade when towing a small trailer with the Tracker?

A4: No obvious brake fade will occur within the rated towing load of 1200 kg. This drum is made of vanadium-titanium microalloy material, which boasts superior thermal stability compared to ordinary gray cast iron. Coupled with a well-designed wall thickness that delivers ample heat capacity, it can maintain stable braking force during small trailer towing on regular highways and intermittent braking on long downhill sections. However, long-term towing exceeding the rated load is not recommended, as it will accelerate wear on the braking system.

The market boasts strong certainty of growth. The global drum brake market was valued at approximately USD 9.84 billion in 2025 and is projected to reach USD 12.52 billion by 2034, representing a compound annual growth rate (CAGR) of 3.0%.

Alternative statistical data puts the market size at around USD 5.69 billion in 2025, with a forecast of USD 7.39 billion by 2031 and a CAGR of 4.45%. Growth is confirmed under either measurement standard.

The commercial vehicle aftermarket acts as the core driving force. Brake drums remain the dominant solution for commercial vehicles including trucks, buses and trailers, especially for rear axles. Stable replacement demand also exists for rear brake drums fitted on SUVs and light trucks such as the Tracker model, owing to their large vehicle parc, harsh operating conditions and frequent replacement cycles.

Shifts are emerging in procurement trends. An increasing number of business buyers no longer focus solely on pricing; instead, they conduct comprehensive evaluations covering material grades, dynamic balance precision, coating corrosion resistance and batch traceability. Simply put, buyers have become more sophisticated, as they calculate total lifecycle costs rather than merely upfront purchase prices.
