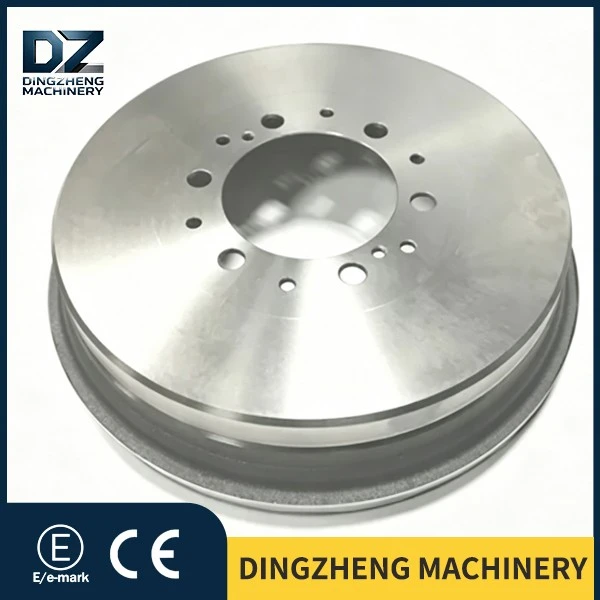

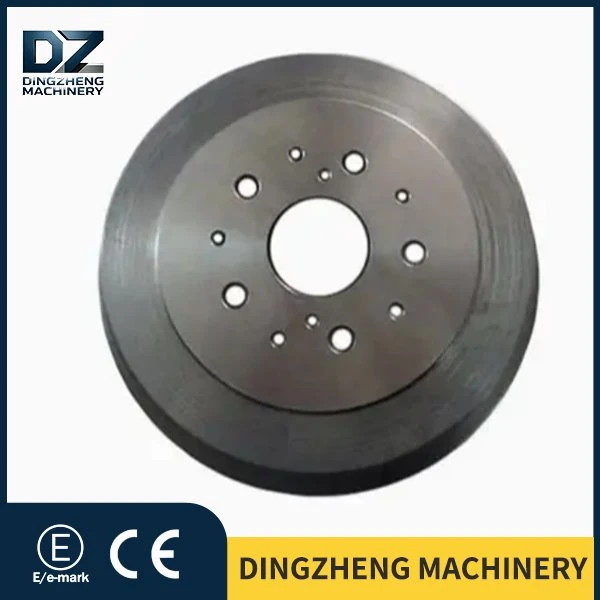

Toyota Hilux Pickup Truck Brake Drum

Part number 424310K090 refers to the original factory replacement brake drum designed for the Toyota Hilux pickup truck. The Hilux is a globally best-selling mid-to-heavy-duty off-road pickup truck, commonly used for hauling heavy loads, driving on rough terrain, and performing long-haul transportation; its braking system therefore differs from that of standard passenger vehicles. During operation, the rear brake drum is subjected to high temperatures, heavy loads, and exposure to mud and sand, necessitating exceptional structural strength, wear resistance, heat resistance, and corrosion resistance.

Standard brake drums are made of soft material with insufficient wall thickness; under heavy braking conditions, they are prone to deformation and rapid wear, and may also experience slippage due to thermal expansion and contraction; the painting process is simple, yet the coating offers poor rust prevention – making the drums susceptible to rusting when exposed to water, mud, or salt, which can lead to binding or abnormal noise.

The 424310K090 brake drum complies with the Toyota Hilux heavy-duty braking standards and is optimized for frequent heavy braking, complex off-road driving conditions, and prolonged heavy-duty use. Featuring a robust construction, durable materials, and strong rust resistance, it is compatible with original factory brake shoes, handbrake assemblies, and rear axle components, and can be directly replaced when original factory brake drums are worn, damaged, or deformed, ensuring stable braking performance and driving safety during heavy-duty off-road operations.

There are different corresponding codes for the Rear Brake Drum of Toyota Hilux pickup truck

Given that Toyota Hilux pickups are primarily used in construction sites, mountainous areas, rural regions, and coastal areas with salty and alkaline road conditions, their chassis is constantly exposed to harsh environments such as impacts from sand and stones, immersion in mud and water, salt spray corrosion, and high temperatures. As a result, ordinary single-layer paint coatings easily peel off, rust, or become corroded over time. For the 424310K090 heavy-duty brake drums, we have developed a five-layer electrostatic painting process designed for extreme weather conditions; this process offers superior corrosion resistance, heat tolerance, and impact resistance compared to the standard factory coating method, making it ideal for the demanding conditions faced by these pickups.

The first step involves thorough pre-treatment of the substrate: through high-pressure degreasing followed by acid-base passivation, any residual cutting oil, metal particles, and surface impurities are removed completely, thereby preventing issues such as paint peeling, flaking, or delamination. The second step entails applying an penetrating epoxy sealant coat, which fills the microscopic pores in the cast iron, effectively preventing water vapor, salt, and mud from penetrating into the substrate and thus stopping internal corrosion from spreading. The third step involves applying a thick anti-rust intermediate coat, which enhances the adhesion of the paint and its resistance to impacts caused by sand and stones in harsh environments. The fourth step is the application of a high-temperature and wear-resistant topcoat, which ensures that the paint does not change color or crack even under high braking temperatures. Finally, the coating is cured at a temperature of 155°C, resulting in a dense and hard paint layer with excellent adhesion.

This entire painting process covers only the outer surface of the brake drum, its mounting base, and edges-areas that are not subject to friction-so it does not affect the drum's ability to dissipate heat or its friction properties. Tests show that the paint can withstand up to 110 hours of salt spray exposure, which represents an 80% improvement in corrosion resistance compared to the factory-standard paint. It can handle challenging conditions such as rainy weather in mountainous areas, salty air along the coast, and muddy conditions on construction sites. Even after long periods of use in harsh outdoor conditions or when parked outdoors, there will be no peeling of the paint, spread of rust, or corrosion of the substrate, thus effectively maintaining the structural integrity of the brake drum and extending its service life.

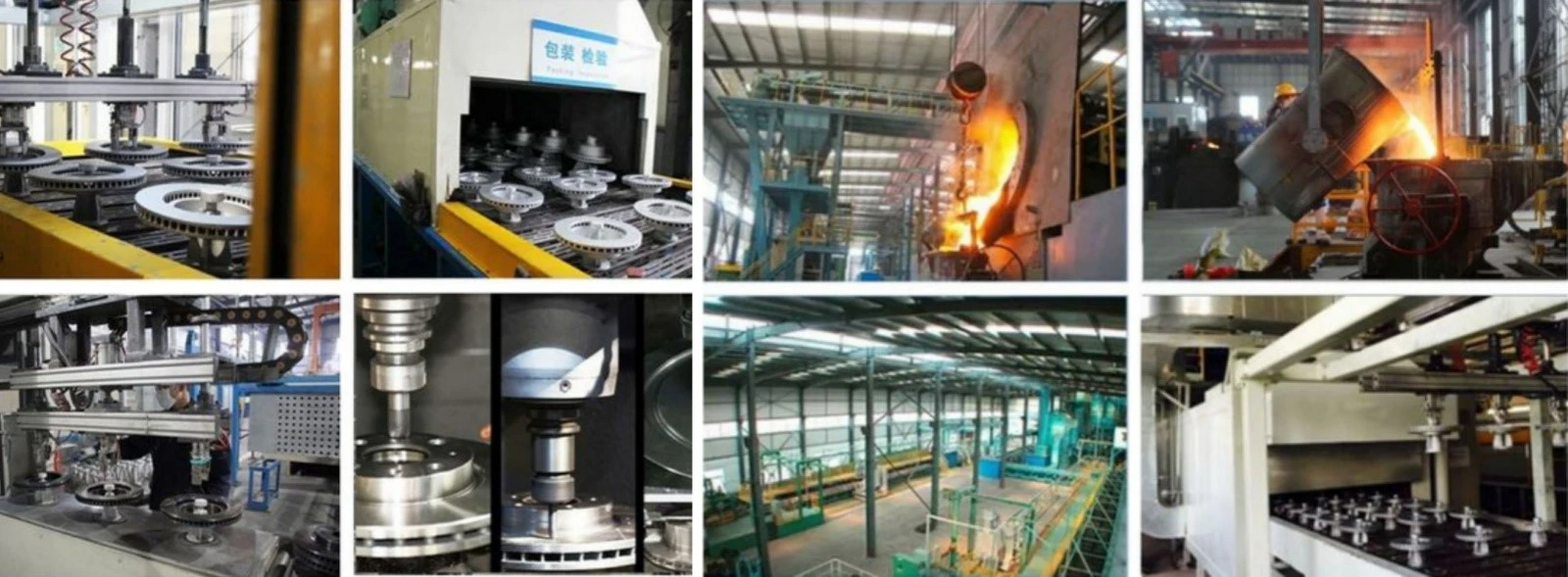

Our factory is located in Shandong Province and specializes in the production of brake components for pickup trucks, off-road vehicles, and heavy-duty vehicles. To address the manufacturing challenges associated with producing large-sized, thick-walled brake drums (model 424310K090), we have developed a dedicated production line designed to resolve industry-wide issues such as uneven wall thickness, porosity, thermal fatigue cracking, and insufficient strength.

The production line employs a fully automated high-pressure static pressing process, which delivers superior sand-molded performance compared to traditional casting methods, thereby eliminating casting defects such as porosity at the source; it utilizes real-time in-furnace spectral analysis to optimize the alloy composition based on HT250 cast iron, enhance the pearlitic microstructure, and improve the resistance of the brake drum – enabling it to withstand the high-temperature and low-temperature cycling conditions associated with heavy braking in the Hilux vehicle without experiencing softening, cracking, or deformation.

All raw materials undergo a two-stage stress relief treatment: 72 hours of natural aging followed by temperature-controlled tempering to eliminate residual stress and prevent subsequent eccentric deformation; this is followed by shot blasting and polishing to remove impurities, ensuring the cast iron achieves high density, laying a solid foundation for subsequent machining and enhancing durability and service life.
Tailored to the specifications of part 424310K090, a heavy-duty four-stage precision boring process is employed instead of the conventional single-pass machining approach; this involves staged machining and precise CNC control parameters to minimize vibration, ultimately achieving an inner wall surface roughness of Ra ≤ 0.7 μm and a concentricity error of ≤ 0.04 mm.

This precision-engineered fitment rate exceeds 99%, effectively resolving common issues such as brake vibration in the Toyota Hilux; it ensures uniform force distribution, delivers stable braking performance over long-distance off-road driving, and minimizes the risk of wear or deformation.

So here's the deal with the warranty: for these Toyota Hilux brake drums (part number 424310K090), we give you a manufacturer's warranty covering 80,000 kilometers or 12 months, under heavy-load use. These parts have been tested and they meet Toyota's original specs for brake systems. They've also gone through thousands of durability tests, specially designed for tough conditions like heavy loads, non-stop braking on mountain roads, and driving on unpaved off-road terrain. The warranty covers a bunch of manufacturing-related defects, like problems with the metal itself, casting flaws, inner surface dimensions being off, deformation right out of the factory, and defects in the surface painting p
rocess.

Now, for shipping: for the Toyota 424310K090 Hilux heavy-duty brake drums, each drum weighs 7.8 kg, and a set of two drums comes to about 16.2 kg. We pack them with triple protection: thick cardboard boxes, high-density pearl cotton, and shock-absorbing corners. This is all to protect the friction inner surface, the mounting holes, and the paint on the edges of the drums. That way, we prevent damage like dents, scratches on the paint, or wear on the inner surface during long-distance international shipping. International customers, you're free to pick your own freight forwarder. The standard production and shipping time is 30 to 40 working days after the order is confirmed.

Q1: Is the brake drum 424310K090 suitable for all Toyota Hilux pickup models from 2004 to 2015?
A1: This OE model is perfectly compatible with all 2-wheel-drive and 4-wheel-drive versions of the 2004–2015 Toyota Hilux VII KUN26/GGN25 pickups. Its hole pattern, inner diameter, installation dimensions, and load-bearing capacity all meet the original manufacturer's standards, allowing for direct replacement without any issues. It is not suitable for older Hilux models or the Fortuner SUV version; it is advisable to check the vehicle's chassis model before purchasing.

Q2: Will the multi-layer coated surface affect the cooling efficiency of the Hilux's braking system under heavy loads?
A2: It does not affect braking cooling or performance at all. The anti-corrosion coating is applied only to the outer surface of the drum and the mounting base, which are non-friction areas; the actual braking surface remains uncoated, enabling rapid heat dissipation. Additionally, the topcoat has excellent high-temperature resistance, allowing it to withstand the high temperatures associated with heavy braking over extended periods. This prevents problems such as softening, sticking, or peeling of the coating, ensuring it is fully compatible with the Hilux's braking cooling system.

Q3: How can the lifespan of the brake drum 424310K090 be extended when the Hilux is used for long-distance heavy loading?
A3: When driving under heavy loads, try to avoid using the foot brake for extended periods; instead, use lower gear speeds to reduce the continuous high-temperature stress on the brake drum. After off-road trips, clean out any dirt or debris from around the rear wheel brakes to prevent wear and friction on the braking surfaces. Applying intermittent braking on steep downhill sections helps to reduce thermal deformation, thereby significantly extending the lifespan of the brake drum.

Simple tool-free inspection tips for vehicle owners (specific to pickups)​
1. Inspection of the paint's corrosion resistance: Look at the paint on the outer surface of the brake drum through the gaps in the wheel hubs. If the paint is intact with no peeling or areas of rust, it means the anti-corrosion layer is functioning well and can withstand harsh conditions in the outdoors; if there is peeling or spreading rust, it indicates that the anti-corrosion layer has failed, and repairs or replacement are necessary.

2. Detection of abnormal noises under heavy load: When driving at low speeds under heavy load and applying light pressure to the brakes, regular, harsh noises are usually caused by wear and scratches on the inner wall of the brake drum. Irregular noises are generally due to sediment buildup on the brake pads, which can be resolved by cleaning them.

3. Testing of the parking brake: On a flat surface, engage the handbrake and put the vehicle in neutral. It is normal if the vehicle cannot move when pushed gently while loaded; if the vehicle moves easily, it means the brake drum is excessively worn or not fitting properly, resulting in reduced braking performance.

4. Comparison of temperatures on both sides: After driving under heavy load, wait for a moment and touch the temperature of the brake drums on both rear wheels. A uniform temperature difference between the two sides is normal; if one side is abnormally hot, it indicates that braking is impaired on that side and the brake drum may be misaligned, requiring prompt repairs.
