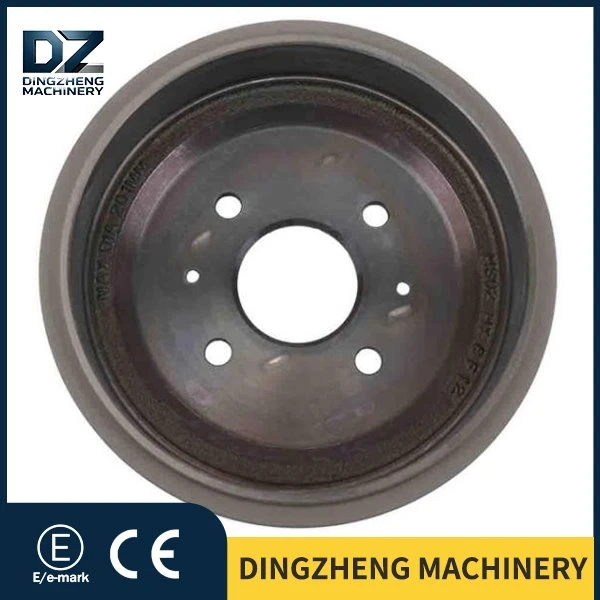

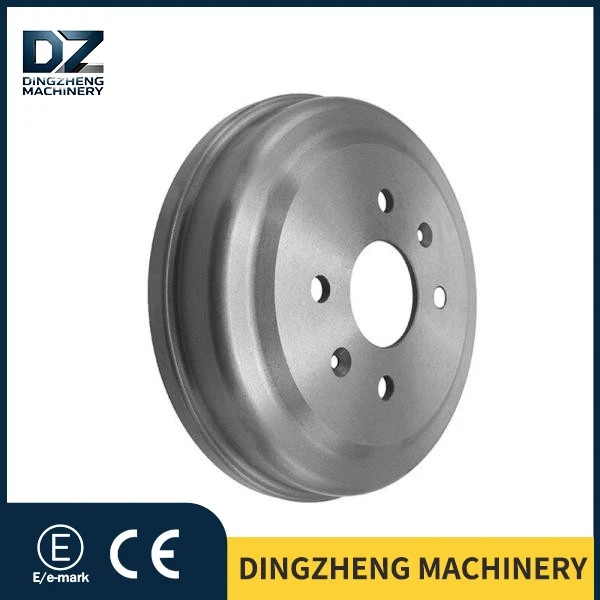

Chevrolet Spark Brake Drum

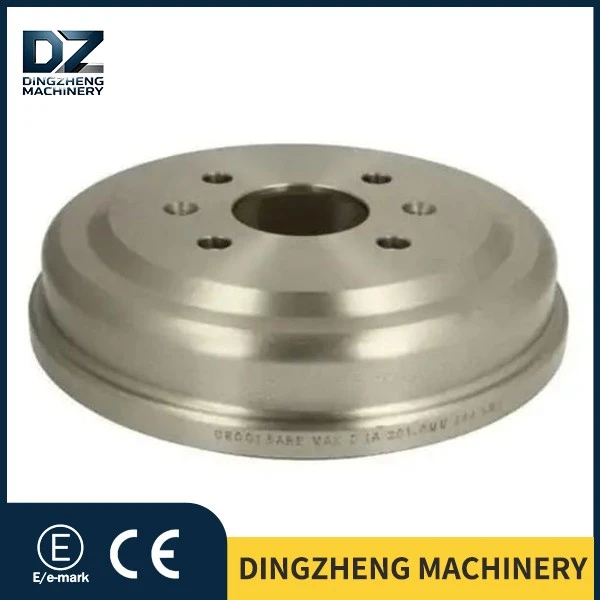

I've owned my Spark for years, so I know every quirk of this car inside out. Today I won't talk about anything else-let's break down the OEM rear brake drum for Chevrolet Spark, part number 96470999. Many people think rear drum brakes are just plain metal chunks that only need to stop the car, but there's far more technical nuance to them than you'd expect. This brake drum with part number 96470999 we have on hand is specifically engineered for compact chassis variants like the Spark M300 and M350. Pick one up and you'll feel its substantial heft; it's crafted from HT250 grey cast iron, a grade far superior to scrap recycled metal alternatives. It mates seamlessly with the rear axle bearing hub and ABS tone ring from the original vehicle, eliminating annoying issues such as wheel pull or rubbing against the dust shield after installation. Each unit undergoes factory dynamic balancing, so you only need to tighten the four wheel lug bolts once mounted-no secondary balancing required. Honestly, this Chevrolet Spark rear brake drum, part number 96470999, is the kind of auto part that looks unassuming yet delivers rock-solid reliability in daily use.

Chevrolet Spark (M300), Dec 2009–
SPARK (M300) 1.0
SPARK (M300) 1.2

There are different corresponding codes for the Rear Brake Drum of Chevrolet Spark brake drum 96470999

Many buyers only focus on the thickness of cast iron when selecting brake drums, completely ignoring the importance of surface protection. This is especially true for city short-distance commuter vehicles such as the Spark. Their brake drums rarely reach high temperatures to evaporate moisture. In plum rain regions in southern China and coastal cities with heavy salt spray, numerous brake drums are scrapped prematurely because their outer surfaces rust through first, leading to reduced structural strength. The rear brake drum for Chevrolet Spark, Part No. 96470999, features an upgraded surface painting process specially developed to address this pain point, delivering far superior protection compared to ordinary painted components.

The Chevrolet Spark rear brake drum (Part No. 96470999) adopts a fully automatic electrostatic powder coating process with modified epoxy resin anti-rust paint, which is vastly superior to traditional manual brushing and air spraying. In a high-voltage electrostatic field, paint powder particles carry negative charges and are directionally adsorbed onto the grounded brake drum substrate. Thanks to the electrostatic encirclement effect, even hard-to-reach dead corners that regular spraying cannot cover, such as flange edges and inner walls of bolt holes, receive a uniform coating without thin film edges or missing spray areas. The finished coating maintains a stable thickness of 80–120 μm with adhesion reaching the industry Class 0 standard, resisting paint peeling from minor bumps during normal logistics handling. It passes neutral salt spray testing exceeding 720 hours, effectively isolating moisture and salt erosion and slowing rust formation on the cast iron substrate for long-term service in high-salt coastal and humid rainy southern environments.

In addition, the coating of Chevrolet Spark rear brake drum (Part No. 96470999) undergoes high-temperature resistant modification, capable of withstanding transient temperatures up to 300°C without blistering, paint peeling or discoloration caused by heat generated during braking. Even with frequent stops and repeated braking in summer traffic jams, its neat appearance and protective performance remain stable long-term, avoiding heavy rust stains that ruin aesthetics after only half a year of use.

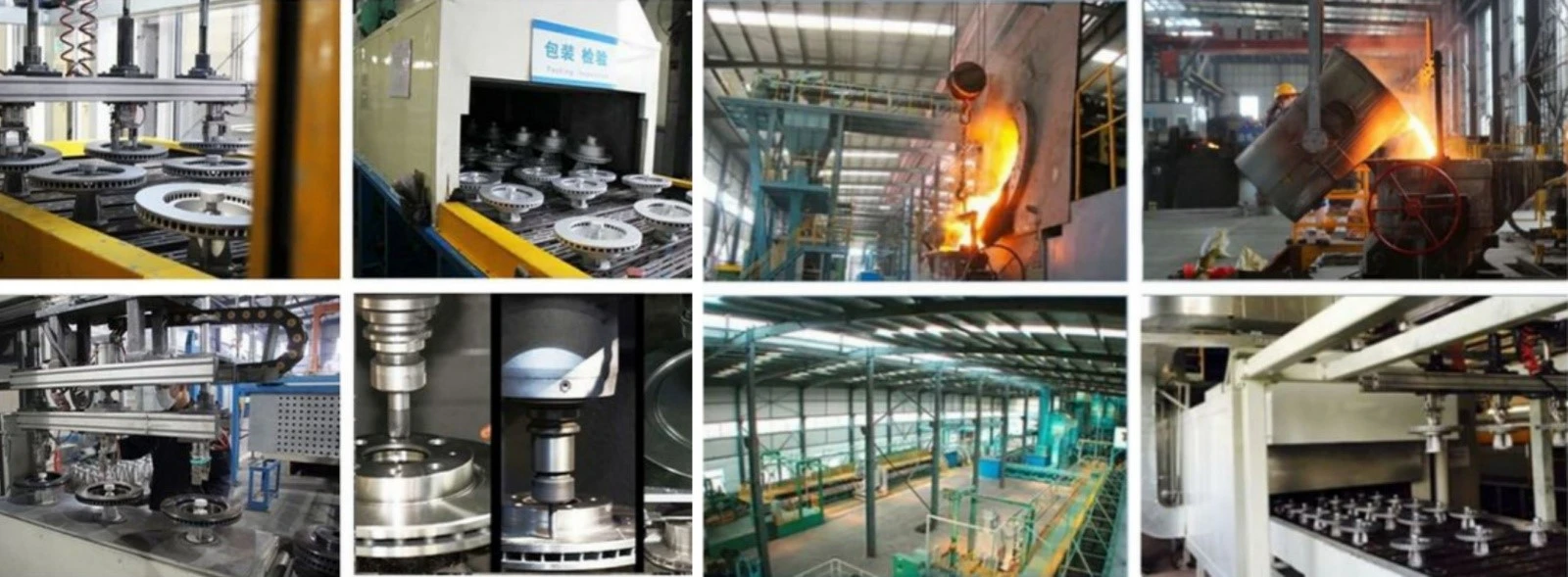

Stepping into the workshop that manufactures rear brake drums for Chevrolet Spark, Part No. 96470999, you truly grasp the depth of our craftsmanship.

On the production line dedicated to machining Chevrolet Spark rear brake drums, Part No. 96470999, we avoid flashy, superficial setups and adhere strictly to the principle of "single clamping, one-pass forming". The cast blanks are loaded onto CNC vertical lathes, where we first turn the inner cylindrical working surface, then back-bore the bearing mounting seats. This process ensures the coaxiality between the mounting datum and braking datum stays within 3 microns. The vibration-free pedal feel when you hit the brakes stems entirely from this meticulous step.

Apneumatic comparator is installed at the inspection station. First-piece inspections are carried out each shift, alongside random in-process sampling to monitor inner diameter dimensions and roundness. Any part deviating by merely a few hundredths of a millimeter is immediately rejected. Veteran technicians in the workshop maintain a log sheet recording the hardness of each cast iron batch; they fine-tune cutter spindle speeds based on hardness readings. This know-how comes from over a decade of hands-on experience, knowledge you cannot find in textbooks.

That is why every Chevrolet Spark rear brake drum, Part No. 96470999, rolling off our line achieves full-surface contact with brake shoes, generates no abnormal noise, and runs in quickly.

Whether it is auto parts distributors who purchase goods in bulk or retail stores that provide repair services, a major concern for those dealing with niche vehicle models is insufficient stock levels, slow replenishment, and difficulty in finding someone to handle after-sales issues. We have established a comprehensive service support system for Chevrolet Spark rear brake drums with part number 96470999, thereby helping customers avoid such problems. In terms of inventory, there is a dedicated stock warehouse for these brake drums at the factory in Shandong, ensuring an adequate supply of stock. Orders of smaller quantities can be shipped within 48 hours, while larger custom orders are delivered on schedule, preventing shortages or delays that could affect customers' business. We also use multiple layers of protection during packaging: each unit is first wrapped in OPP pearl cotton to prevent scratches on its surface during transportation, then placed in reinforced corrugated boxes. When shipped in bulk, wooden supports are used to add extra stability, effectively cushioning any impacts or pressures during transit. This ensures that the products arrive at the customer's location intact, whether shipped domestically or by sea. For international clients, we offer loading at the Qingdao port, and we can work with the client's preferred freight forwarder or utilize major shipping companies such as COSCO and Maersk to help reduce logistics costs and delivery times. Regarding after-sales service, Chevrolet Spark rear brake drums with part number 96470999 come with a 2-year or 80,000-kilometer warranty; any quality issues that are not caused by human error can be repaired or replaced free of charge. Our dedicated after-sales team responds to inquiries within 12 hours, providing assistance with everything from confirming compatibility and giving installation instructions to troubleshooting problems, so that customers never have to deal with unresponsive support.

Q: Will this brake drum with part number 96470999 fit both my 1.0L and 1.2L Spark models?
A: Yes, the power difference has no impact on the size of the rear drum brakes. As long as the vehicle came factory-equipped with drum brakes instead of aftermarket disc brake conversions, this Chevrolet Spark rear brake drum (Part No. 96470999) is a direct fit. The bearing inner bore and ABS sensor tone ring mounting position are produced from the same mold.

Q: If the inner diameter of the drum brake sinks in, do I still need to adjust the parking brake?
A: Before installing the Chevrolet Spark rear brake drum (Part No. 96470999), back off the shoe adjuster ratchet by two turns so the drum slides all the way on smoothly. Then tighten the parking brake and adjust the ratchet travel to factory specifications. The friction surface of a new drum is in its original factory condition. Once the parking brake engagement point is properly set, the foot brake will mostly work as intended with no major issues.

Q: Can I just replace only one side?
A: Strongly not recommended. Braking performance must be balanced between the left and right wheels. After fitting the new Chevrolet Spark rear brake drum (Part No. 96470999), its friction radius differs from the old drum, which will pull the steering wheel hard under heavy braking. Replace both sides together, and take the chance to inspect the wheel cylinder dust boots and brake shoe thickness for a complete, one-time repair.

In recent years, the global automotive braking industry has undergone many new changes. Many people consider drum brakes as outdated technology, but in fact, with the popularization of micro new energy vehicles, drum brakes are ushering in new application scenarios. The technical route of rear drum brakes for micro vehicles represented by the Chevrolet Spark Rear Brake Drum (Part Number: 96470999) is also continuously upgrading and optimizing in line with industry trends.

According to the 2026 Global Drum Brake Market Report, with the widespread adoption of electric vehicle regenerative braking systems, the frequency of rear wheel braking usage has significantly decreased, and the previous wear failure has gradually shifted to corrosion failure. The enclosed structure of drum brakes can better isolate moisture and sediment, reducing rust on braking components. At the same time, it can collect brake dust, meeting the requirements of the upcoming Euro 7 particulate emission regulations. For this reason, more and more micro new energy vehicle models are re-adopting rear drum brake configurations, and the technological research and development of drum brakes has begun to move towards the direction of sealing, low maintenance, and high corrosion resistance. The surface anti-rust process of the Chevrolet Spark Rear Brake Drum (Part Number: 96470999) is precisely in line with this industry trend.

In daily use of the Chevrolet Spark Rear Brake Drum (Part Number: 96470999), mastering a few tips can effectively extend its service life. Firstly, most Spark vehicles are used for short-distance urban commuting. The brake drums are in a low-temperature state for a long time, making it difficult for moisture to evaporate, so they are more prone to rust than vehicles frequently driven on highways. It is recommended to gently step on the brakes several times on a safe road section after rainy seasons or wading to dry the moisture inside the drum using the heat generated by braking, avoiding rust on internal components. Secondly, perform regular inspections of the braking system every 15,000 kilometers to clean the friction dust inside the brake drum. The internal space of micro vehicle brake drums is small, and excessive dust accumulation can easily affect the return of the brake shoes and accelerate wear. At the same time, check the inner surface of the brake drum for abnormal grooves and rust spots; addressing minor issues early can avoid greater losses. Thirdly, try to avoid frequent sudden braking. For long downhill sections, it is recommended to use engine braking to assist in deceleration, reducing the continuous high-temperature load on the brake drums. Do not wash the car immediately after continuous braking, as sudden cooling of high-temperature brake drums can easily cause deformation, which may lead to brake jitter problems later.
