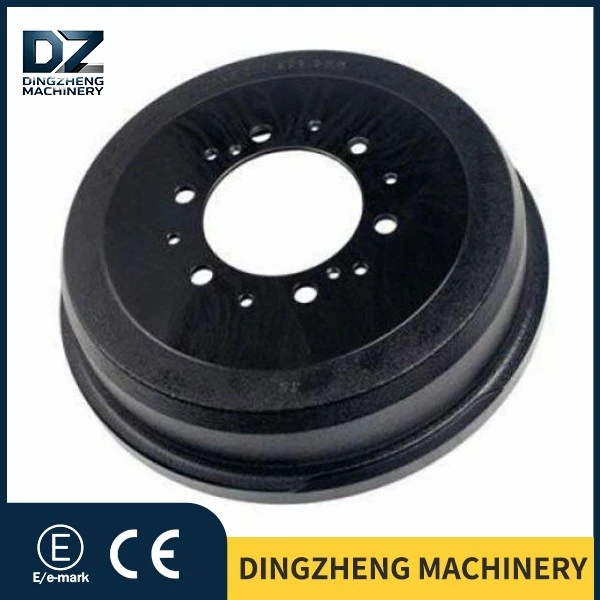

Toyota Fortuner Off Road Vehicle Brake Drum

The Toyota Fortuner is known as "Fortuner" in Southeast Asia, "Prado" in Australia, and it can be seen everywhere in the Middle East. This vehicle shares its chassis with the Hilux pickup truck; it features a frame, a rear solid axle, and drum brakes at the rear. It's not that Toyota is cheap – it's simply because drum brakes are more durable in situations involving mud, water, or heavy loads, and they're less likely to get clogged by stones compared to disc brakes.

However, drum brakes also have their shortcomings: they are made of cast iron, which makes them susceptible to rust, uneven wear, and performance degradation due to heat. Original parts are expensive, while alternative parts vary in quality. Our part with the code 42431-35110 was developed to address these issues – it may not be the cheapest option, but it certainly offers the closest quality to that of original parts, plus an additional layer of rust protection.

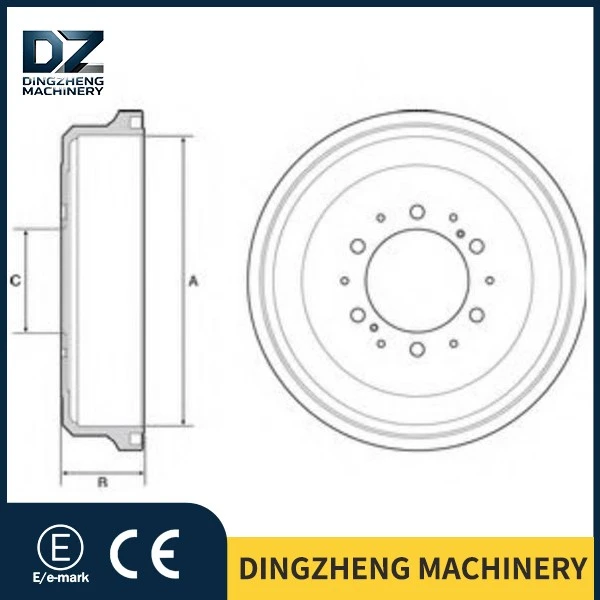

There are different corresponding codes for the Rear Brake Drum of Toyota Fortuner off-road vehicle 4243135110

Gravel flies, muddy water soaks surfaces and saline-alkali corrosion occurs on off-road trails. Ordinary paint coatings get scratched up after just one trip, and rust soon develops starting from chipped paint areas. We have customized a dual-layer composite anti-corrosion coating system consisting of zinc-aluminum permeable primer and stone-resistant epoxy topcoat for brake drums of Toyota FJ Cruiser off-road vehicles, specially engineered for harsh off-road conditions and far more durable than the factory's standard spray paint.

The first step is applying the zinc-aluminum permeable primer, which forms a dense zinc-aluminum protective film on cast iron surfaces. Even if the topcoat is chipped off by gravel, the primer continues to prevent rust and stops the substrate from being quickly corroded through. The second step involves spraying high-adhesion stone-resistant epoxy topcoat cured at a high temperature of 155°C. This paint film boasts excellent toughness and hardness, so small stones kicked up on the trail rarely chip the coating or leave dents. The total thickness of the full coating system ranges from 19 to 23 micrometers, and it withstands 115 hours of salt spray testing, offering protection against desert saline-alkali environments, humid coastal climates, and winter de-icing agents.

All coatings are only applied to non-friction zones such as the outer wall and mounting base of the drum, with the core friction working surface left completely uncoated. This has zero adverse impact on brake heat dissipation and friction coefficient. Simply put, no matter how rough the off-road driving conditions are, the paint coating resists scratching and the drum body avoids rusting easily, delivering a service life more than double that of components with conventional spray paint.

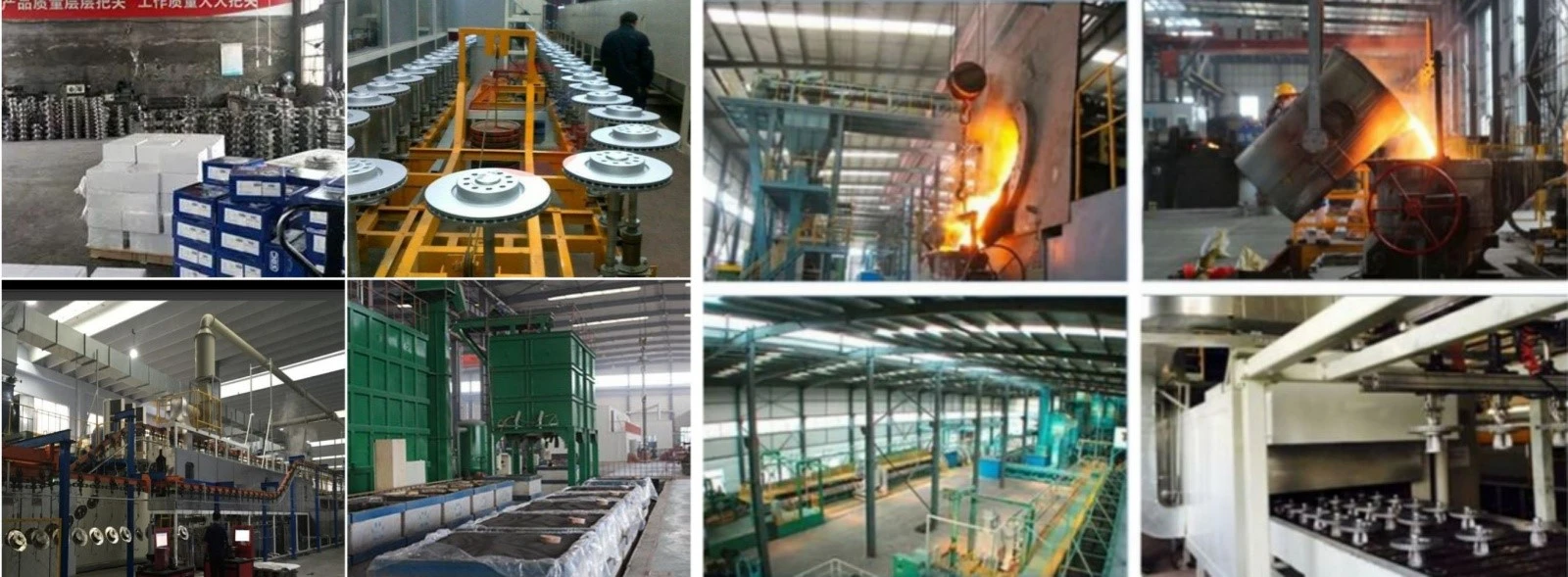

We are not a small workshop that casts products and sells them right away. Every brake drum entering our workshop undergoes rigorous checks like students sitting for an exam, and only those passing all procedures can be released:

Spectroscopic Testing Before Melting Furnace – If the molten iron composition fails to meet standards, it is poured back into the furnace for remelting without casting or compromise.

Natural Aging After Casting – The rough castings are left untouched and rest on-site for at least 48 hours to allow partial release of internal stress. This is similar to concrete curing and canno be rushed.

Annaling Treatment – Entire batches are sent into heat treatment kilns with slow temperature rises and falls following a set curve to fully eliminate residual internal stress generated during casting. If this step is improperly executed, frequent temperature fluctuations while driving will easily cause the brake drum to deform later on.

CBN Hard Fine Boring Process – For the thick-walled heavy-duty brake drums designed for the FJ Cruiser, we reject repeated clamping on ordinary lathes. Instead, cubic boron nitride (CBN) cutting tools are adopted to machine the inner wall, end faces and mounting holes in a single clamping setup. Secondary clamping would introduce positioning errors, a risk we completely eliminate. The concentricity error is strictly controlled within 0.04 mm. To put this figure into perspective: brake shoes fit the drum wall as evenly as a pair of well-fitted shoes. Even when driving over bumps at high speeds or braking sharply on sand, the steering wheel will not vibrate violently. Braking force is delivered linearly without jitter or nose-dive, perfectly matching the original off-road braking tuning feel of the FJ Cruiser.

Surface Fineness – CBN cutting tools rank second only to diamond in hardness and boast exceptional wear resistance. The machined inner wall maintains a consistent smoothness of Ra ≤ 0.7 μm with no machined metamorphic layer on the surface. In simple terms, the surface will not suffer thermal burn or plastic deformation, preserving the original material properties and delivering far superior wear resistance compared to conventional turning. Even if fine sand gets trapped during off-roading, deep scratches are unlikely to form.

Dynamic Balance Testing – Every drum undergoes on-machine dynamic balance testing, with residual unbalance limited to ≤30 g·cm. Any unit exceeding this threshold is reworked to eliminate hidden hazards for vehicle installation. Vibration during off-road braking hinges on the roundness of the machined brake drum, and we make zero compromises at this stage.

Full-Dimensional Final Inspection – Calipers, internal micrometers and dial indicators are used sequentially to measure inner and outer diameters, concentricity and end face runout. Any drum failing a single dimensional standard is scrapped immediately, with no warehousing or delivery permitted.

This heavy-duty rear brake drum is compatible with the Toyota FJ Cruiser, with the part number 4243135110. It is covered by a manufacturer's warranty valid for up to 80,000 kilometers or 12 months from the date of purchase, with the warranty terminating upon the occurrence of either limit. This product complies with Toyota's original factory brake system specifications and has successfully passed corresponding validation. Additionally, it has undergone thousands of durability tests specifically designed for exclusive off-road use scenarios, including continuous sand driving in desert environments, repeated braking on long mountain downhill sections, and shallow water crossing operations. The warranty covers all manufacturing quality defects, including inherent metallurgical defects, casting imperfections, dimensional processing deviations, ex-factory deformation, and coating process abnormalities.

This product is exclusively developed for standard off-road applications under original factory specifications. The warranty does not cover drum deformation, thermal cracking, coating peeling, or excessive wear caused by extreme operations and improper use. Exempted scenarios include extreme rock crawling involving airborne jumps, high-speed dune climbing in deserts, deep water crossing exceeding the marked warning water level, unauthorized modification with over-sized tires and wheel hubs, replacement with non-original equipment manufacturer brake shoes, and immediate cold water flushing immediately after high-temperature braking.

Q1: Can brake drum part number 4243135110 withstand the high-temperature conditions of continuous sand driving during desert crossings in an FJ Cruiser?
A1: Absolutely. Molybdenum and copper alloys are specially added to the material of this drum, giving it far superior high-temperature strength and thermal fatigue resistance compared to ordinary gray cast iron, alongside a higher heat capacity. It resists brake fade and thermal cracking effectively during repeated braking on long desert downhill sections. Additionally, its inner wall features high-precision machining. Even if fine sand gets inside, deep scoring grooves are unlikely to form, and the drum can be reused after routine cleaning, making it perfectly suited for desert off-roading.

Q2: Is this brake drum compatible with FJ Cruiser models equipped with a rear differential lock?
A2: Fully compatible. The hole positions, inner diameter and mounting dimensions of 4243135110 strictly match Toyota's original factory specifications. It can be installed directly without modifications whether the rear axle has a differential lock or not, with no interference to the lock's normal operation. Its braking performance post-installation is identical to OEM components.

Q3: The FJ Cruiser frequently undergoes off-road water crossings. What maintenance steps can extend the service life of this brake drum?
A3: First, avoid speeding through water crossings; sudden cold water splashing onto the hot drum body may cause deformation. After crossing water, drive several kilometers at low speed while lightly applying the brakes to evaporate residual moisture inside the drum and prevent internal rust. Promptly clear sand and mud trapped in drum seams after off-roading, inspect the outer coating for chipping from gravel impacts, and touch up exposed bare metal with anti-rust paint-these steps will significantly prolong its service life.

Entering 2026, the global cross-border brake parts market is undergoing a structural adjustment driven by both policies and demand. It is no longer purely about volume growth; compliance, adaptation accuracy, and working condition adaptability have become the core criteria for overseas buyers in product selection. At the policy level, the EU Euro 7 emission standards officially took effect in July 2026, incorporating brake particle emissions into regulatory scope for the first time. This requirement is gradually spreading from the original equipment manufacturing (OEM) market for new vehicles to the aftermarket replacement sector. Major European wholesalers have begun selecting brake parts with low dust emissions, high wear resistance, and compliant surface processes. Low-end products with traditional simple spraying and substandard materials are accelerating their withdrawal from formal channels, while the premium space for products with compliant coatings and stable wear resistance continues to expand.

From the perspective of purchasing behavior, the ordering logic of overseas B-end customers is also undergoing significant changes: the past model of bulk stockpiling to force price reductions is continuously shrinking, and flexible replenishment with small batches, multiple SKUs, and high frequency has become the mainstream. Especially for classic off-road models such as the Toyota FJ Cruiser, the demand growth for replacement parts with precise OE number matching and working condition-oriented enhancement far outpaces that of universal parts. Overseas off-road modification shops and independent repair workshops are more willing to pay a premium for "vehicle-specific, durable and rugged" products. Meanwhile, in markets with a high concentration of hardcore off-road vehicles such as the Middle East, Australia, and Africa, the requirements for brake drums in terms of corrosion resistance, impact resistance, and heavy-load performance are continuously escalating. Ordinary passenger car-grade brake drums can no longer meet the local off-road working condition needs, and the market share of heavy-load enhanced products is increasing year by year.

The industry's entry threshold is also continuously rising. IATF16949 certification, 100% inspection delivery reports, and product traceability systems have become standard requirements for entering mainstream wholesale channels. The living space for scattered factory products without qualifications and quality inspections is being continuously compressed. Our 4243135110 heavy-duty brake drum exclusively for the Toyota FJ Cruiser, from copper-molybdenum reinforced materials and CBN precision machining to zinc-aluminum composite anti-corrosion coatings, fully complies with the latest industry compliance standards. It supports small minimum orders and full-item quality inspection and traceability, perfectly aligning with the new purchasing trends of the cross-border auto parts market in 2026. It is a cost-effective cooperation option for overseas off-road parts distributors and terminal repair stores.
