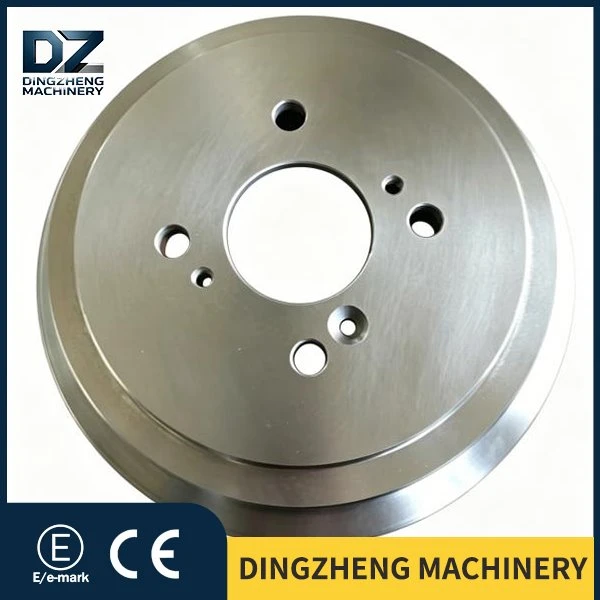

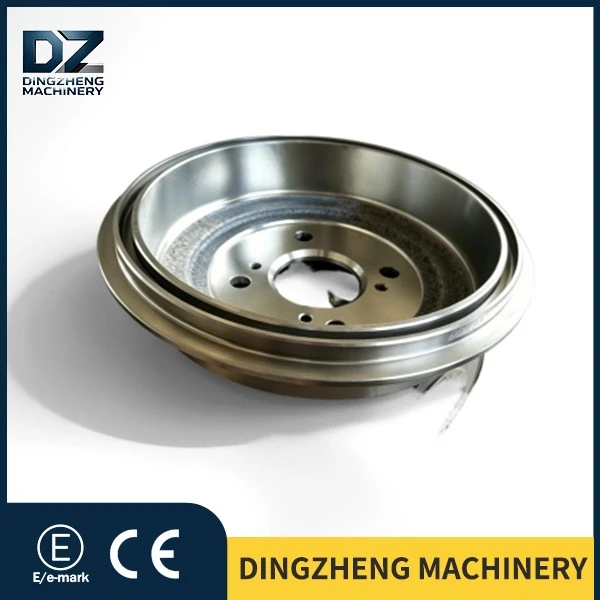

Toyota Land Cruiser SUV Break Drum

The Land Cruiser speaks for itself to those in the know. Its curb weight alone exceeds 2.5 tons, and when fully loaded with gear, towing a caravan or hauling a full load of supplies, its total weight can easily surpass 3.5 tons. If the rear brake drums fail to withstand such loads, the consequences can be severe.

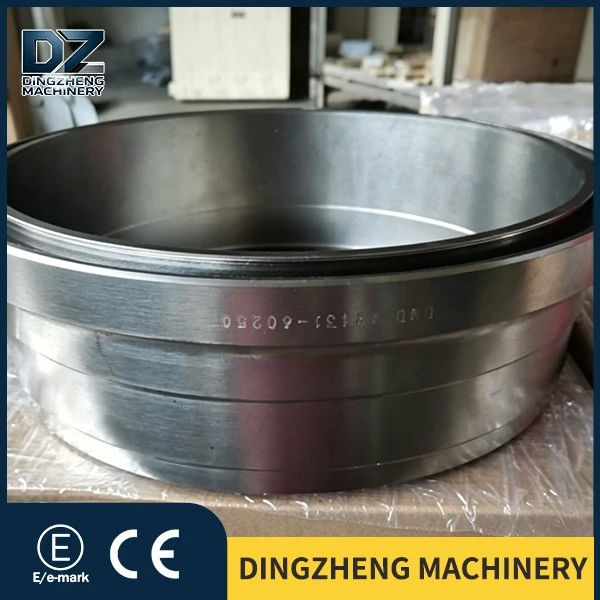

This Rear Brake Drum of Toyota Land Cruiser SUV break drum 4243160250 is cast from GG20 grey cast iron, with a hardness ranging from 150 to 230 HB and a tensile strength of no less than 200 MPa. Simply put, it boasts sufficient hardness and toughness to withstand repeated heavy braking. Additionally, GG20 is renowned for superior thermal conductivity among materials of the same grade-during braking, heat transfers rapidly from the friction surface into the drum body before dissipating through the outer wall.

Moving on to heat dissipation: the Land Cruiser adopts a traditional full cast iron drum brake design fitted with cooling ribs on the outer wall. Though the design appears unadorned, it delivers exceptional reliability. When driving down long continuous downhill slopes, over washboard roads or through desert terrain with frequent braking, the brake pedal will never suddenly feel spongy, as thermal fade is tightly controlled. This explains Toyota's consistent use of rear drum brakes on the 70 Series-they are rugged, long-lasting and adaptable to all road conditions.

Another easily overlooked factor is wear allowance. The nominal inner diameter measures 295 mm, with the maximum permissible wear limit at 295.4 mm, leaving approximately 0.4 mm of usable service life. Keep this figure in mind: measure the inner diameter during every maintenance service, and replace the drum once it hits the wear limit instead of relying on guesswork.

Toyota Land Cruiser SUV (_J7_) Mar 1984–
Toyota LAND CRUISER Pick-up (_J7_, _JL7_) 1984/11-

There are different corresponding codes for the Toyota Land Cruiser SUV break drum 4243160250

On off-road trails, flying gravel, mud immersion and saline-alkali corrosion quickly mar ordinary paintwork, which soon develops rust starting from chipped areas. We customized a dual-layer composite anti-corrosion process featuring zinc-aluminum primer plus stone-resistant epoxy topcoat for part number 4243160250, engineered exclusively for harsh off-road conditions and far more durable than the factory standard single-coat paint.

The first step is applying a penetrating zinc-aluminum primer that forms a dense protective film on cast iron surfaces. Even if flying stones chip off the topcoat, the primer continues to prevent rust and stops rapid substrate perforation from corrosion. The second step involves spraying a high-adhesion stone-resistant epoxy topcoat cured at 160°C, delivering exceptional coating toughness and hardness to resist chipping and indentation from roadside gravel impacts. The total thickness of the complete coating system ranges from 20 to 24 micrometers, with a salt spray resistance rating of 120 hours, offering reliable protection against desert saline-alkali environments, coastal humidity, and winter road de-icing agents.

All coatings are only applied to non-friction areas including the brake drum outer wall and mounting base, leaving core friction surfaces entirely uncoated to avoid any negative impact on brake heat dissipation and friction coefficient. In short, the paint finish resists scratching even under severe off-road abuse, the drum body stays rust-free, and its service life is more than double that of components finished with conventional paint.

Whether the brakes shake during off-roading hinges entirely on how perfectly round the machined brake drums are. For these heavy-duty thick-walled brake drums designed for Land Cruisers, we skip repeated clamping and machining on conventional lathes and adopt hard-state fine boring technology with CBN (Cubic Boron Nitride) cutting tools. Complete full-profile machining of the inner wall, end face and mounting holes in a single clamping setup to eliminate positioning errors caused by secondary re-clamping, delivering exceptional concentricity accuracy.

Featuring ultra-high hardness, CBN cutting tools yield an ultra-smooth inner wall surface with a consistent roughness of Ra≤0.65μm, free of surface metamorphic layers. The finished surface boasts far superior wear resistance compared to standard turning workpieces, so fine sand encountered off-road will barely score deep grooves on the drum surface. The concentricity tolerance of finished products is controlled within 0.04mm, enabling perfectly uniform contact between brake shoes and drum walls. Even when applying brakes at high off-road speeds, steering wheel vibration is eliminated. Brake force is delivered linearly without intermittent jerking, fully matching the original factory off-road brake tuning feel of Land Cruisers.

Shipping Instructions: 【Toyota 4243160250】Rear Brake Drum Exclusive for Land Cruiser. The net weight of a single unit is 10.8kg, and the total weight of a set of two pieces is approximately 22.5kg. Each item is fully wrapped with thickened seven-layer corrugated cartons and custom foam corner protectors, with special protection for the mounting surfaces and drum edges to prevent dents, deformation, paint peeling and scratches during long-distance cross-border transportation. We accept freight forwarders designated by global foreign trade clients. The standard production and delivery lead time is 30 to 42 working days upon order confirmation.

Q1: Can brake drum 4243160250 withstand high-temperature conditions during continuous sand dune driving in desert crossings?
A1: Absolutely no problem. Molybdenum and nickel alloys are specially added to the material of this drum, delivering far superior high-temperature strength and thermal fatigue resistance compared to ordinary gray cast iron, alongside a large heat capacity. Thermal fade and thermal cracks are unlikely to occur under continuous braking on long desert downhill slopes. Additionally, its inner wall boasts high machining precision. Even if fine sand gets inside, deep grooves are unlikely to form from abrasion, and the drum can be reused after routine cleaning, making it highly suitable for desert off-road scenarios.

Q2: Is this brake drum compatible with the Land Cruiser HZJ79 equipped with a rear differential lock?
A2: Fully compatible. The hole positions, inner diameter and mounting dimensions of 4243160250 fully match Toyota's original factory specifications. It can be directly installed without any modifications whether the rear axle is fitted with a differential lock or not, and will not interfere with the normal operation of the differential lock. After installation, its braking performance is identical to original factory parts.

Q3: How should this brake drum be maintained after deep-water off-road wading to extend its service life?
A3: First of all, avoid speeding through water during wading to prevent cold water from splashing directly onto the hot drum body and causing deformation. After wading, drive a few kilometers at low speed and gently apply the brakes to evaporate moisture trapped inside the drum and stop internal rusting. Promptly clear sand and mud lodged in the drum seams after returning, inspect the outer surface coating for chipping caused by gravel impact, and touch up exposed metal areas with anti-rust paint. These steps will greatly extend its service life.

The global brake drum market size stood at approximately USD 9.84 billion in 2025, and is projected to reach USD 12.52 billion by 2034, with a compound annual growth rate (CAGR) of around 3%.

The global automotive brake drum market was valued at roughly USD 3.26 billion in 2025, and is expected to keep expanding at a CAGR of 3.2%.
Its growth is driven by two major factors: first, the continuous rise in the global vehicle parc; second, steady aftermarket replacement demand.

For hardcore off-road vehicles such as the Land Cruiser, rear brake drums are high-frequency wearing parts. Owners who frequently drive on rough roads, wade through water or carry heavy loads need to replace them every 60,000 to 80,000 kilometers. The Land Cruiser 70 Series boasts a huge global vehicle parc, which sustains consistent market demand for the 42431-60250 brake drum.

Another emerging trend is the regionalization of supply chains. Fluctuating ocean freight rates and growing uncertainties over delivery lead times over the past few years have prompted an increasing number of buyers from North America, Australia and the Middle East to source high-quality stable replacement parts directly from China. Distance becomes irrelevant as long as the products feature reliable quality and dependable delivery. Our goal is to deliver the same hassle-free purchasing experience you would get from local suppliers when sourcing from China.

One noteworthy development is that coating technology is becoming a standard feature for brake drums. Previously, brake drums were regarded as simple mechanical components whose sole function was to deliver effective braking performance. However, end-users now pay far more attention to durability and maintenance convenience. Coated rust-proof brake drums allow easier disassembly and assembly and offer a longer service life, making repair shops and vehicle owners willing to pay a premium for coated variants.
