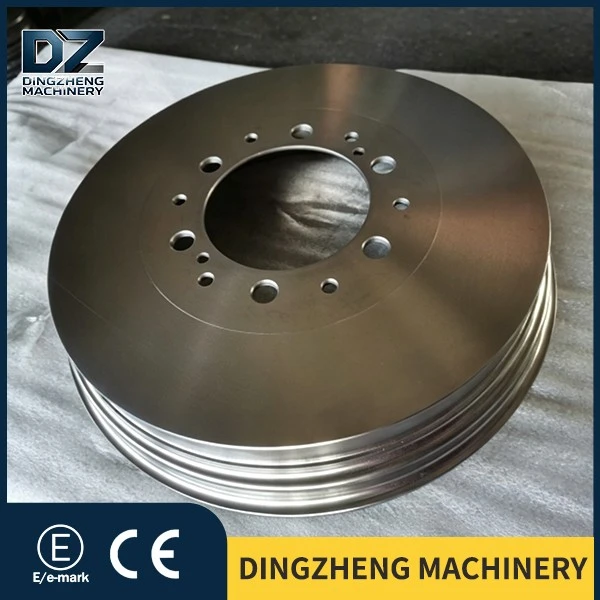

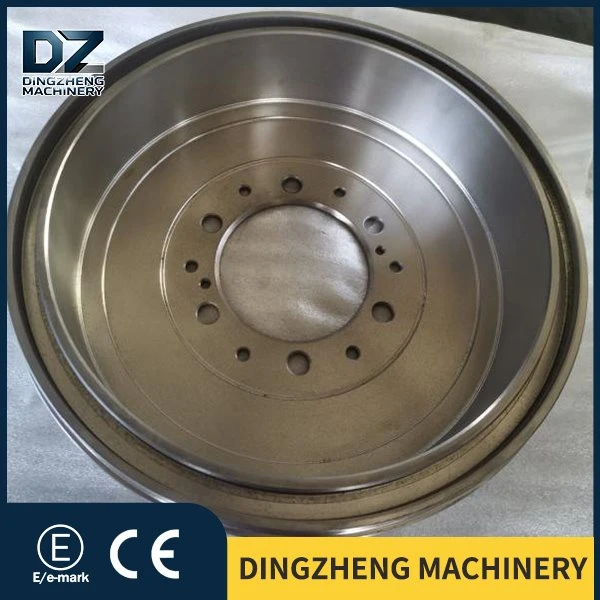

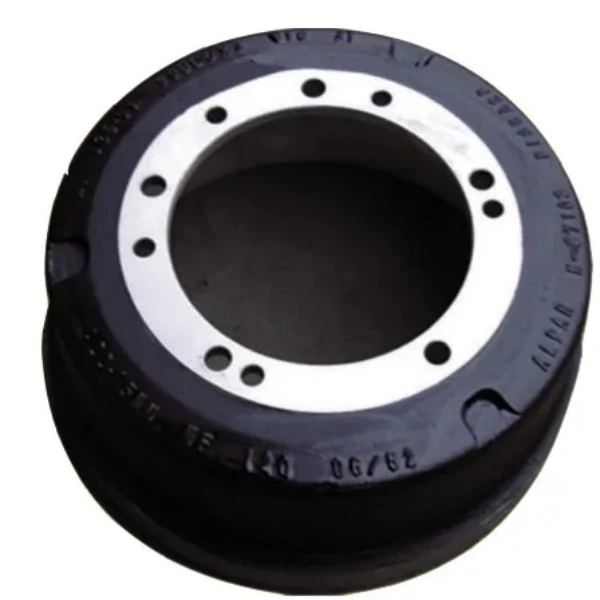

Toyota Import Corolla Brake Drums

• Standard inner diameter of brake drum: 295mm / Safe wear limit inner diameter: 297mm / Overall installation height of drum body: 83mm
• Number of mounting holes: 6+6+2 holes / Bolt pitch PCD: 139.7mm / Central positioning hole diameter: 71mm / Net weight per unit:11.7 kg / Structure type: Integrated precision dense cast iron non-ventilated brake drum
• Normal operating temperature resistance: 450℃ / Original factory compliant material: Refined HT250 pearlitic cast iron / Factory geometric tolerance: Radial runout ≤ 0.032mm.

This Rear Brake Drum of Imported Toyota Motor Vehicles COROLLA 424310K180.These are original replacement parts designed specifically for the imported Toyota Corolla, a sedan used for household and commuting purposes. Unlike off-road SUVs and heavy-duty pickups that are subject to high-stress operating conditions, the Corolla is primarily used in urban traffic, for short-distance travel, daily city driving with frequent starts and stops, and low-speed parking. It is driven frequently, but the braking load is moderate; therefore, the key requirements for its braking system are smooth performance at low speeds, quiet operation without noise, resistance to rust during long-term storage, and linear and stable braking feedback. Most braking problems in household sedans stem from insufficient precision of the components or poor corrosion resistance: ordinary aftermarket brake drums have rough manufacturing processes and uneven inner surfaces, which can lead to issues such as unusual noises when braking at low speeds, sluggish braking feedback, and uneven braking force between the left and right sides. Additionally, due to the simple painting process, these drums are prone to moisture-induced rust and buildup after being left outdoors for long periods or used in rainy conditions, thereby reducing the lifespan of the braking assembly. Our 424310K180 brake drum is manufactured in strict accordance with Toyota's standards for household sedan brakes, and its production process is optimized for the specific needs of the Corolla, including frequent low-speed starts and stops, stable braking at normal temperatures, and long-term static storage. It features high precision fitting, low-noise braking, and excellent rust resistance, and it fits perfectly with the original brake pads, parking brake cables, and rear brake calipers. It allows for the replacement of the old, worn-out, or rusted original brake drums without any damage, restoring the original comfortable braking experience.

Toyota (Imported) COROLLA (_E12_) 2.0 D-4D (CDE120R, CDE120L_) 2003-2007
Toyota (Imported) HILUX VIII Platform/Chassis (_N1_) 2.4 D (GUN112_, GUN122_, GUN135_) 2015-

There are different corresponding codes for the Rear Brake Drum of Imported Toyota Motor Vehicles COROLLA 424310K180

As a vehicle for household use, the Toyota Corolla is often parked outdoors for extended periods and travels frequently on wet roads during rainy days. As a result, its brake components are constantly exposed to moisture, road dust, and trace amounts of salt, which can easily cause problems such as peeling paint, pitting, and buildup that leads to malfunctioning brakes. For the rear brake drums of imported Toyota Corollas with part number 424310K180, we have developed a specialized four-stage electrostatic, constant-temperature anti-corrosion painting process. Compared to the standard painting method used by the manufacturer, this process offers improved weather resistance, rust prevention, and adhesion, making it ideal for vehicles used in everyday commuting situations.

The first step involves ultrasonic cleaning to remove all residual cutting oils and metal particles from the surface, thereby preventing potential issues like paint peeling or flaking. The second step entails applying an epoxy sealant that fills the microscopic pores in the cast iron, preventing moisture from penetrating the material and thus stopping the formation of rust at its source. The third step consists of applying a high-adhesion anti-rust coat that enhances the durability of the paint surface and protects it against minor impacts from stones and debris. Finally, a matte, weather-resistant topcoat is applied; it cures at a constant temperature of 138°C, resulting in a smooth, dense paint surface with excellent adhesion – no cracking, yellowing, or peeling occurs.

This entire painting process covers only the outer surface of the drum, its mounting base, and the non-friction areas along the edges, without affecting the brake's cooling efficiency or friction coefficient. Tests show that the drum can withstand continuous salt spray exposure for up to 98 hours, which is 72% better than the standard anti-corrosion performance offered by the manufacturer. This makes it capable of withstanding the typical conditions encountered in household use, such as humid weather during the rainy season, urban dust, and mild salt spray in coastal areas. With long-term use, there is no risk of rust or paint peeling, thus extending the lifespan of the brake drums and reducing the need for frequent repairs on household vehicles.

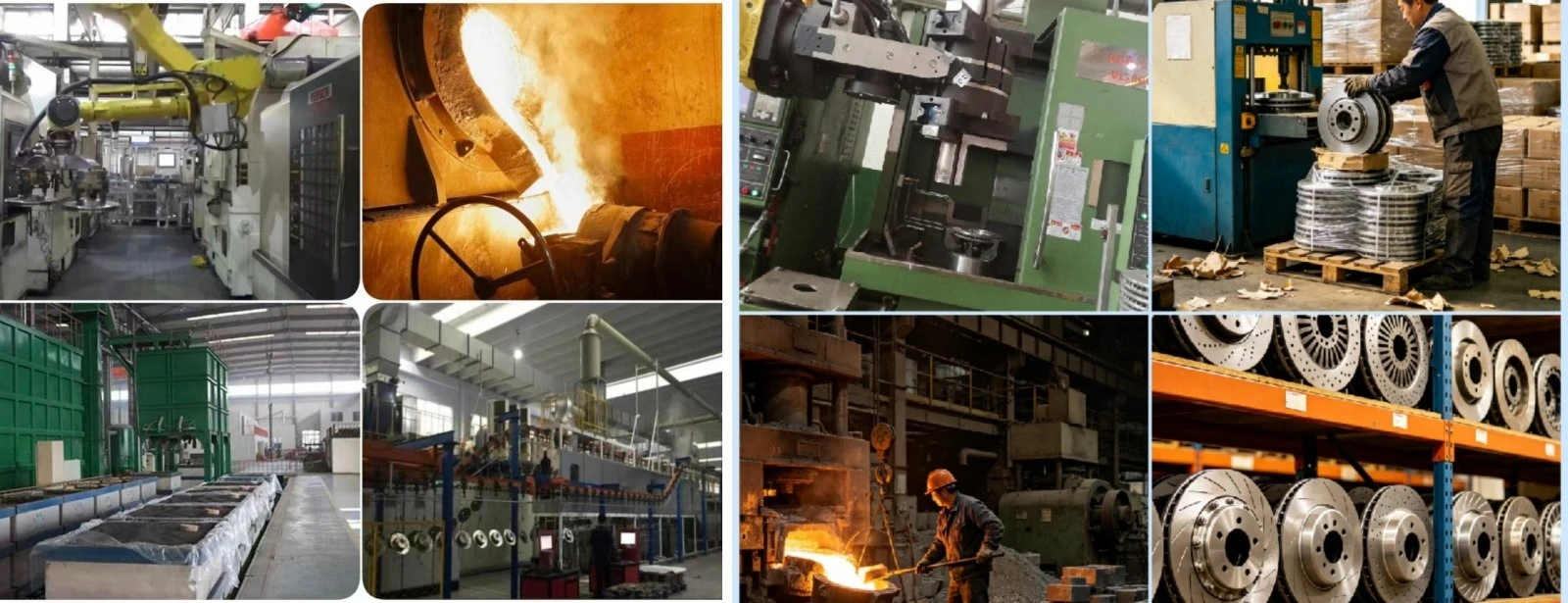

Core Production Advantages of the Precision Casting Workshop
Our precision casting workshop for passenger cars in the East China region has been dedicated to the production of lightweight braking components for household cars for many years. Taking into account the characteristics of the 424310K180 Corolla braking drums-thin walls, high precision, and minimal deformation-we utilize a fully automated vacuum precision sand casting process. This approach effectively eliminates common issues in household braking drums such as surface porosity, tiny air holes, and uneven wall thickness.

Throughout the production process, a real-time elemental calibration system is used in conjunction with the furnace, allowing for precise control over the grain structure of HT250 cast iron. This prevents the use of coarse-grained cast iron, ensuring that the braking drums maintain both wear resistance and fatigue resistance even under normal commuting braking conditions. As a result, there is no uneven wear on the surface or rapid localized damage due to frequent low-speed starts and stops. After casting, all blanks undergo 48 hours of controlled temperature aging to gently release internal stresses, meeting the high precision requirements for household components and preventing minor deformations or misalignment over time. Finally, a thorough closed-system shot blasting and polishing process removes all oxidation layers and fine impurities from the surface of the cast iron, resulting in a uniform and dense surface that provides a solid foundation for subsequent precision machining and multi-layer anti-corrosion painting. This ensures smooth and stable braking performance for household vehicles from the very beginning.

Process Advantages of the Precision Machining Workshop
The quietness and smoothness of braking in household cars depend entirely on the micron-level precision of the braking drums. For the specific structural features of the 424310K180 Corolla braking drums, we employ a CNC-based three-stage precision boring process combined with mirror-polishing of the end surfaces. This method differs from the rough machining techniques used for heavy-duty components, as it is designed to optimize braking comfort for urban commuting.

The processing is carried out in a single clamping operation, eliminating positioning errors that can occur with multiple clampings. The four steps-removing excess material, rounding the inner walls, polishing to a mirror finish, and leveling the end surfaces-are completed in stages, with constant low-speed precision cutting to avoid fine surface defects caused by vibrations. The roughness of the friction surface is precisely controlled to Ra≤0.62μm, while the overall concentricity error is kept within 0.032mm. This high level of precision ensures that the braking pads fit the drum walls with 99.5% accuracy, effectively solving common problems such as noisy braking at low speeds, slight slipping when parked, and a soft braking feel in Toyota Corollas. As a result, braking during daily commuting is smooth and linear, meeting the demands for comfort and quietness in household vehicles.

Quality warranty: The rear brake drums for this model – the 【Imported Toyota Corolla sedan | Part number: 424310K180】 – are covered by an official manufacturer warranty of 80,000 kilometers or 12 months. These components meet Toyota's specifications for passenger vehicle braking systems, and they have undergone multiple rounds of durability testing tailored to the specific conditions associated with frequent starting and stopping in urban areas, low-speed commuting, and long-term parking in the Corolla. The warranty covers a wide range of manufacturing-related defects, including issues such as inherent metallurgical defects, casting flaws, dimensional inaccuracies, deformation upon leaving the factory, and defects in the painting process.

Exclusive exclusions: This product is designed to comply strictly with Toyota Corolla's original specifications for use in urban driving conditions. It is only suitable for use on regular city roads. Any deformation of the brake drums, damage to the paint, excessive wear, or braking issues resulting from improper use or installation mistakes – such as unauthorized modification of the brake pads, use of non-original parking mechanisms, failure to tighten components according to the specified torque, aggressive off-road driving, exposure to deep water, physical damage, or rinsing the brakes with cold water immediately after use due to high temperatures – are not covered under the official warranty.

Q1: Is the 424310K180 brake drum fully compatible with all models of the imported Toyota Corolla from 2010 to 2018?
A1: This OE model is perfectly suitable for all two-wheel-drive versions of the imported Toyota Corolla models ZRE142 and ZRE152 from 2010 to 2018. Its hole patterns, inner diameter, installation dimensions, and chassis specifications all match the original factory standards, allowing for direct replacement without any issues. It is not compatible with domestic Corolla models, four-wheel-drive versions, or other Toyota vehicles; it is advisable to check the vehicle's chassis model and year before making a purchase.

Q2: Will this anti-corrosion coating affect the braking efficiency and noise reduction capabilities of the Corolla when braking at low speeds?
A2: It will not have any negative impact. The anti-corrosion coating covers only the outer surface of the drum and the mounting base – areas that are not involved in friction – leaving the actual braking surface uncovered so that heat can dissipate properly. The coating is resistant to high temperatures and durable, meaning that normal braking during daily commutes will not cause the coating to soften or stick together. It is fully compatible with the Corolla's original settings for quiet braking at low speeds.

Q3: How can the lifespan of the 424310K180 brake drum be extended, given the frequent starting and stopping that occurs during urban commuting?
A3: Try to apply gentle, anticipatory braking during normal driving to reduce wear caused by frequent hard brakes. Before parking the vehicle for an extended period, gently press the brakes to remove any dust from the braking surfaces, preventing moisture from causing rust. After driving in rainy conditions, brake at low speeds to dry out any moisture inside the braking system, which helps to reduce the risk of rust and buildup and thus extends the product's lifespan.

In 2026, the global export market for spare parts for compact household cars is expected to continue growing steadily. The Toyota Corolla, being one of the most widely used household vehicles worldwide, generates a constant demand for replacement parts for its older models abroad. At present, purchasing priorities among overseas auto repair shops and spare parts wholesalers have changed; they no longer focus solely on low prices, but rather prefer high-quality replacement parts that are precise, quiet in operation, resistant to rust, compatible with original equipment, and meet all regulatory requirements. The market for low-quality substitute parts with poor craftsmanship, low precision, and high susceptibility to rust is continuing to shrink. Meanwhile, many countries around the world have tightened the standards for importing spare parts for household cars, imposing stricter requirements regarding the dimensional tolerances of braking components, anti-rust treatments, material compliance, and the quality of factory inspection reports. Products that do not meet these standards cannot pass customs clearance. Our product 424310K180, a brake drum specifically designed for the Toyota Corolla, is optimized for use in household commuting applications. It offers higher precision than original parts, improved anti-rust properties, and smoother braking performance. It fully complies with the regulatory standards for cross-border auto spare parts as of 2026, and its excellent cost-performance ratio makes it an ideal choice for overseas spare parts wholesalers and repair shops.
