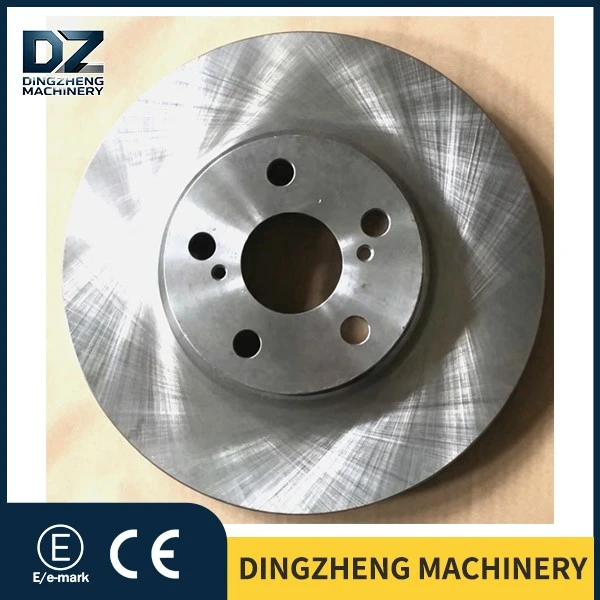

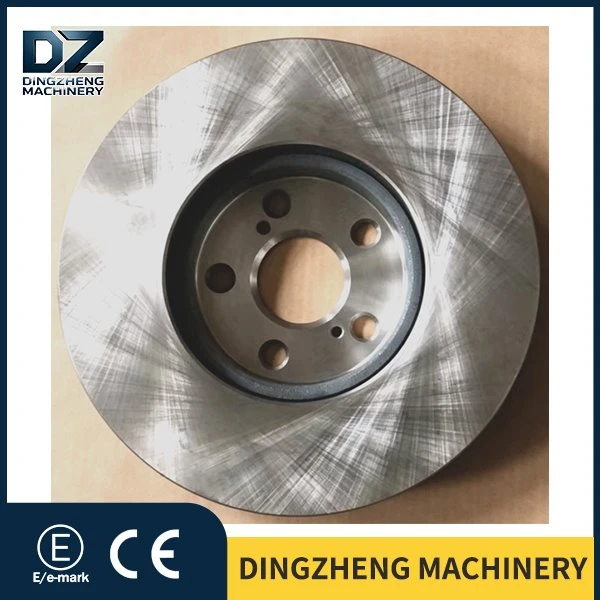

Toyota Urban Cruiser Front Brake Disc

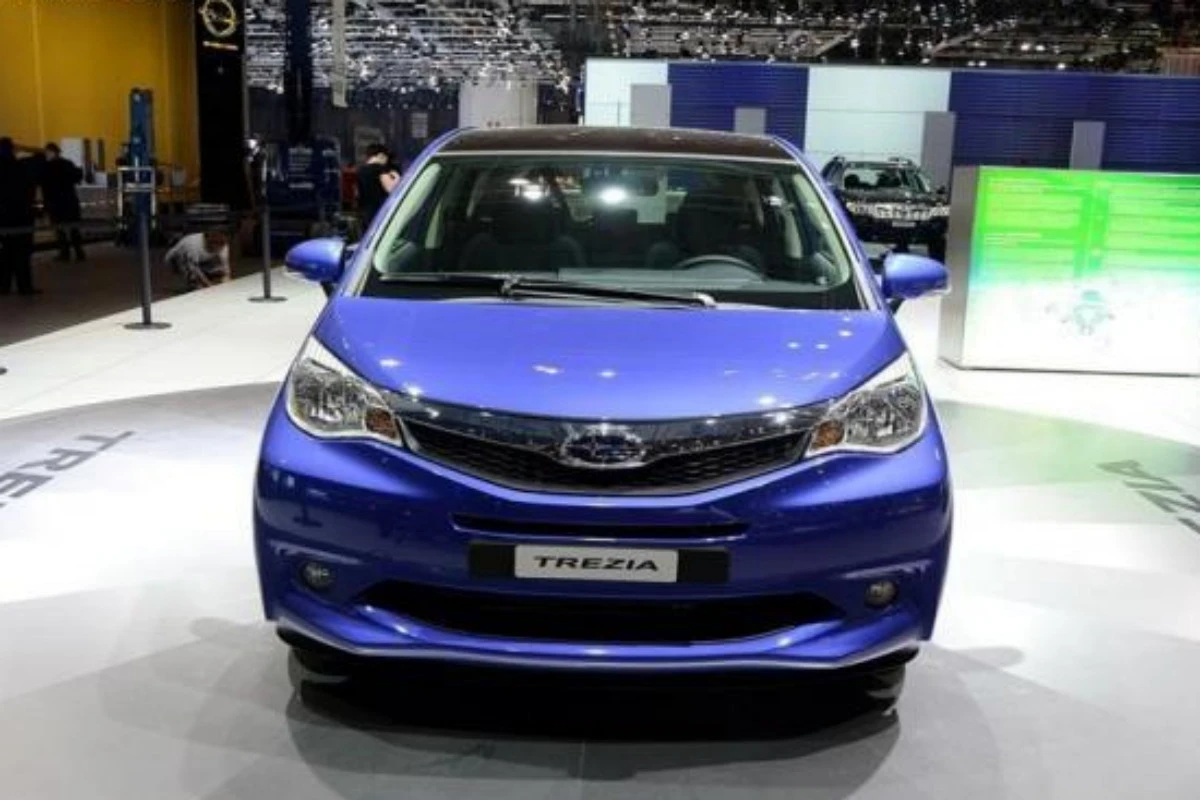

Let me tell you about this Toyota Urban Cruiser front brake disc – model number 4351202270. It's a replacement part specifically designed for two urban compact SUVs: the Subaru Trezia and the Toyota Urban Cruiser. When you drive around town, what do you really need? It's not the kind of high-performance setup you'd find on a racing track – rather, you want your car to feel smooth, quiet, and absolutely reliable during your daily commutes.

Our Toyota Urban Cruiser front brake discs (Model No.: 4351202270) are manufactured in strict compliance with Toyota's original factory technical specifications, with every dimension precision-engineered to the micrometer level. Whether you're gently applying the brakes when dropping your child off at school or navigating frequent stop-and-go traffic during rush hour, these discs deliver a highly linear and firm brake pedal feel – eliminating any instances of sudden front-end nose-jerking or soft, mushy braking performance.

Many car owners have complained that their factory-branded brake discs start making unusual noises after just two or three years of use – especially during rainy weather or shortly after washing the vehicle. To address this troublesome issue, we have specifically optimized the surface treatment process and material formulation of this product, effectively resolving the problem once and for all.

The front brake disc SUBARU/TOYOTA4351202270 is compatible with a wide range of cars, as follows:

There are different corresponding codes for the front brake disc SUBARU/TOYOTA4351202270

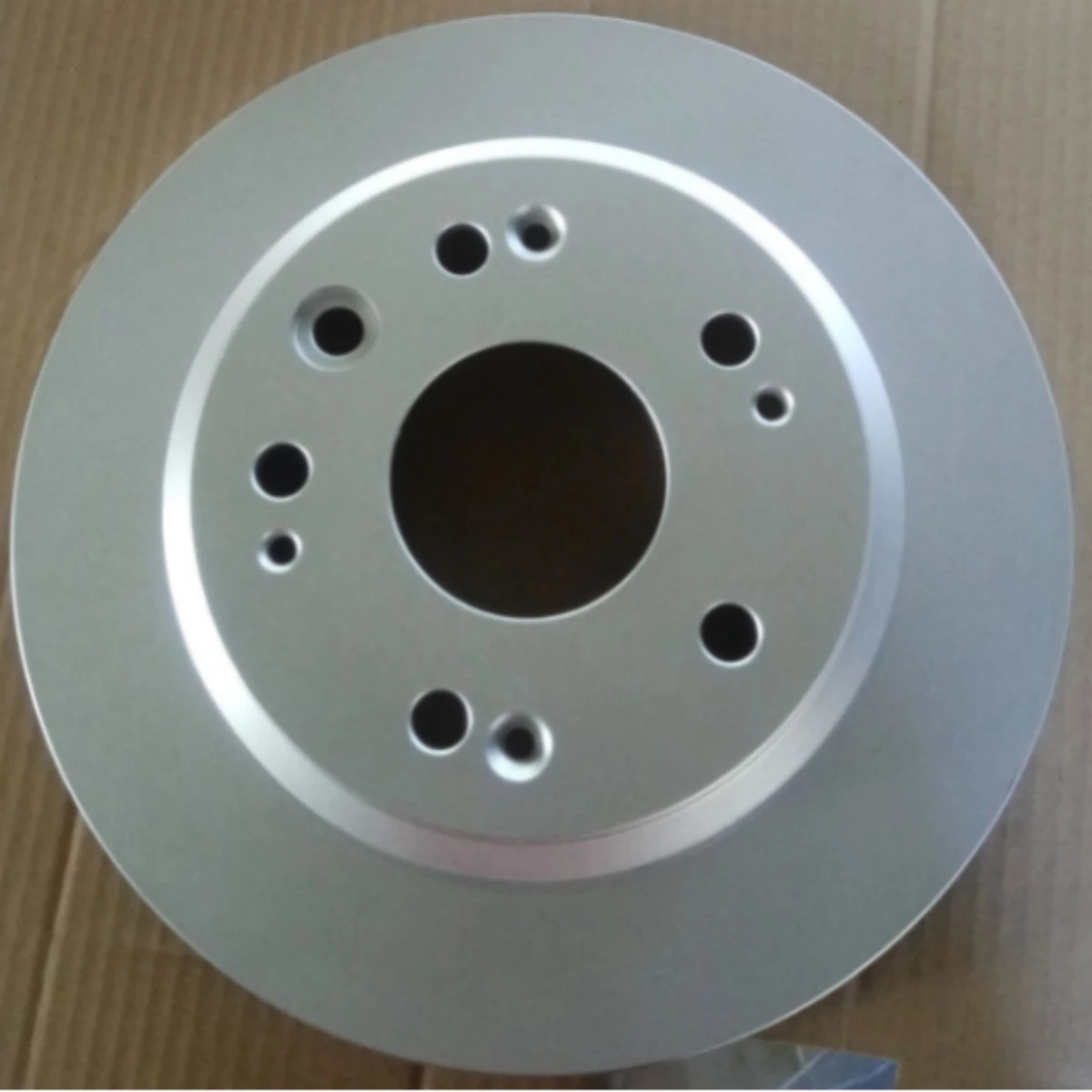

Many affordable brake discs start losing their paint as soon as they're unpacked – and after just two months on the vehicle, they're already rusted like scrap metal! But our brake discs are different: they feature a high-temperature resistant anti-rust silver powder coating – not the low-quality spray paint used on ordinary discs! So, just how meticulous is our manufacturing process?

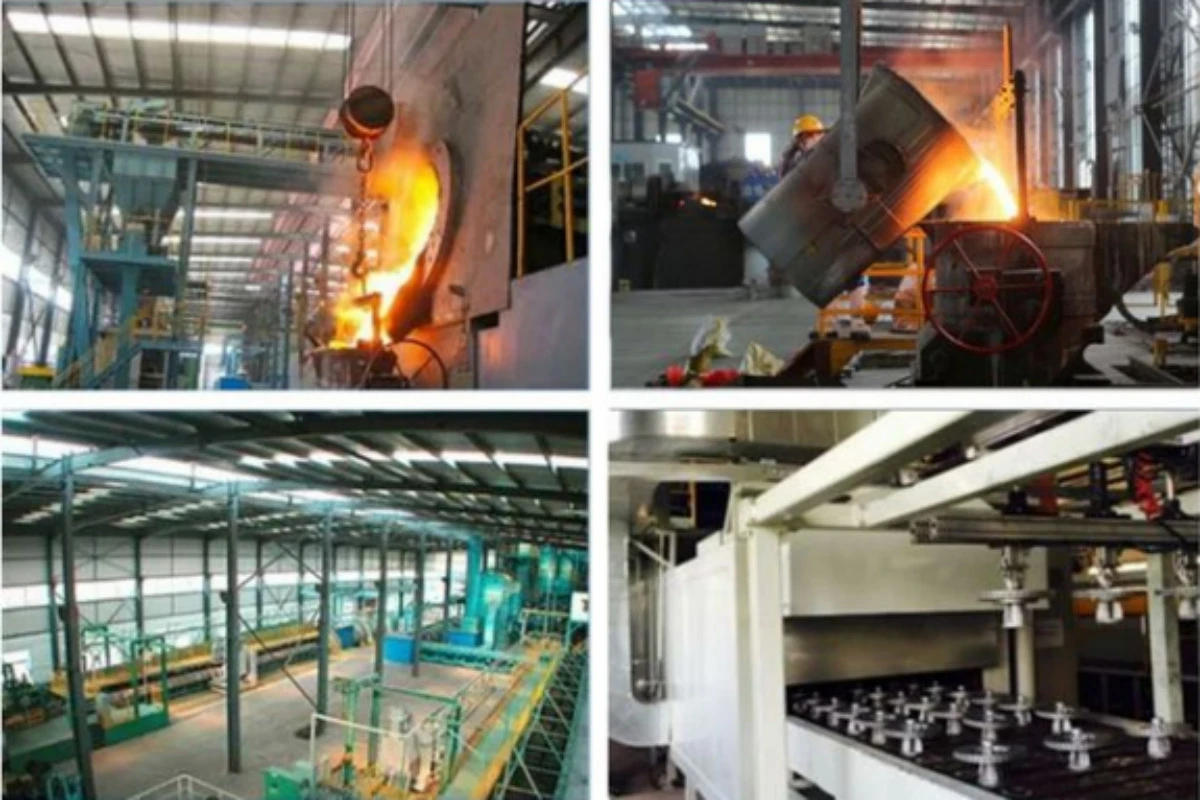

Take, for example, the front brake disc for the Toyota Urban Cruiser (Model No.: 4351202270): the disc undergoes precision machining first, followed by a comprehensive sandblasting treatment to remove every burr and impurity before being sent to the spraying line.

The coating thickness is precisely controlled between 15 and 20 micrometers – ensuring the entire metal surface is thoroughly coated without compromising the fitment of the mounting surface. Isn't that impressive?

Even more thoughtfully, every non-operational surface – including those parts that don't come into contact with the brake pads – even the mosted corners, such as the inner walls of ventilation channels or the sides of the central flange, are fully coated! What real benefits does this superior craftsmanship bring you?

Imagine: on roads treated with de-icing agents in northern regions, during the humid "Huinan" season in southern China, or amidst the salty sea breeze of coastal areas – if you were to disassemble the wheel hubs for inspection, the brake discs from other manufacturers would likely be so rusty that you wouldn't recognize them at all! In contrast, our discs only have a thin layer of surface rust on the edges, which can be easily wiped clean with a cloth!

There are no large chunks of rust stuck firmly to the wheel hubs, so when it's time to change tires, you won't have to spend hours hammering away – saving you a lot of hassle! Additionally, before applying the spray coating, we apply an oil-resistant treatment to the surface, maximizing adhesion! Even when the brake discs are stacked together during transportation, their coating remains completely un scratched; upon delivery, the product is beautifully intact and in perfect condition.

Warranty Statement
This Toyota Urban Cruiser Front Brake Disc 4351202270 is covered by a quality warranty for 80,000 kilometers or 12 months, whichever comes first. The warranty applies to manufacturing defects occurring under normal urban driving, highway driving and non-heavy off-road conditions, including:

- Radial cracks on the disc surface (not caused by external impact)
- Uneven installation resulting from excessive flatness deviation of the mounting surface
- Casting defects inside the ventilation grooves (sand holes and shrinkage cavities)

The following situations are not covered by the warranty: Scratches on the disc caused by metal-to-metal contact after the brake pads are completely worn out; damages arising from modified calipers or mismatched brake pads; vibration during operation due to misaligned installation of the disc caused by residual rust on the wheel hub flange during installation. These issues are attributed to improper installation and are not covered under our warranty.

Q1: I own a Forester and mainly drive in urban areas for daily commutes, with occasional trips on dirt roads. Is it necessary to replace the brake discs with these "reinforced" ones?
A: They are not actually reinforced discs, but rather replacements to restore original performance. It is common for factory brake discs to develop uneven surface wear after traveling 50,000 to 60,000 kilometers. If you feel the brake pedal feels spongy now, or hear a humming noise when applying the brakes lightly, installing new discs will restore the braking power to its original factory level. Our brake discs are priced similarly to ordinary aftermarket alternatives, but we put more effort into dynamic balancing and surface coating. Simply put, they can stay rust-free and vibration-free for a longer service life.

Q2: Which brake pads are compatible with the Toyota Urban Front Brake Disc 4351202270 ? What models do you recommend replacing together with it?
A: This disc fits Subaru's original two-piston floating calipers, and it is also compatible with Toyota's single-piston calipers. We recommend replacing them simultaneously with low-metallic brake pads from Akebono or Nisshinbo. Recommended part numbers: Subaru 26296AG010 and Toyota 04465-33250. We do not recommend overly hard full-ceramic brake pads, as they take a long time to break in with these cast-iron discs and tend to produce noise in the early stage of use. Make sure to thoroughly remove rust from the wheel hub flange during installation; otherwise, even premium brake discs will vibrate if installed askew. The torque specification for wheel bolts is 103 N·m, which applies to both Subaru and Toyota vehicles. DOT4 brake fluid is recommended. It is best to drain the old brake fluid and refill with new fluid when replacing the brake discs.

Q3: What is the recommended torque specification for installing brake disc 4351202270 on the Subaru Trezia?
A: According to Toyota's official service manual, the wheel bolt torque specification for both the Subaru Trezia and Toyota Urban Cruiser is 103Nm. Be sure to use a torque wrench to tighten the bolts in diagonal sequence in several stages. Do not use an impact wrench for direct tightening, as this may cause brake disc deformation or bolt breakage.

Tip 1: Always check the runout of the wheel hub flange surface before installing new brake rotors.
Many vibration issues occur because the flange surface gets rusted or covered with hard particles after the old rotor is removed. Use sandpaper to thoroughly polish the flange surface, then measure its end face runout with a dial indicator. If the runout exceeds 0.1 millimeters, repair the flange surface first. Otherwise, the new rotor will be installed askew, and no solution can fix the problem.

Tip 2: There is no need to rush to replace rusted brake rotors.
Light surface rust on brake rotors is quite common if the vehicle is left parked for a few days during the humid weather in southern China. Simply drive the car and apply the brakes a few times to remove the surface rust. However, replacement is necessary if the rust pits are deep enough to catch your fingernail (deeper than 0.5 millimeters), or if thick rust around the rotor edge causes uneven thickness.

Always replace brake discs in pairs. Replacing only one side will cause uneven braking force between the left and right sides, which endangers driving safety. Additionally, it is recommended to replace brake pads at the same time when changing brake discs, so as to achieve the optimal running-in performance of both parts.
