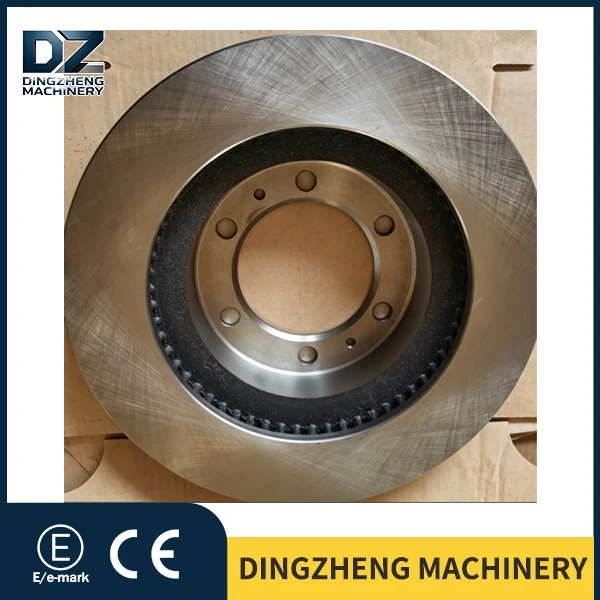

Toyota Fortuner Front Brake Disc

Engineered exclusively for Front brake disc for Toyota Fortuner Front Brake Disc 435120K090, this front brake rod delivers incredibly linear, responsive braking feedback at every press. You will gain confident, controlled stopping power for a safer driving experience no matter the journey.
Boasting outstanding thermal dissipation capability, it easily handles relentless high-intensity braking even under harsh road conditions, effectively eliminating thermal fade and maintaining consistent stability at all times.
Paired with exceptional premium wear-resistant construction, the rotor withstands long-term friction rigorously, significantly extending overall service life while maintaining reliable performance mile after mile.

There are different corresponding codes for the Toyota Fortuner Front Brake Disc 435120K090

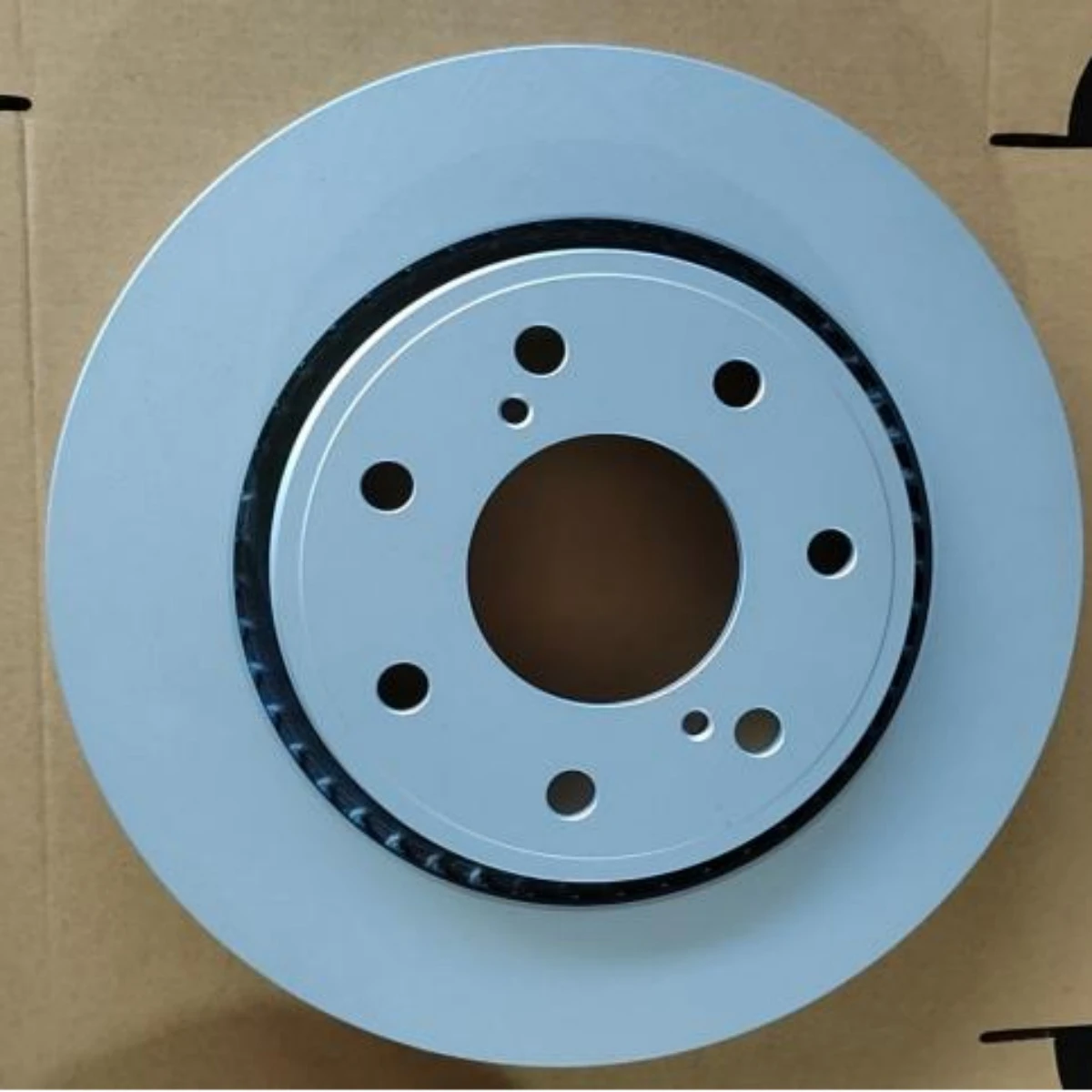

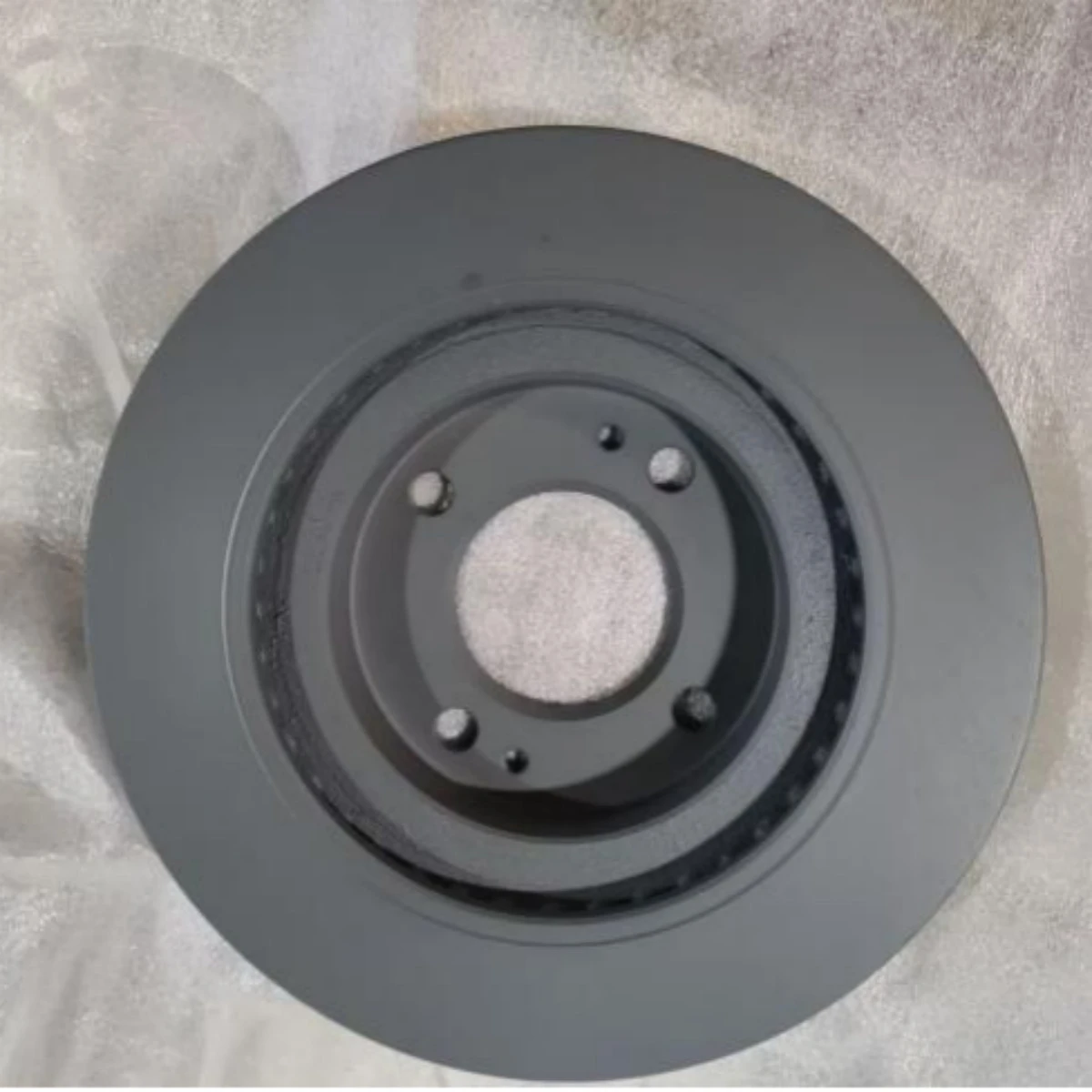

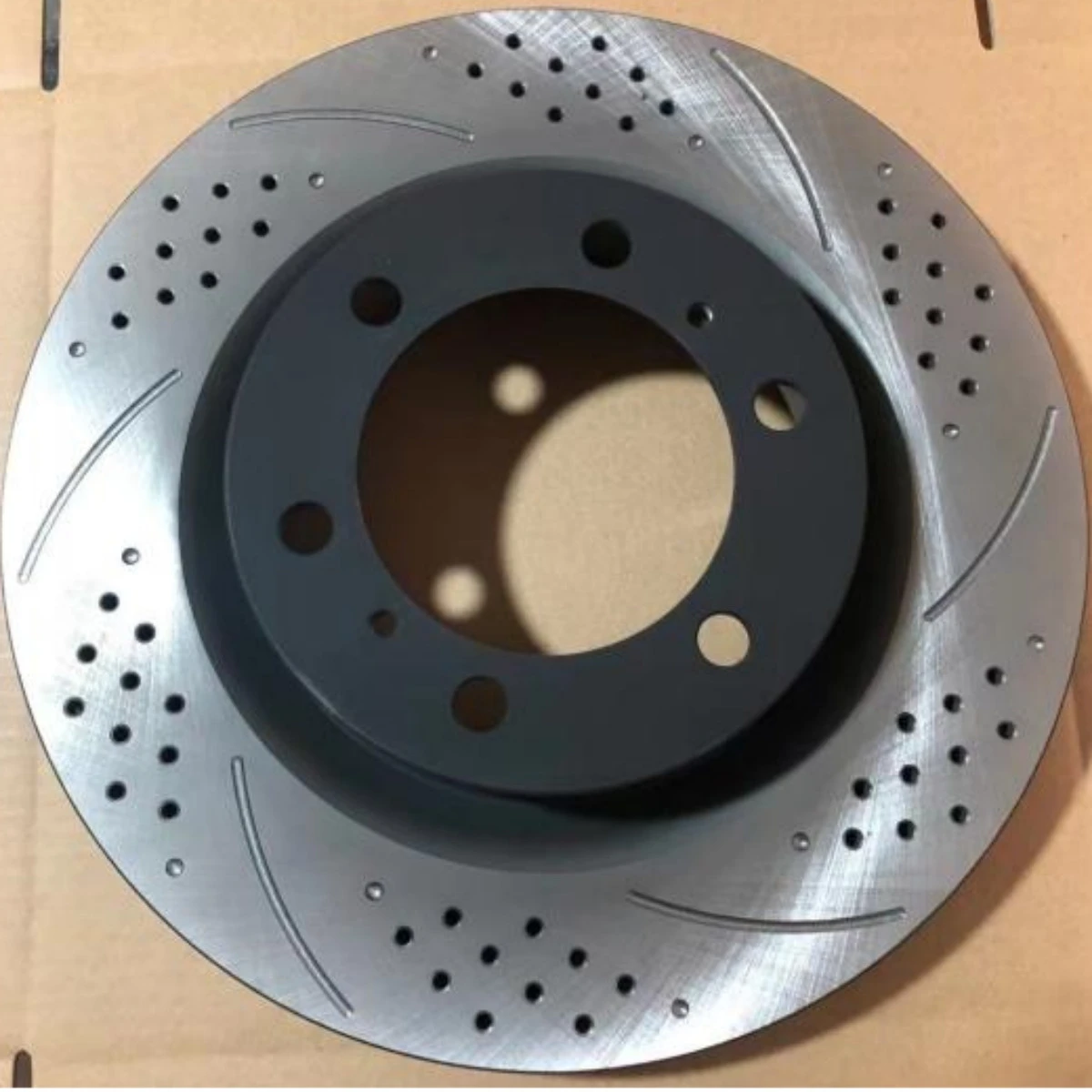

All surface treatments are carried out in strict accordance with automotive brake component manufacturing standards, ensuring stable friction coefficient, reduced brake noise, and effective prevention of early corrosion and wear during daily use. Front brake disc for Toyota Fortuner Front Brake Disc 435120K090| Slotted & drilled for superior heat dissipation, black/silver anti-rust coating available, phosphate finish upgrades durability & long service life. Each finished brake disc goes through surface uniformity inspection before leaving the factory to meet the original equipment fit and performance requirements.

Each production procedure is equipped with special inspectors to conduct random sampling inspections of indicators such as flatness, thickness tolerance and surface finish, and only products that meet the OE matching standards can leave the factory to ensure stable installation performance when matching the corresponding Toyota models.Strict source quality control from casting for all Front brake disc for Toyota Fortuner Front Brake Disc 435120K090

Two 1.5-ton electric furnaces support stable mass production; automated machining ensures high dimensional precision; integrated anti-rust cleaning line provides reliable anti-corrosion treatment.

Our production base is located in Laizhou, Shandong, the core area of China's brake disc industrial cluster. With 26 years of professional experience in manufacturing brake components, we export our products to more than 50 countries and regions worldwide and serve as an OEM supplier for many world-famous automotive brands.

The foundry workshop is equipped with the fully automatic DISA 230B static pressure molding line from Denmark. We adopt imported HT250 high-carbon alloy cast iron and strictly control chemical compositions in accordance with Toyota's original formula. The carbon content is maintained at 3.15%-3.35%, silicon content at 1.75%-1.95%, and manganese content at 0.75%-0.95%. Each batch of molten iron undergoes four composition tests via German SPECTRO direct-reading spectrometer. Any batch failing to meet the standards will be discarded entirely. The cast blanks are then subject to 30 hours of artificial aging treatment to completely eliminate internal residual stress, fundamentally preventing deformation and cracking of brake discs during service.

The machining workshop is fitted with German DMG dual-spindle opposed CNC lathes. The one-clamp forming technology is applied to avoid precision errors caused by repeated clamping. Every brake disc undergoes 100% dimensional inspection, with the diameter tolerance controlled within ±0.09mm, thickness tolerance within ±0.045mm, and lateral runout no more than 0.055mm, fully complying with Toyota's original precision standards. Finally, all products go through ultrasonic flaw detection and dynamic balance testing. Items with internal pores, sand holes or excessive dynamic imbalance are rejected to guarantee a 100% factory pass rate.

Return and Exchange Policy
The Front brake disc for Toyota Fortuner Front Brake Disc 435120K090 is covered by our zero-defect quality guarantee. Returns and exchanges are handled under two circumstances as follows:
- For issues caused by manufacturing defects (such as casting flaws, out-of-tolerance dimensions and abnormal coating): Free replacement will be provided unconditionally, and we will bear all round-trip shipping fees.
- For returns due to non-quality reasons (such as incorrect part number selection, duplicate purchases, order cancellation by vehicle owners, etc.): The customer shall cover all round-trip shipping fees. The returned product must be uninstalled with its original packaging intact. Refunds or replacements will be processed within 5 working days.The net weight of a singleFront brake disc for TOYOTA parts number 435120K090 for Toyota vehicles, is approximately 10.8 kilograms. It is packaged with double layers of high-strength OPP pearl cotton for cushioning during shipment to guarantee safe delivery. Standard products are dispatched from the warehouse of our factory in Shandong. The standard production and lead time is 30 to 45 working days after order confirmation. Priority production and expedited shipping are available for urgent requests, with additional charges applicable. We accept designated freight forwarders notified in advance by customers. Please provide the contact information of the freight forwarder within 72 hours after order confirmation.

Q: Can Front brake disc for TOYOTA parts 435120K090 be interchanged with 435120K140 and 435120K150 found online?

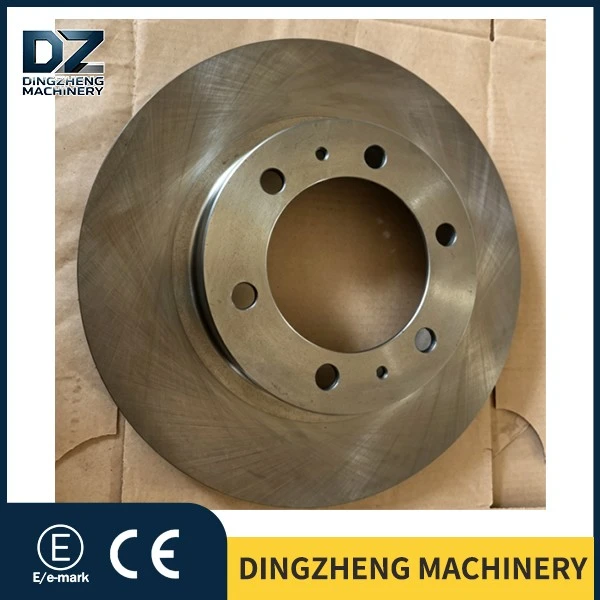

A: Absolutely. This is a practical trick to cut costs and save trouble. The OE part numbers 435120K090, 435120K140, 435120K150 and 435120K160 are all interchangeable part numbers for the same front brake disc within Toyota's supplier network. They feature an identical outer diameter of 319mm, a thickness of 28mm, a 6-hole mounting design with a center bore of 108mm and a pitch circle diameter of 139.7mm. For instance, if you drive a 2012 Hilux and the system indicates the required part is 435120K140, while the supplier has 435120K090 in stock, you can choose it without worry. The dimensions are fully identical and no modifications are needed for installation.

Q: I often drive my Hilux on mountain roads with a tool trailer attached. Can this brake disc withstand the high temperatures caused by frequent hard braking?

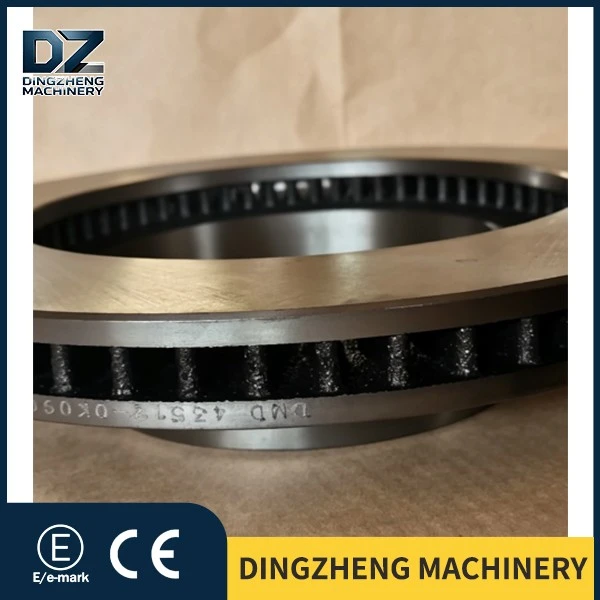

A: This is exactly what it is designed for. The large 319mm diameter and 28mm thick disc provide excellent heat capacity for heavy-load operating conditions. The ventilated slots in the middle create a continuous air pumping effect as the wheel rotates, dissipating heat from the center to the outer edge of the disc. Practical tests show that combined with the high thermal conductivity of HT250 high-carbon cast iron, this structure effectively reduces brake fade during repeated braking on downhill sections. The brake pedal will not feel spongy after several hard stops. It should be noted, however, that any brake disc will lose performance if the brake is held continuously during downhill driving, as heat cannot dissipate in time. The correct approach is to use engine braking together with intermittent braking, allowing the disc to cool down between brake applications.

Q: After installing the new brake disc and driving for 200 to 300 kilometers, I still feel slight steering wheel vibration when braking at 100 kilometers per hour. What causes this?

A: If the wheel nuts were tightened to the standard torque of 105-110 N·m with a torque wrench during installation, and the caliper slide pins are well-lubricated and move freely, first check the wheel mounting surface. If rust on the wheel hub is not thoroughly removed with a wire brush before fitting the new disc, residual rust debris will cause minor misalignment between the disc and the hub. A lateral runout exceeding 0.05mm will lead to noticeable steering wheel vibration during high-speed braking. Next, check the running-in condition. A mileage of around 300 kilometers is still within the normal break-in period, so you may continue driving for another 100 to 200 kilometers and observe the condition. If the vibration persists after 500 kilometers, remove the disc and measure its lateral runout with a dial indicator.

As the number of global classic models Toyota Hilux and Fortuner remains steady, high-standard OE replacement brake discs such as Front brake disc for Toyota Fortuner Front Brake Disc 435120K090 are gaining increasing recognition among experienced long-term vehicle owners. A prominent trend in the global aftermarket for brake discs over the past two years is that coating technology has become a key benchmark for differentiating product grades. Leading international brands including Brembo have fully promoted UV-coated brake discs to replace traditional painted ones. Major manufacturing enterprises in the industry have successively invested in introducing Danish DISA molding lines and fully automatic anti-corrosion coating production lines for brake discs, lifting coating quality and production consistency to a new level through upgraded equipment.

Consumers are also becoming increasingly aware that purchasing uncoated bare brake discs without full protective coating will lead to severe rusting within less than half a year. Removing these worn discs next time will require heavy hammering, which is ultimately not cost-effective in any way.

It is also worth noting that there are numerous counterfeit products and inferior aftermarket parts on the market falsely labeled as "Genuine Toyota Original Equipment". These products usually only have a deceptive layer of paint on the surface, with no anti-corrosion treatment applied to the internal ventilation slots. Dynamic balancing is done arbitrarily depending on individual workers, and the carbon equivalent in the cast iron formula is not strictly controlled. Reliable braking performance in the short term does not guarantee long-term stability. For pickup trucks built for heavy-duty work, essential parts must never be compromised to cut costs. A vehicle may grow old and its paintwork may fade, but two things are non-negotiable: the firm and linear deceleration when applying the brakes, and the braking distance that can make all the difference in critical moments.
