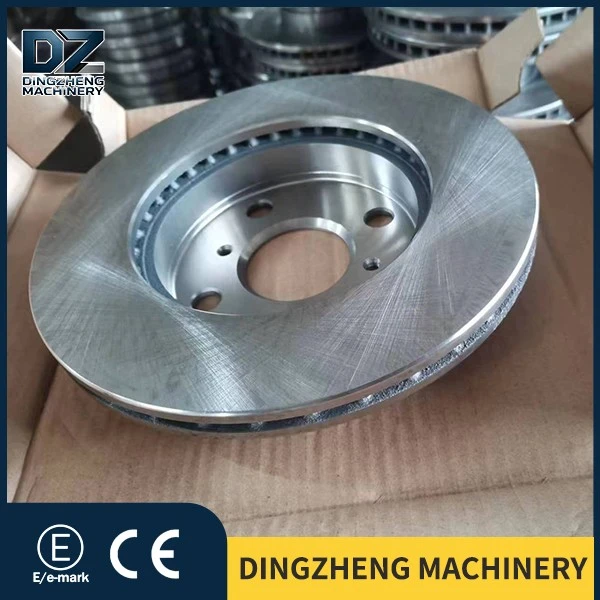

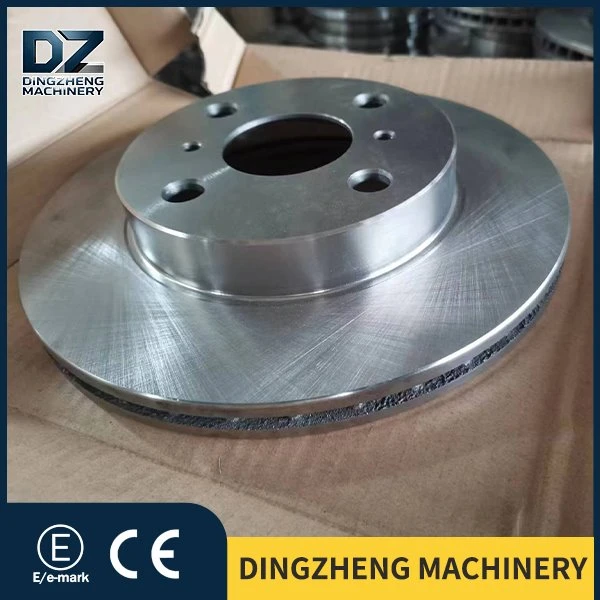

Front Brake Discs for Toyota ECHO

Most standard brake discs on the market only vaguely indicate compatibility with Toyota sedans, often leading to issues such as incorrect hole spacing, misaligned center holes, or installation vibrations. In contrast, our 4351252010 Toyota ECHO front brake disc precisely replicates the original factory specifications at a 1:1 ratio without any dimensional modifications, eliminating the need for secondary grinding or customization at dealerships-ready-to-install upon delivery.

To ensure stability in overseas bulk procurement and end-user maintenance, we have standardized the complete set of core measured parameters for the 4351252010 brake rotor, with all specifications exceeding industry benchmarks: The base material employs automotive-grade G3000 high-carbon gray iron containing over 90% pearlitic graphite structure, maintaining a Brinell hardness of 190–220 HB – perfectly suited for Toyota ECHO's urban driving conditions involving frequent starts/stop cycles and short-distance traffic congestion, while delivering both noise reduction and extended wear resistance. Featuring a factory-provided dual-layer ventilation system, this product effectively addresses thermal degradation issues in compact mobility vehicles. With a standard outer diameter of 235 mm, total installation height of 43 mm, and a new friction surface thickness of 18 mm (official safety wear limit: 16 mm), its bore specifications precisely match original factory requirements: four mounting bolt holes, a 100 mm PCD hole spacing, and a 55 mm center positioning hole, with coaxiality accuracy controlled at the micrometer level to eliminate installation looseness or uneven wear. Compatible with Toyota's original OE-44650D0100 brake pads, it requires a standard installation torque of 103 Nm and fully complies with Toyota ECHO's original braking calibration specifications. Whether for sporadic restocking at European/American repair shops, retail orders through Southeast Asian e-commerce platforms, or bulk purchases by major auto parts chains, the OE-4351252010 dedicated front brake disc delivers versatile adaptability across multiple scenarios with low inventory costs and minimal return rates.

The primary challenge in overseas auto parts trade lies not in product wear or malfunction, but rather in product deterioration caused by maritime humidity-induced corrosion, long-term storage-related rusting, and coating detachment. Many low-cost competitors' Toyota ECHO brake discs feature only a single layer of basic oil-based black paint, lacking any anti-corrosion certification. Under the harsh conditions of oceanic shipping (3–6 months of high humidity and salt exposure), winter snowmelt on European and American roads, and rainy, humid environments in Southeast Asia, these discs develop rust spots and coating peeling within just two months. Rust particles can even block brake pads, causing abnormal noises and braking delays, leading to customer complaints and inventory losses for wholesalers. For the export-specific application of the OE-4351252010 Toyota ECHO front brake disc, we developed a three-layer fully automated cathodic electrophoretic anti-rust process that employs environmentally friendly water-based coatings free from heavy metal residues, fully compliant with EU RoHS and EPA environmental standards-a robust solution tailored for global exports.

The comprehensive rust prevention process is exclusively customized for the 4351252010 brake rotor, providing multi-layered corrosion inhibition and comprehensive protection. The first step involves a pre-treatment high-temperature degreasing and phosphating process that thoroughly removes oil residues and oxide scales from the disc casting, forming a dense 8–12 μm phosphating substrate that significantly enhances paint adhesion and prevents coating detachment at its source. The second step employs full-immersion cathodic electrophoretic deposition-a technique distinct from conventional single-sided spraying-which ensures complete coverage of all areas including both sides of Toyota ECHO brake discs, inner walls of ventilation channels, bolt holes, and positioning holes, resulting in a uniform 20 μm thick anti-corrosion coating free from missed application, sagging, or pinholes. The third step involves constant-temperature curing at 180°C, creating a hydrophobic and wear-resistant protective layer that shields against seawater salts, moisture, and road corrosion agents. Third-party SGS testing confirms this 4351252010 Toyota ECHO brake disc passes a 1000-hour neutral salt spray test with unilateral etching expansion ≤2 mm-far exceeding the industry standard of 300 hours. Additionally, the product strictly adheres to braking safety principles by applying full coating protection only to non-friction surfaces while preserving precision machined bare surfaces on friction contact areas, thereby maintaining original braking performance and sensitivity without compromising suitability for long-term overseas shipping, storage, or complex road conditions.

Compatible Vehicle Models

This brake disc is compatible with a wide range of car models, as follows:

Cross Reference Part Number Table

Most automotive parts suppliers on the market sell Toyota ECHO brake discs manufactured via third-party contract production, which often involves streamlined processes and inadequate quality control. This leads to common defects such as batch-to-batch dimensional variation, excessive end face runout, and vibration during high-speed braking.

All our OE-4351252010 front brake discs are produced independently at our own standardized factory in Laizhou, Shandong, on a dedicated custom production line, with no outsourcing or contract manufacturing. We exercise full control over the entire process-from raw material intake to finished product release-and hold both IATF 16949 automotive quality system certification and EU ECE R90 braking safety certification. All manufacturing and inspection standards are specifically optimized for export markets, ensuring full compliance with the original factory assembly requirements for Toyota ECHO models.

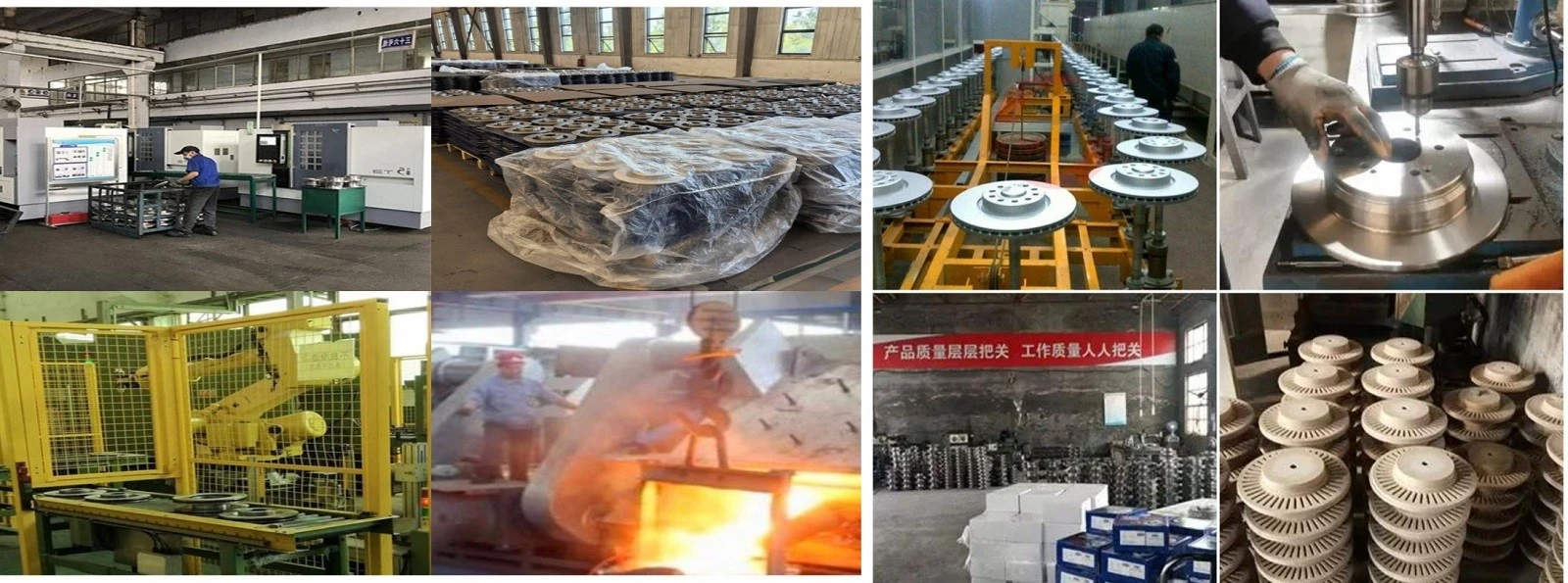

Our workshop equipment is purpose-built to meet the precision machining requirements of the 4351252010 brake rotor:
During rough machining, six horizontal CNC lathes fitted with PCBN superhard wear-resistant tools complete all cutting operations for the disc's outer diameter, thickness, and mounting reference surface in a single clamping, eliminating positional tolerance errors caused by multiple setups.

For precision machining, we use a dual-end face synchronous turning process optimized for the braking specifications of Toyota ECHO vehicles, strictly controlling disc thickness variation (DTV) ≤ 0.008 mm, friction surface parallelism ≤ 0.04 mm, and surface roughness between 0.8–1.2 μm. This ensures uniform contact between brake pads and the disc, preventing localized wear and braking misalignment.

All components undergo 100% pre-delivery inspection: we use laser micrometers to control end face lateral runout ≤ 0.025 mm and three-dimensional measuring systems to verify coaxiality of the coordinating holes, effectively solving the common issue of steering wheel vibration during high-speed braking in Toyota ECHO vehicles.

We are equipped with fully automated vertical dynamic balancing equipment that ensures residual imbalance per component ≤ 15 g·cm, meeting the lightweight braking requirements of compact family cars.

A dedicated thermal fatigue testing laboratory completed 100 emergency braking cycles at 650°C, and tests confirmed that the 4351252010 brake disc shows no thermal cracks or warping deformation, and withstands repeated frequent braking cycles.

At the same time, we have established a five-level closed-loop quality control system specifically developed for the production of export-grade Toyota ECHO brake discs (model 4351252010): raw materials undergo metallographic sampling inspection upon arrival to prevent unqualified cast iron materials from entering production; initial dimensions are verified after rough machining to establish benchmarks for mass production; comprehensive online inspections are carried out during precision machining to eliminate defective products at an early stage; the adhesion strength and salt spray resistance of the electrophoretic coating are verified via sampling tests; final product packaging includes a full inspection of appearance, dimensions, and certification requirements. This comprehensive system effectively prevents non-compliant products from entering overseas markets at the source.

Compared with the standard models offered by competitors, end-user after-sales complaints for our 4351252010 brake discs have dropped by more than 90%, making our product the top choice for overseas wholesalers seeking reliable inventory solutions.

The shipping process has achieved standardized and refined management: During the order confirmation phase, we will issue dedicated PI documents and packing lists for brake disc part number 4351252010 to customers within 12 hours, specifying vehicle parameters compatible with Toyota ECHO.

Customized protective packaging solutions are adopted. Each single disc is individually wrapped with OPP pearl cotton, reinforced with hard cartons and then sealed with an overall moisture-proof stretch film, which prevents coating scratches and disc deformation caused by bumps during ocean transportation.

Specialized staff will follow up the customs declaration and loading process throughout. The goods will be accompanied by bills of lading, certificates of origin, ECE R90 certifications, material test reports and salt spray test reports. Both original bill of lading and telex release modes are available to meet customs clearance requirements of countries in Europe, America and Southeast Asia.

All after-sales warranty terms are fully incorporated into export sales contracts with full transparency and enforceability, specially applicable to Toyota ECHO brake rotor part number 4351252010. Under normal urban commuting conditions, the warranty mileage is 80,000 kilometers. The warranty covers original factory quality defects, including raw material pinholes and air pores, dimensional deviations upon delivery, mass coating peeling, and unqualified dynamic balance. Exempted scenarios are clearly defined: disc deformation or cracking resulting from manual modification, aggressive driving, mismatched brake pad materials, improper installation torque, and intense track driving are not covered by the warranty.

Q1: Is the OE number 4351252010 brake disc exclusively compatible with the Toyota ECHO? Which other models are compatible?

A: This brake disc is specifically designed for the North American versions of the Toyota ECHO NCP12 1.5L (1NZ-FE engine) manufactured between 2000 and 2005, and can only be used as a front-wheel brake replacement component; it is also compatible with Toyota Platz SCP11/NCP12 and Toyota Vitz NCP10 models sharing the same platform. Note that the wheelbase and center hole dimensions differ in newer models such as the new Corolla and standard Yaris, making them incompatible; therefore, always verify the original OE number 4351252010 before procurement to avoid misalignment.

Q2: What is the standard installation torque for the 4351252010 brake disc designed for Toyota ECHO? What are the consequences of improper installation?

A: The factory-specified installation torque for the bolts is 103 Nm. Insufficient torque may cause the brake disc to loosen during high-speed driving, leading to brake vibration, abnormal noises, or unstable braking performance; excessive torque can induce stress deformation in the disc body and exceed end-face runout limits, significantly reducing the brake disc's service life. It is recommended that repair shops use torque wrenches consistently for standardized installation.

Q3: To what extent must a 4351252010 brake disc wear out before replacement? How can the end-of-life criteria be quickly determined?

A: The product's new thickness is 18 mm, while the industry-approved safety wear limit is 16 mm; wear exceeding 2 mm requires replacement of both discs. Additionally, if a Toyota ECHO brake disc exhibits deep grooves, high-temperature temper blue discoloration, fine radial thermal cracks, or end face runout>0.05 mm, it must be replaced immediately even if its thickness meets specifications to prevent safety hazards during high-speed braking.

First, prioritize OE-certified precision replicas and avoid generic non-standard parts. As a legacy vehicle model, the Toyota ECHO requires expensive original factory components with long delivery times; dealerships should therefore avoid unnecessary purchases of OEM parts. Our brake disc model 4351252010 replicates original factory specifications and performance exactly at 60% of the cost, offering compliance, durability, and low after-sales issues-making it ideal for mass market distribution.

Second, adhere strictly to the selection principles for ventilated brake discs and avoid replacing them with solid-disc models. The Toyota ECHO's original front wheels come standard with ventilated brake discs designed for frequent city driving conditions; solid discs offer poor heat dissipation, making them prone to thermal degradation and disc surface warping. Repair shops must use the same 4351252010 ventilated brake disc model during replacement to ensure driving safety.

Third, precisely match brake pad materials to reduce repair rates. When used with Toyota ECHO brake discs (model number 4351252010), prioritize low-metal, factory-spec brake pads to prevent excessive disc surface wear and groove deepening caused by prolonged friction from high-hardness ceramic pads, thereby minimizing secondary repairs for end customers.
