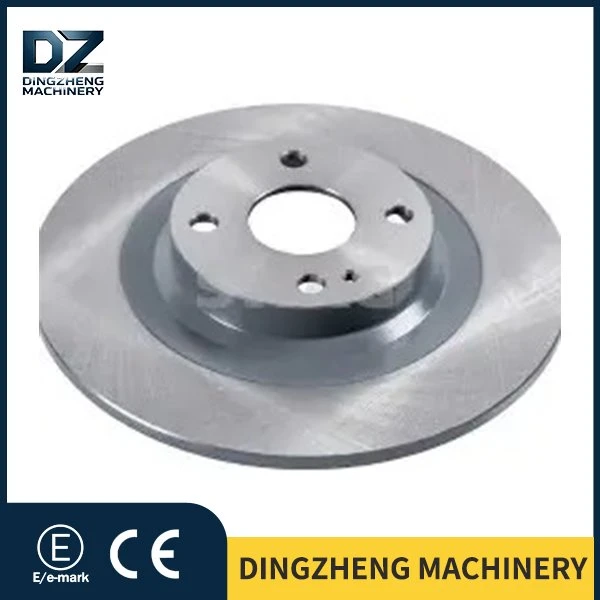

Front Brake Disc for MAZDA MX 5

It is also compatible with all regular braking versions of the Fiat 124 Spider, excluding Brembo modified braking kits. The product meets Mazda's original TIS certification standards for brakes, reproducing the original installation dimensions and braking parameters exactly. It serves as an original replacement brake disc for the MX-5, suitable for everyday use and light sports driving in this lightweight sports car.

As a classic lightweight rear-wheel-drive convertible sports car, the Mazda MX-5 is designed for situations that require agile handling, quick cornering at high speeds, and aggressive driving styles. Its braking requirements are entirely different from those of ordinary family cars or heavy-duty SUVs. The key requirement for brakes in this car is not their ability to handle heavy loads, but rather their capacity to resist heat degradation during continuous braking, their light weight, consistent braking performance at high speeds, and no oscillations when braking in corners. Ordinary brake discs are not suitable for meeting the performance demands of the MX-5.

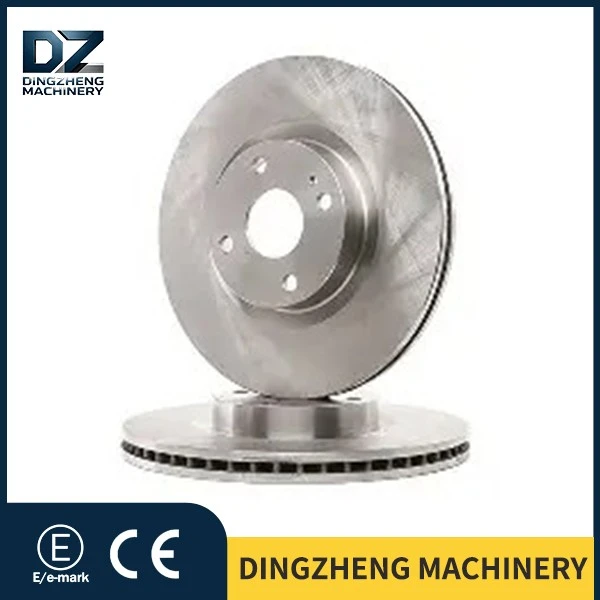

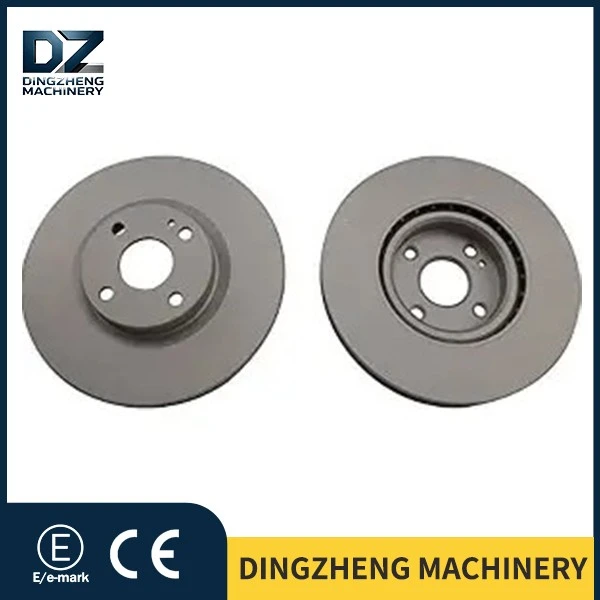

The front brake disc for the Mazda MX-5 (N25133251) is specifically designed for lightweight sports applications. It features a high-flow ventilation structure, which increases its cooling efficiency by more than 30% compared to solid brake discs. In situations such as continuous braking on mountain roads, frequent short braking stops at high speeds, or light driving on short tracks, this disc can quickly dissipate the heat generated by friction, thereby preventing problems such as reduced braking force and increased braking distance caused by heat degradation.

Additionally, this disc is manufactured using a precision polishing process at the micron level, ensuring tight control over its flatness and dynamic balance, which perfectly matches the precise braking needs of the MX-5's lightweight chassis. During everyday urban driving at low speeds, the braking experience is smooth, without any noises or jerks. When braking while cruising at high speeds or slowing down in corners, the braking force is delivered evenly and steadily, with no oscillations in the steering wheel or uneven braking. This combination ensures both comfort for daily commuting and stability for sporty driving, fully addressing the core requirements of the Mazda MX-5 as a sports car.

The front brake disc for MAZDA MX 5 (OE: N25133251) is compatible with a wide range of cars, as follows:

Mazda MX-5 IV (ND__) Apr. 2015–
Mazda MX-5 RF Targa (ND), Oct 2016 – Present
Fiat 124 Spider (348_) Mar. 2016–

The front brake disc for MAZDA MX 5 (OE: N25133251) corresponds to several different codes.

Many owners of the MX-5 find that when these convertible sports cars are parked outdoors for extended periods or driven at high speeds exposed to wind and rain, their brake discs tend to rust and accumulate dust on a large scale. This not only affects the appearance of the wheels but also causes harsh noises during the first braking attempts. Over time, the accumulation of rust can lead to uneven wear on the disc surface, affecting the precision of the braking performance.

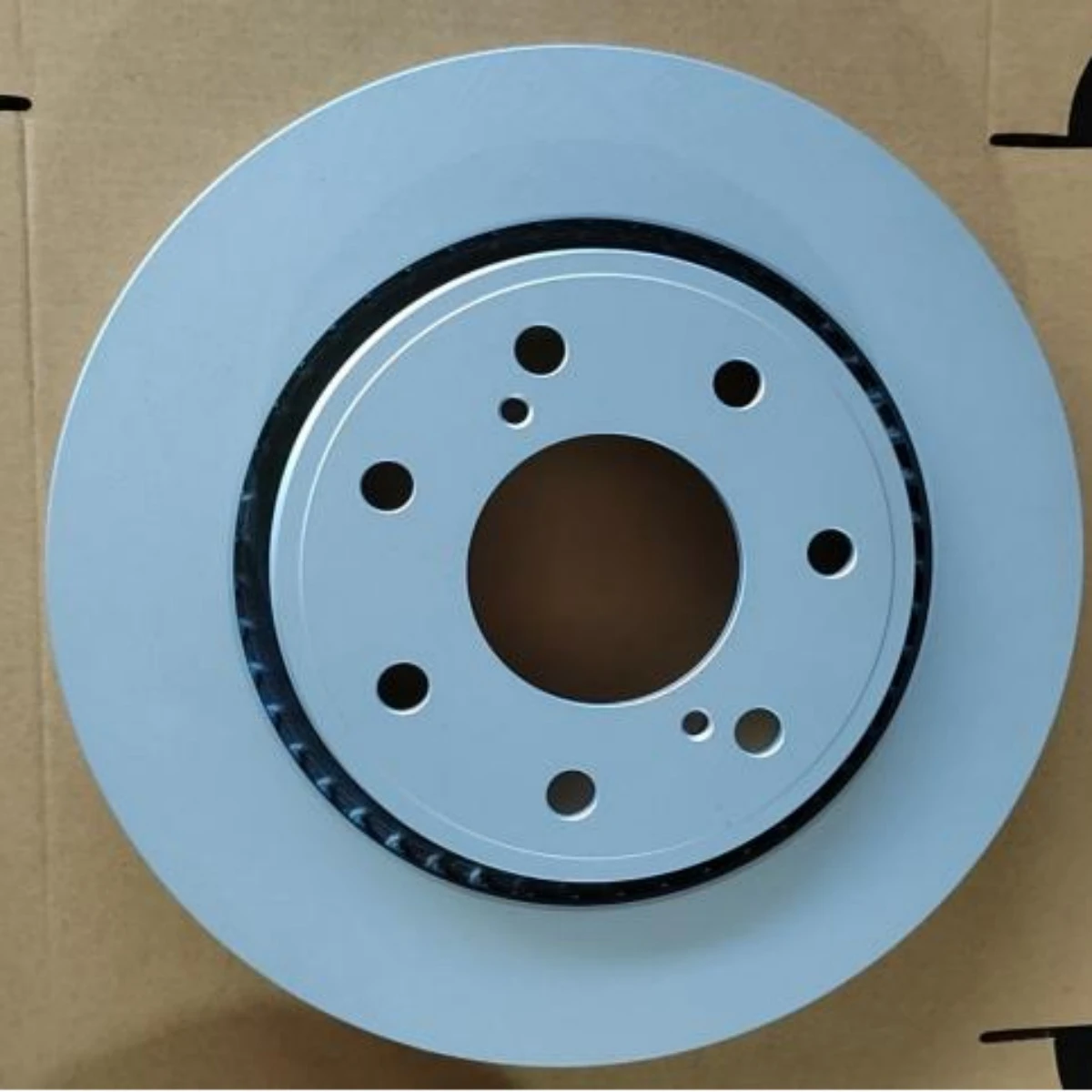

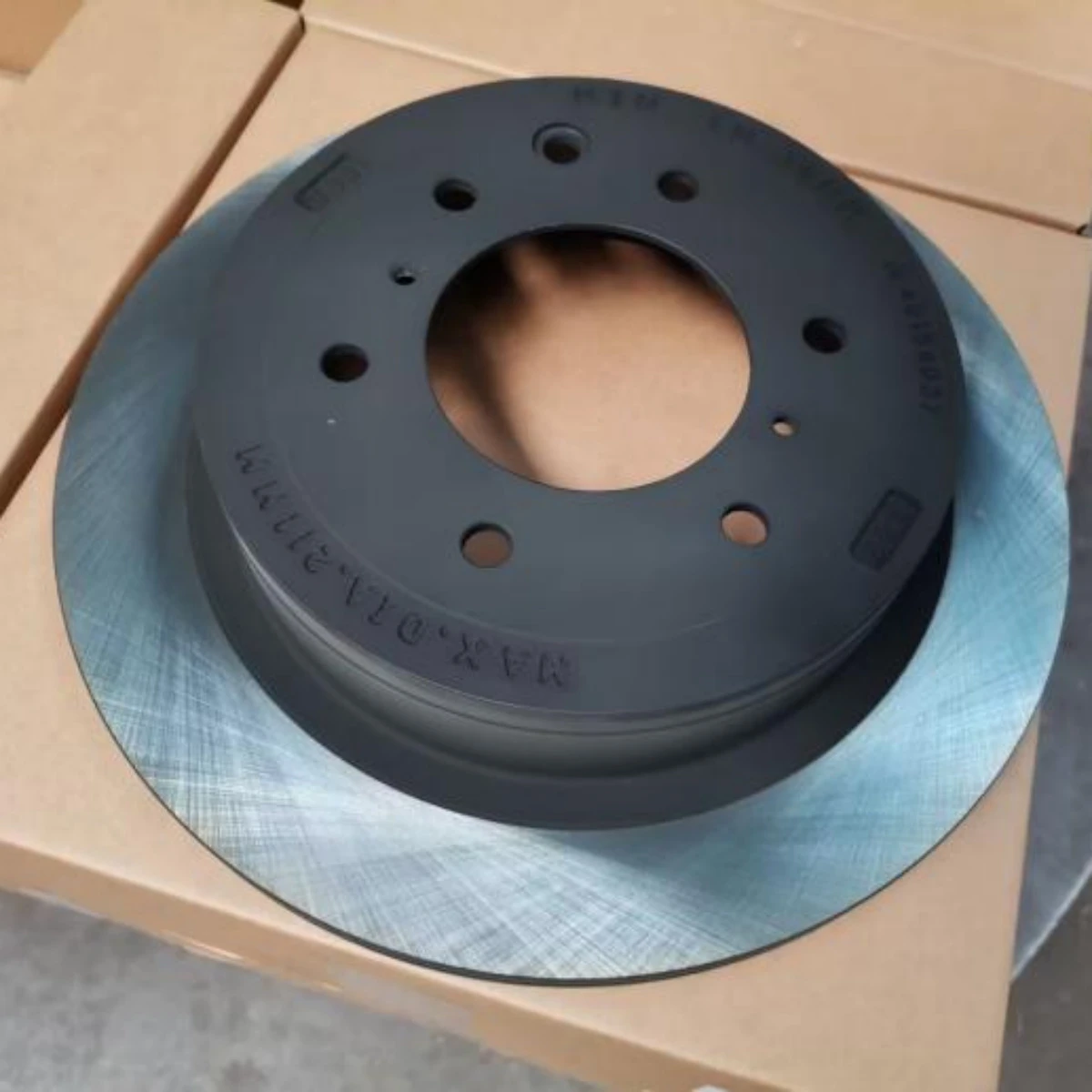

We have developed a specialized anti-corrosion coating process tailored for the front brake discs of the Mazda MX-5 (N25133251), which is different from the ordinary cheap black coatings available on the market. This coating is made of a heat-resistant zinc-aluminum composite material that is environmentally friendly; it is applied precisely to areas such as the inner walls of the ventilation grooves, the edges of the discs, and the mounting surfaces – all areas that are not involved in friction. As a result, it does not come into contact with the actual braking surface, so it does not alter the original friction coefficient or affect the braking sensitivity.

This coating can withstand high temperatures of up to 320°C associated with frequent braking. It does not suffer from peeling, flaking, or carbonization even under the continuous high-temperature friction conditions typical of driving an MX-5. After 720 hours of neutral salt spray testing, it proves to be effective at resisting corrosion caused by rain, moisture, and wind dust, thereby preventing the formation of rust spots resulting from outdoor parking. It helps to maintain the discs' clean and sleek appearance over time, while also reducing braking-related issues caused by rust, thus significantly extending the lifespan of the brake discs and improving their braking stability.

Brake discs are simply iron plates at their core, yet achieving a brake disc that delivers vibration-free, noise-free and uniform wear-free braking every single time demands exceptional machining precision.

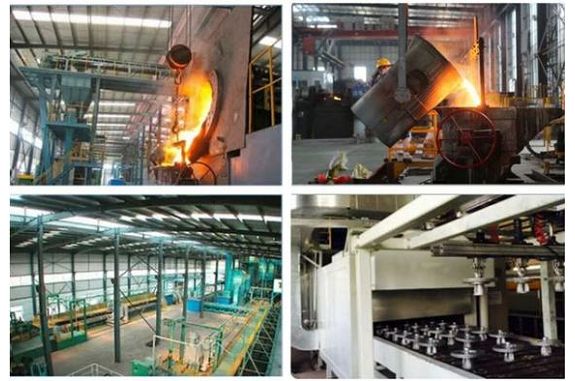

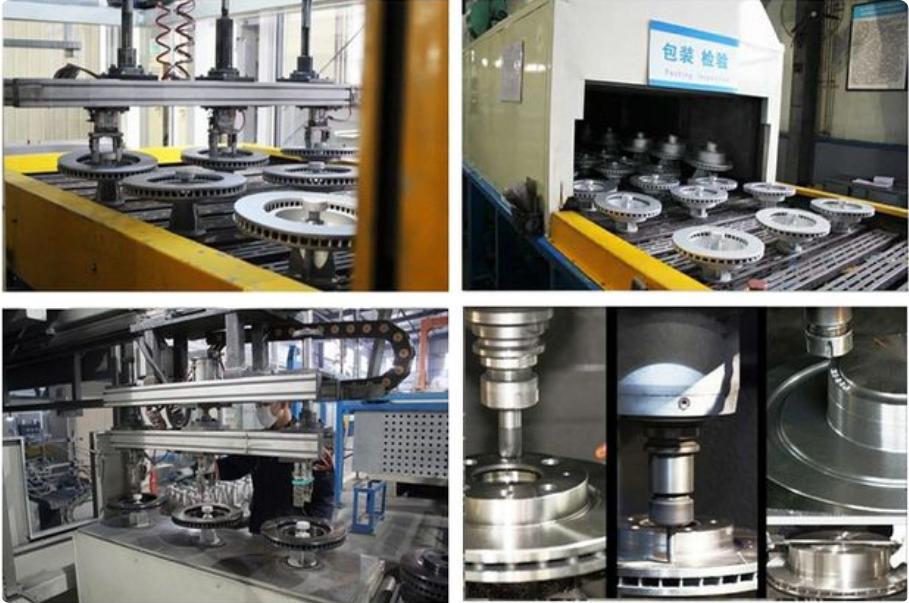

Our machining process proceeds as follows: Raw castings first undergo rough turning to form their basic shape and dimensions.
Next, they are processed on vertical CNC grinders for finish turning to meet strict dimensional accuracy and geometric tolerance requirements.
The friction surfaces are treated via double-face grinding to guarantee parallelism and flatness between the two contact surfaces.
This step is critical. If the two surfaces are not perfectly parallel, the brake disc will wobble side to side during braking, creating a pulsating sensation in the brake pedal - an issue commonly referred to as brake shudder.

Dynamic balancing calibration follows the grinding stage. When a brake disc spins at high speeds, any offset center of gravity relative to the axle will generate vibrations that transfer to the steering wheel as shudder. We control dynamic balancing precision within 5g·cm, far exceeding the industry standard.

The final stage is comprehensive inspection. Every N25133251 disc is mounted on a test bench, where dial gauges measure face runout and calipers check thickness. Only qualified units move to the coating line, with a secondary inspection conducted after coating. It is no exaggeration to state that each brake disc undergoes a minimum of five inspection procedures from raw casting to finished product.

Warranty details: The front brake discs for this model, Mazda MX-5 – part number N25133251 – are covered by a manufacturer's warranty of 80,000 kilometers or 12 months, whichever comes first. These discs meet Mazda's original braking system specifications and are suitable for the lightweight, sporty driving conditions of the MX-5 ND series. The warranty covers defects related to casting errors, issues with the metallurgical quality, dimensional inaccuracies, and problems with the surface coating. However, damage caused by modified brakes that are not compatible, incorrect installation, use of non-compliant brake pads, or aggressive driving on racing tracks is not covered under the warranty.

After-sales response time: If the front brake discs for the Mazda MX-5 (N25133251) received by the customer have manufacturing defects, surface flaws, dimensional issues, or missing coatings, the customer can provide clear photos along with the order documentation. Our dedicated international after-sales team will conduct an inspection within 48 hours and offer a solution such as replacing the discs or providing a full refund.

[Mazda MX-5 front brake disc (N25133251)] The weight of a single disc is 6.2 kg; it is a precision component used in vehicles. We use a customized packaging solution that includes double-layer OPP foam padding, shock-absorbing corners, and a thick five-layer cardboard box, all of which serve to protect the delicate surface of the disc, its anti-corrosion coating, and the mounting holes. This approach prevents any scratches, dents, coating damage, or slight deformation that might occur during transportation by sea or land, ensuring that the products arrive at overseas customers in perfect condition.

Q1: Is the front brake disc with part number N25133251 compatible with Mazda MX-5 ND 2.0L's original brake calipers?
A1: It is fully compatible. This front brake disc for the Mazda MX-5 (N25133251) was designed specifically for the MX-5 ND4 2.0L models from 2014 to 2025; it fits perfectly with the original brake caliper mounts. It is not suitable for Brembo aftermarket brake kits, as its hole patterns, dimensions, and installation parameters are 100% consistent with those of the original parts, allowing for direct installation in place.

Q2: Is it normal to hear slight noise during the running-in period after installing the new N25133251 brake discs in an MX-5?
A2: This is a normal phenomenon. The Mazda MX-5 has a lightweight body structure that results in sensitive braking, and the new discs together with the brake pads need about 500 kilometers of driving time to adapt to each other. Slight noises during this period, as well as a slightly firmer braking feel, are all normal. It is recommended to avoid frequent sudden brakes or continuous braking at high speeds. Once the discs and brake pads are fully adapted to each other, the noise will disappear naturally, and the braking performance will reach its optimal level.

Q3: At what thickness should the N25133251 brake discs of the Mazda MX-5 be replaced?
A3: According to Mazda's official repair manual, the minimum allowable thickness for these front brake discs is 24 mm. To ensure safe braking at high speeds and while turning, we recommend replacing the discs when their thickness drops to 24.5 mm. If there are deep grooves in the discs exceeding 0.5 mm, excessive lateral movement, or localized rust spots, the discs should be replaced even if their thickness is still within the acceptable range.

Q4: How often should the N25133251 brake discs be checked when using the MX-5 for regular driving?
A4: For normal urban commuting or highway driving, it is recommended to check the discs every 20,000 kilometers. For vehicles that are often used on mountain roads, engaged in light sports driving, or require frequent braking while turning, it is advisable to check them every 15,000 kilometers. Pay special attention to the flatness of the discs, their wear thickness, and lateral movement, in order to prevent braking issues and heat-related problems.

Latest industry developments: In the global after-sales market for lightweight sports sedans over the past two years, lightweight, high-precision braking components that are resistant to heat degradation and environmentally friendly as well as corrosion-resistant have become the key criteria for procurement. In markets such as Europe, America, and Southeast Asia, standards regarding environmental protection and quality control for auto parts are becoming increasingly stringent; brake discs with large tolerances, poor heat dissipation, and non-eco-friendly coatings are being phased out. Special original replacement brake discs designed for lightweight convertible sports cars such as the Mazda MX-5, Porsche 718, and BMW Z4 have become essential products in the foreign trade sector, thanks to their high precision and sports-grade ventilation features. Our Mazda MX-5 front brake discs (N25133251) are manufactured using lead-free, environmentally friendly casting processes and come with low-VOC corrosion-resistant coatings; they fully comply with EU and US REACH regulations, ensuring easy export to various regions around the world and meeting the requirements of high-end auto parts and modification shops overseas.
