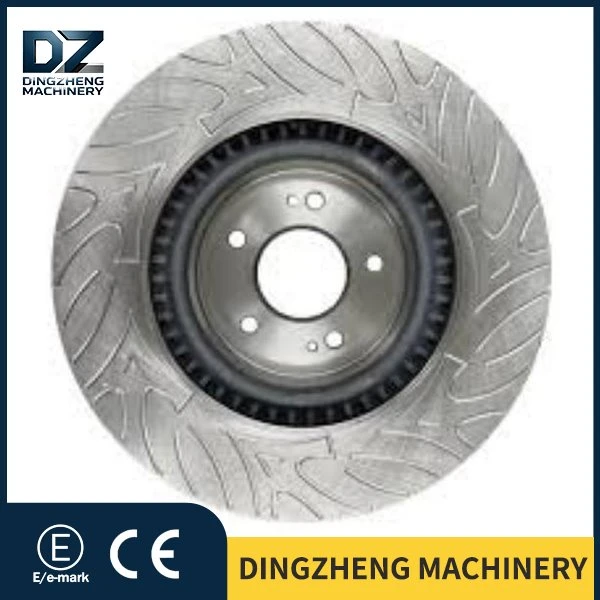

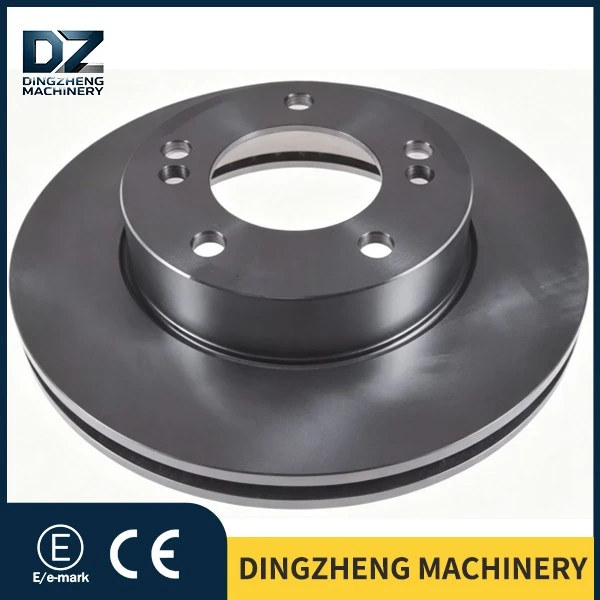

Imported SsangYong Chairman Front Break Disc

A table that can bolster the Chairman's presence can't rely on appearance alone
The Dual Dragon Chairman possesses a certain degree of stubbornness; whether it's the original Chairman H or the later extended versions, it shares the same chassis DNA as the Mercedes W124/W210. As a result, the bolt pattern for the front wheels is consistently 5×112. When equipping such vehicles with brakes, we never settle for anything less than quality. The front brake disc with serial number 4144114102 can be used as a replacement for the Chairman 2.8, 3.2, 3.6 models, as well as the later revised CM500 and CM600 models. When installed in place of the original disc, it fits perfectly, with the positioning notch matching exactly. The dimensions of this disc are determined according to the OE specifications: diameter of 312 millimeters, thickness of 28 millimeters, center hole diameter of 67.1 millimeters, and height of 46.5 millimeters. The weight of a single disc is nearly nine kilograms, making it quite heavy when held in hand. The material used is high-quality G3000 gray cast iron, with the carbon content kept near the eutectic point. At the microscopic level, type A graphite is evenly distributed throughout the material, and the pearlite content is maintained at over 95%. The reason for this is simple: the Chairman weighs over two tons, and when driving at high speeds under load, the brake discs are subjected to extremely high thermal stress. If the graphite structure in the discs is poor or the pearlite content is insufficient, the discs will soon develop grooves, become soft, and provide a weak braking response that is concerning. By using the disc with serial number 4144114102, the braking pedal travel becomes shorter, with immediate and effective braking force at the beginning of the stroke, while heat dissipation remains stable throughout the process. This is what's needed to match the performance of that V6 engine.

The Front brake disc for Imported SsangYong Chairman 4144114102 is compatible with a wide range of cars, as follows:

SsangYong Chairman (HT_) 3.2 2011-

There are different corresponding codes for the Front brake disc for Imported SsangYong Chairman 4144114102

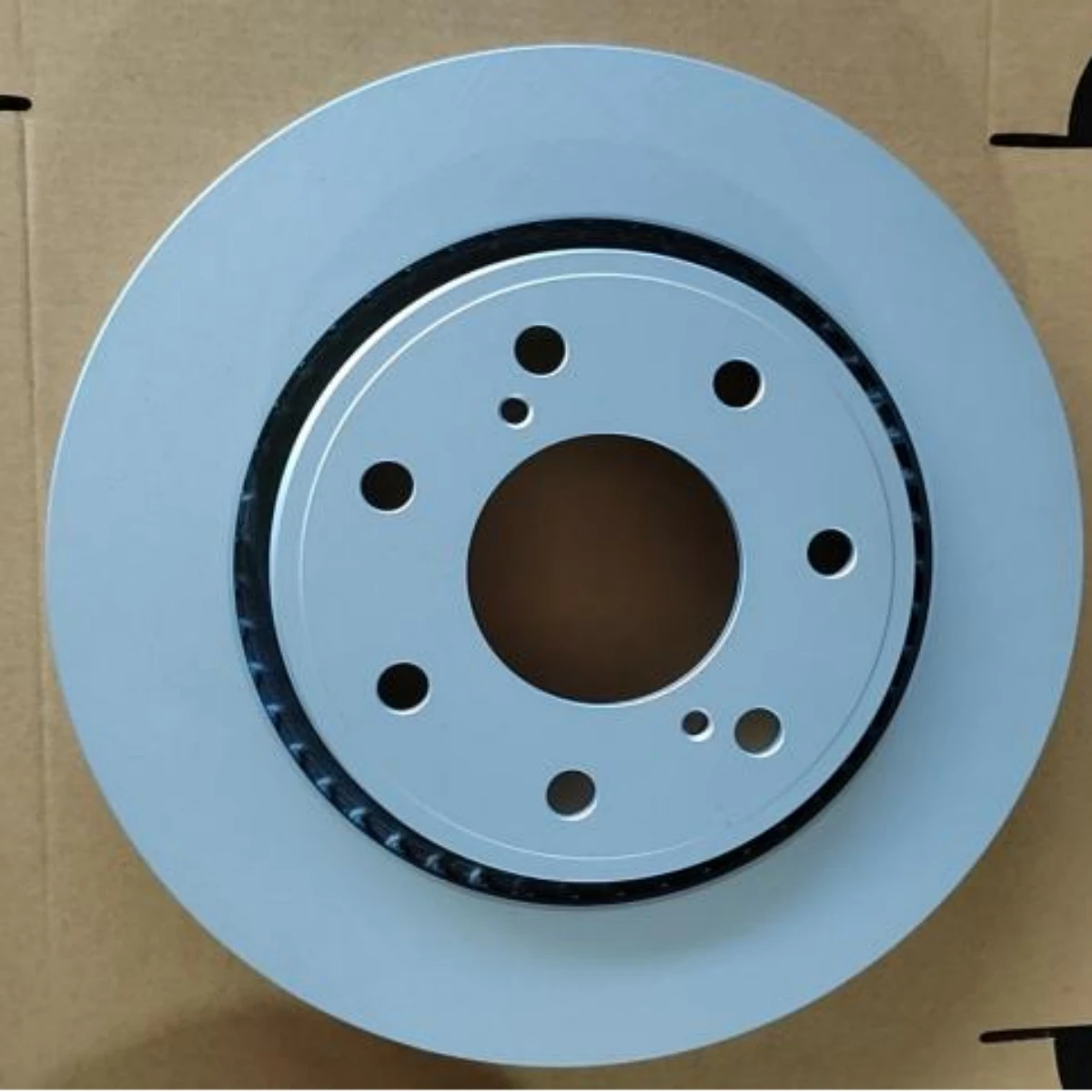

Advantages of surface painting technology: Ensuring the Chairman wheels always look neat
The original wheels for the Chairman model have a common problem: the non-friction surfaces rust extremely quickly. In the air channels and around the flanges, rust spots and peeling layers appear after just one winter, and even the bushings can rust and stick to the flanges when the tires are removed. Our Front brake disc for Imported SsangYong Chairman 4144114102 addresses this issue by applying a layer of water-based epoxy-modified acrylic anti-rust paint to all non-friction areas, including every nook and cranny of the cooling fins. It's completely different from the harsh alkyd red paint used in the past; once cured, this paint forms a dense, cross-linked film that can withstand 500 hours of salt spray testing without any signs of rust. Its VOC emissions are so low that they can be ignored, meaning no unpleasant odors will enter the cabin while the vehicle is in use. All you need to do is wipe away the thin layer of anti-rust oil from the friction surfaces using a non-woven cloth, and then the wheels are ready for use – the paint won't interfere with the brake pads. Several specialists who work on Dualtron vehicles have told me that after installing these wheels, the interior of the wheels remains clean throughout the entire rainy season, unlike before when removing the tires left yellowish residue everywhere. In short, for a vehicle like the Chairman, anti-rust protection is also part of what contributes to its luxurious appearance.

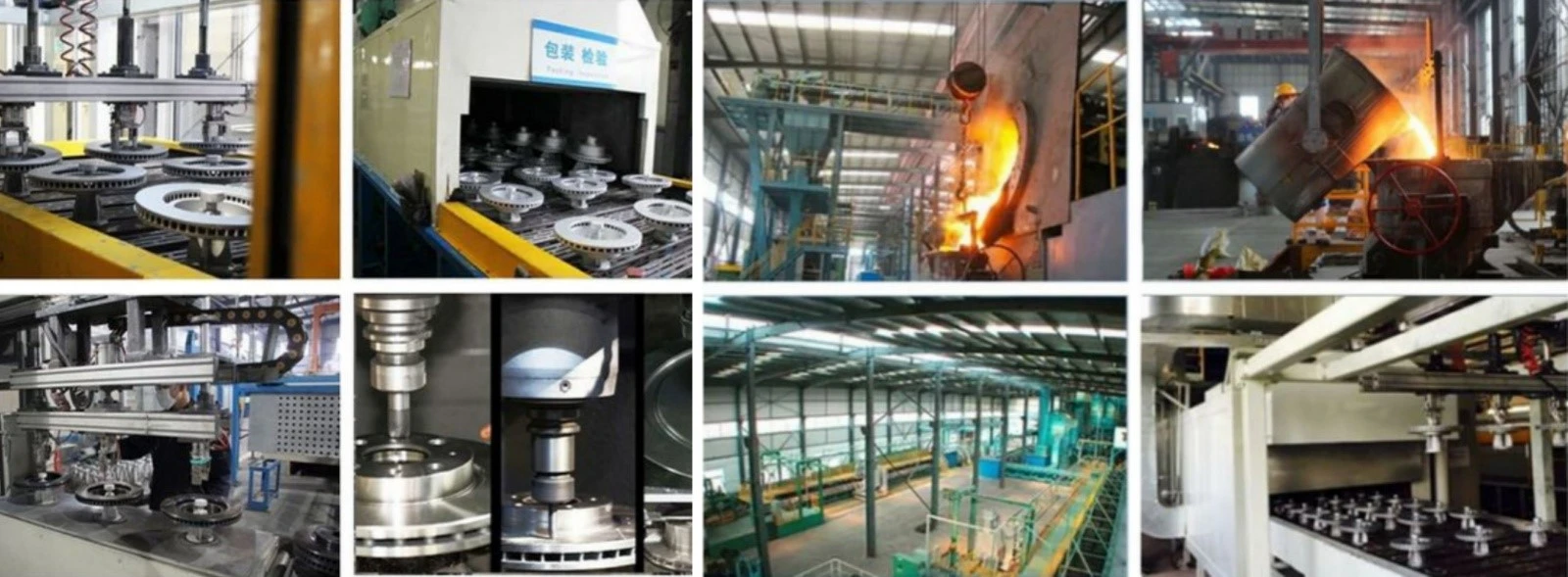

Advantages of the Factory Processing Workshop: The Steering Wheel Shows No Vibration at All on High-Speed Drives, All Thanks to Precise Machining
This Front brake disc for Imported SsangYong Chairman 4144114102 undergoes five inspection and processing procedures in our workshop. The blank workpiece is first loaded onto a double-spindle vertical lathe. With a single clamping setup, the upper and lower friction surfaces as well as the mounting flange surface are fully machined in one go, limiting the end face runout to less than 0.04 millimeters and controlling the parallelism of the two friction surfaces strictly within 0.01 millimeters. After machining, all brake discs undergo full dynamic balance testing. A dedicated weight-removal drill accurately removes excess material from the thick main reduction area on the back of the hub cap to correct runout, keeping the single-side unbalance under 8 gram-centimeters. The workshop is also equipped with a direct-reading spectrometer. The chemical composition of each batch of molten iron is tested before casting, checking carbon, silicon, manganese, phosphorus, sulfur, chromium and copper. If any element deviates by more than 0.05%, the entire batch is scrapped outright, ensuring no grey cast iron workpieces mixed with martensitic white cast iron defective blanks leave the factory. There is no fancy marketing rhetoric behind these processes, yet when the vehicle hits 120 kilometers per hour on the highway and the driver taps the brakes lightly, the steering wheel remains completely steady - all this reliability stems from such rigorous, down-to-earth manufacturing craftsmanship.

After-sales Service Guarantee: Save Owners Who Purchase Part 4144114102 Unnecessary Trips
If you place an official order for this front brake rotor Part No. 4144114102 for Ssangyong Chairman vehicles, we will provide a 24-month or 60,000-kilometer warranty, whichever comes first. If abnormal cracks, abnormal disc runout or brake vibration caused by material defects occur during use, record a video of around ten seconds and send it to us. Once verified by our after-sales technical team, we will arrange a replacement rotor to be shipped out on the same day. You do not need to pay for shipping to send back the old component, which we will retain as a quality sample for disassembly and analysis. One point to note: if the friction surface wears naturally to a thickness below 26 millimeters, the rotor will be deemed end-of-life and replacement will be at your own expense. In addition, if you encounter abnormal chassis noises or stiff component return during installation, do not attempt repairs blindly on your own. Simply give us a call or send a video. Minor issues such as the splash guard rubbing against the rotor or weakened tension of the brake pad circlip can be diagnosed remotely by our team.

Question: The new disc with the serial number 4144114102 has some light rust on it; is it an old stock item?
Answer: By no means. When the cast-iron friction surface is exposed to a little moisture, rust appears after just one night – this is actually evidence that no anti-rust coating was applied to protect the brake pads. After installing the disc, apply light pressure to the brakes a few times, and the rust will be completely removed. What really needs attention is any bubbling or rust accumulation on the edge of the disc and in the air ducts; that indicates a low-quality disc with inadequate coating. The coating on our discs provides thorough protection.

Question: Does it need to be "broken in" in the same way as a new disc when replacing it?
Answer: For the first 200 kilometers, it's advisable to be careful and avoid applying full braking force right away. This allows the friction material of the brake pads to gradually transfer onto the disc surface, forming a uniform layer. Many drivers of Chairman models know that once this layer is properly formed, the braking experience becomes very smooth and linear, with a gradual response from the pedals to the tires – this is the characteristic behavior expected from a Chairman chassis.

Question: If the steering wheel moves from side to side when braking at high speeds, does it mean the disc needs to be replaced?
Answer: In 80% of cases, it's due to uneven thickness of the disc surface or issues with its installation. If a disc with strict dynamic balance requirements like 4144114102 is used, cleaning the rust off the axle heads with a wire brush and tightening the wheel bolts in a symmetrical manner using a torque wrench can eliminate the problem. If that doesn't work, check the rubber seals around the lower arms of the Chairman chassis as well as the clearance of the wheel bearings – don't always blame the brake disc for such issues.

A final reminder to all Ssangyong Chairman owners: many long-time Chairman drivers still experience rapid brake pad wear and excessive brake dust after replacing their brake rotors, and the root cause usually lies in the brake pad compound. Low-cost pads with a high metallic content are highly abrasive and harsh on rotors. If you're using rotor part number 4144114102, switch to low-metallic ceramic brake pads instead. They generate less dust, deliver smooth, linear braking performance, and slow down rotor temperature buildup, resulting in quiet, hassle-free braking overall. Looking ahead, premium aftermarket brake rotors are trending toward rust-free factory-fit standards. Our next batch of upgrade kits designed for the Chairman is undergoing testing with a full electrophoretic black coating, which doubles rust protection lifespan. For routine maintenance, keep a digital caliper stored in your glove compartment to measure the remaining thickness of your front rotors at every service interval. If rotor 4144114102 wears down below 26 millimeters, replace it without delay. The Chairman's heavy curb weight leaves no room for cutting corners on brake system components.
