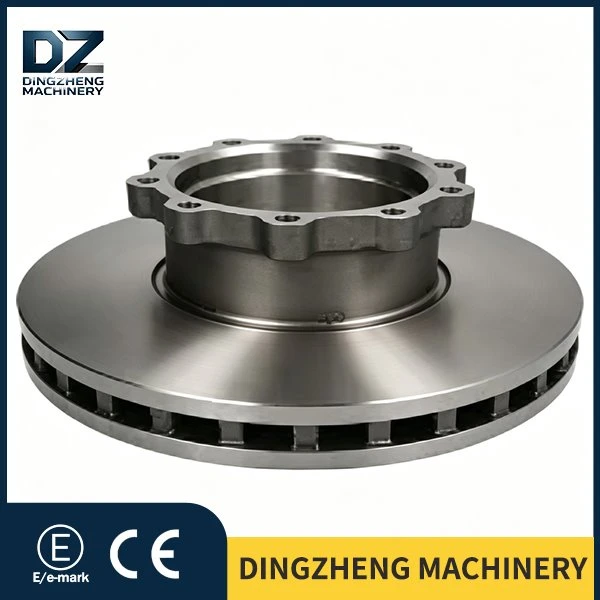

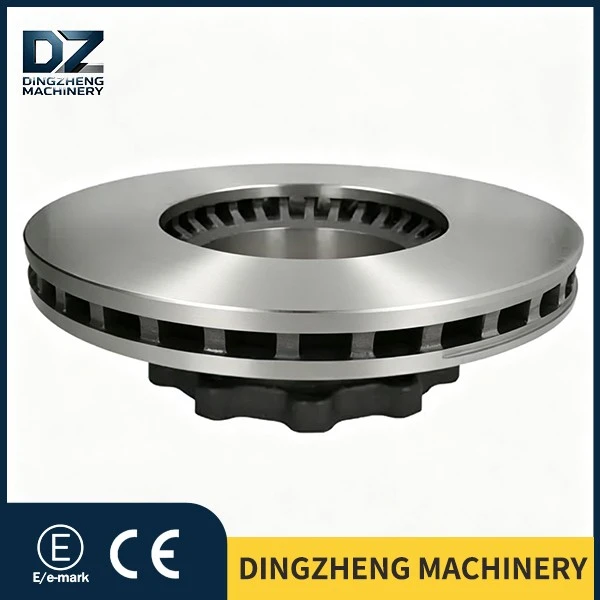

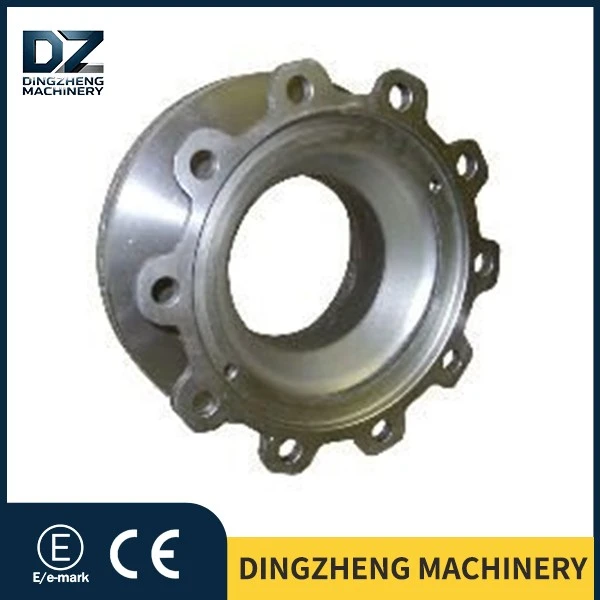

Front Brake Disc for Volvo B12 Bus

Volvo B12 buses operate intercity long-distance routes or tourist lines all year round. Their fully loaded weight is extremely heavy, placing far greater strain on the front axle braking system than passenger cars can endure. Our brake disc with part number 3112965 leaves no room for compromise when it comes to material quality. We adopt GG25HC high-carbon alloy cast iron, where "HC" stands for high carbon content. This design delivers superior thermal stability under the high temperatures generated by sustained heavy-duty braking and effectively prevents thermal cracking.

When driving down dozens-of-kilometer-long downhill slopes in Yunnan, Guizhou and Sichuan with frequent intermittent braking, ordinary brake discs often feel spongy halfway through braking. However, thanks to precise control over carbon content and graphite morphology, this disc boasts efficient heat dissipation and significantly stronger resistance to brake fade compared to standard GG20-grade materials.

Furthermore, given the stop-and-go operating conditions of buses pulling into and out of stations, brake discs undergo repeated rapid heating and cooling cycles. We have conducted dedicated thermal cycle fatigue tests on this disc, simulating the process from high-speed braking to stationary cooling. This guarantees the disc will not deform or crack prematurely due to thermal stress throughout its service life. You will not encounter steering wheel vibration during travel, an issue usually caused by deformed brake discs. Our product maintains dynamic balance accuracy within 30g·cm, a standard far superior to that of ordinary commercial vehicle brake discs.

The Front Brake Disc for Volvo B12 Bus (Part No. 3112965) is compatible with a wide range of cars, as follows:

 Volvo B12 Bus (Fokker) from January 1991 onwards

The front brake disc for Volvo B12 Bus (Part No. 3112965) corresponds to several different codes

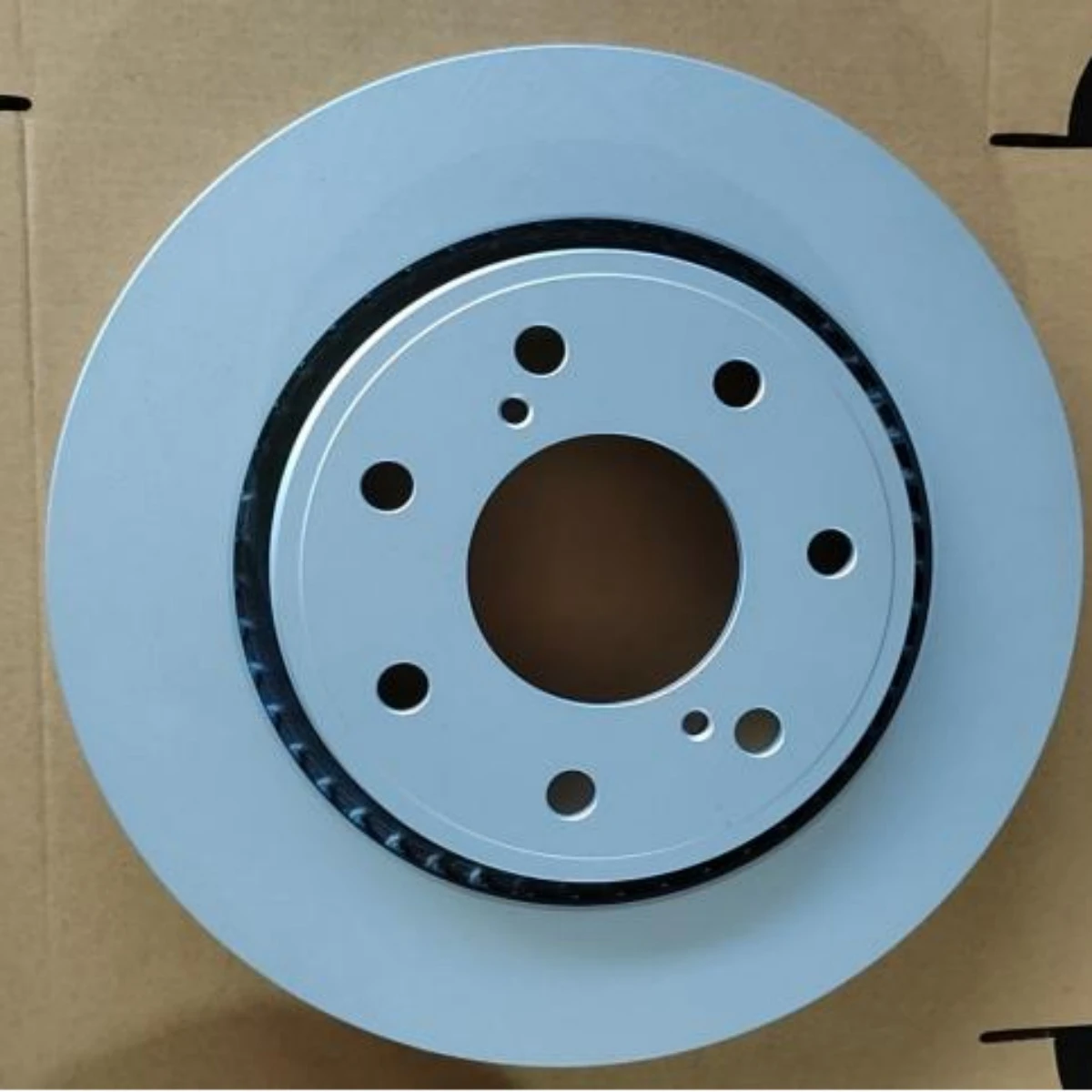

Moving on from material properties, let's talk about surface treatment. For the Volvo B12 Bus Front Brake Disc (Part No.: 3112965), we adopt a dual-layer spraying process consisting of zinc-rich epoxy primer + acrylic polyurethane topcoat, instead of the shoddy single-layer black paint commonly used by ordinary manufacturers in the market.

Why do we adopt this process? Buses operate outdoors all year round, exposed to wind, rain and harsh weather conditions. This is especially true for coastal European countries with high salinity in the air. If brake discs lack effective anti-rust treatment, their surfaces will soon develop severe pitting corrosion. This not only compromises braking performance but also accelerates the wear of brake pads.

Our spraying process boasts four core practical advantages:
First, it delivers exceptional salt spray resistance of over 700 hours. This is no empty claim. Third-party laboratory salt spray tests verify that only sporadic rust spots appear on the coating surface after 720 hours of testing, placing our product among the top-tier industry standards. In contrast, ordinary painted brake discs suffer complete rust penetration in merely 200 to 300 hours, representing a substantial performance gap.

Second, the coating features superior adhesion and excellent anti-peeling performance. Many low-cost brake discs experience large-area paint peeling around mounting surfaces shortly after installation, caused by inadequate pre-treatment. Before spraying, our products undergo three rigorous pre-treatment procedures: shot blasting, degreasing and phosphating. These processes ensure a clean and textured disc surface for firm paint adhesion. Cross-hatch adhesion tests confirm a Class 0 adhesion rating, meaning zero paint peeling after grid cutting.

Third, the coating offers outstanding high-temperature resistance without scorching or discoloration. Brake discs generate extreme heat during operation. Conventional paint turns yellow, blisters and peels off at temperatures above 200°C. Our customized heat-resistant topcoat maintains stable color and performance under long-term exposure to 300°C, and can withstand short-term peak temperatures up to 500°C, fully meeting the temperature requirements for regular bus braking operations.

Fourth, the product complies with EU environmental standards for barrier-free export. With increasingly stringent EU environmental regulations, our paint materials are free from heavy metals such as lead and cadmium, fully compliant with RoHS directives, eliminating environmental compliance barriers for EU exports.

Frankly speaking, the spraying process seems simple but involves sophisticated technical details. Minor deviations in paint brand, coating thickness, baking temperature or curing time will lead to drastically different finished results. For every Volvo B12 Bus Front Brake Disc (Part No.: 3112965), we strictly follow standardized process specifications. The coating thickness is precisely controlled between 25 and 35 micrometers. A thinner coating fails to provide sufficient rust protection, while an overly thick coating compromises dimensional accuracy, making this range the optimal choice for balanced performance.

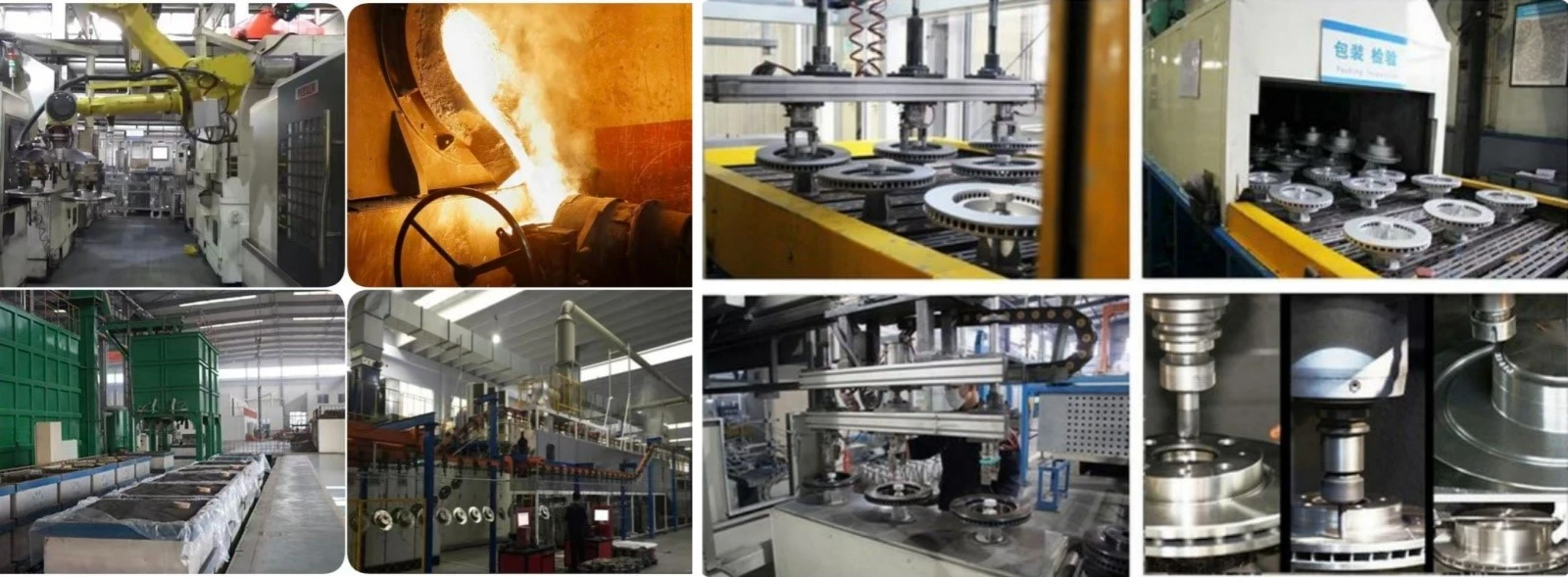

Brake discs may look like bulky chunks of iron, yet their machining accuracy directly determines brake judder and noise. The core equipment in our machining workshop includes vertical CNC lathes and double-disc grinding machines imported from Germany and Japan, with custom tooling fixtures tailored specifically for large-diameter discs of commercial vehicles.

Single-cut forming ensures parallelism: The friction surfaces of Model 3112965 brake discs undergo double-sided finish turning in a single clamping setup. This process keeps the parallelism of the two friction surfaces within 0.03 mm. If the two surfaces are out of parallelism, brake pads will make uneven contact when clamped. At best, braking efficiency suffers; at worst, the steering wheel will shake violently left and right during high-speed braking. Single-clamping machining eliminates such hidden risks entirely.

Dynamic balance as a mandatory standard: Every brake disc must pass through an automatic dynamic balance tester before leaving the production line. We implement 100% full inspection instead of random sampling. Even a tiny excess unbalance on this 38.5-kilogram heavy disc will be amplified into noticeable vibration when the wheel spins at high speeds. We correct each disc to meet specifications by drilling to remove excess weight, guaranteeing smooth operation right after installation without repeated disassembly or additional balance weights.

Material traceability system: Each molten iron batch is assigned a furnace number starting from casting, which is linked to the batch number of the finished discs. Should any quality issues arise later, we can trace back to identify the exact furnace of molten iron used, casting time, and the operator in charge. This system provides reliable quality assurance for fleet customers and demonstrates our confidence in internal quality control.

This Volvo Model B12 bus front brake disc (Part No.: 3112965) weighs approximately 38.5 kilograms per piece. As a heavy-duty auto spare part, impact protection during transit and freight cost control are critical priorities.

Packaging Solution: We use thickened EPE foam inner liners paired with export-grade 5-layer corrugated cartons, with each carton capable of bearing over 50 kilograms. Honeycomb partitions are placed between individual discs to ensure that even if shifting occurs inside ocean freight containers, the packaging will absorb all impact force and prevent the brake discs from colliding with one another. For bulk orders shipped via pallets, we secure the entire pallet load with stretch film and packing straps to avoid pallet disintegration.

Shipment & Forwarder Coordination: The standard production lead time is 30 to 45 days upon order confirmation, with shipments dispatched from our dedicated warehouse in Shandong. We fully accept customer-designated freight forwarders. Please arrange for your forwarder to coordinate with our logistics specialist within 72 hours after order confirmation, and provide the warehouse entry number and sailing schedule. For goods of this weight specification, sea freight LCL (Less than Container Load) or FCL (Full Container Load) represents the most cost-effective solution. We recommend prioritizing shipping lines operated by Maersk or COSCO Shipping for stable vessel space and extensive destination port coverage.

Rush Order Handling: In cases of vehicle downtime awaiting spare parts, we can arrange expedited air freight at an additional freight cost. Air freight packaging will be upgraded with reinforced wooden crates to fully comply with air transport regulations.

Q: When this brake disc is fitted to the B12 model and the brake pads emit smoke after continuous braking on a long downhill slope, will the disc also be written off?
A: That's a good question, and many drivers have encountered this situation. Smoke from brake pads usually means the resin binder inside the pad body decomposes under high temperatures, which has little to do with the brake disc itself. Our model 3112965 brake disc is made of GG25HC material with high heat capacity, capable of absorbing massive amounts of heat without phase transformation. As long as there are no penetrating cracks on the disc surface, the depth of grooves on the disc surface does not exceed 1.5 mm, and the thickness remains above the minimum value of 37.0 mm, the disc can still be reused. However, the smoking brake pads must be replaced, as the friction material has carbonized and lost braking force. It is recommended that you lightly sand the disc surface with fine sandpaper to remove residues when replacing the pads.

Q: Are there any special requirements for tightening the hub bolts when installing this front brake disc?
A: Yes, and they are critical. The recommended tightening torque for the front hub bolts of Volvo B12 buses is 600-650 Nm. A calibrated torque wrench must be used, and the bolts should be tightened gradually in two to three rounds following a diagonal cross sequence. Never use an impact wrench to torque the bolts all at once, as this will cause uneven stress on the bolts and micro-warping of the brake disc mounting surface, resulting in steering wheel vibration during driving. In addition, clean rust and dirt off the hub mounting surface with a wire brush before installation to ensure full contact of the disc. This detail directly affects the lateral runout of the brake disc.

Q: Can this disc directly replace the old disc with OEM part number 3112965? Do other components need modification?
A: It is a direct drop-in replacement with no modifications required. All its key dimensions - outer diameter, center bore diameter, mounting hole positions, thickness and offset - are manufactured using molds strictly based on Volvo's original drawings. You only need to install new brake pads at the same time. Our matching ceramic-based commercial vehicle brake pads are recommended for faster bedding-in and lower noise. Worn old brake pads bear grooves matching the old disc, which will drastically reduce contact area when fitted to a new disc and severely compromise braking performance.

Over the past two years, two trends in the global commercial vehicle braking system sector merit attention from those of us engaged in spare parts trading. The first is lightweight materials. For instance, Volvo's new-generation trucks and buses have begun testing aluminum matrix composite materials and carbon-ceramic brake discs on non-friction structural components. This aims to reduce unsprung mass, cut fuel consumption, and improve handling responsiveness. However, for mature platforms such as the B12, vented cast iron discs will remain the absolute mainstream in the aftermarket for at least another decade, thanks to their cost-effectiveness, reliability, and ease of maintenance.

The second trend is the deep integration of Electronic Braking Systems (EBS) and disc brakes. A growing number of new buses come factory-equipped with EBS, which imposes stricter requirements on brake disc runout and thickness variation. Since sensors monitor wheel speed in real time, insufficient geometric precision of the discs can cause the system to falsely detect wheel lock-up or skidding and trigger unnecessary braking interventions. Therefore, the aftermarket will only demand higher machining precision for brake discs going forward. Factories like ours that adhere to 100% full dynamic balance inspection and tight parallelism control will gain greater product competitiveness.
