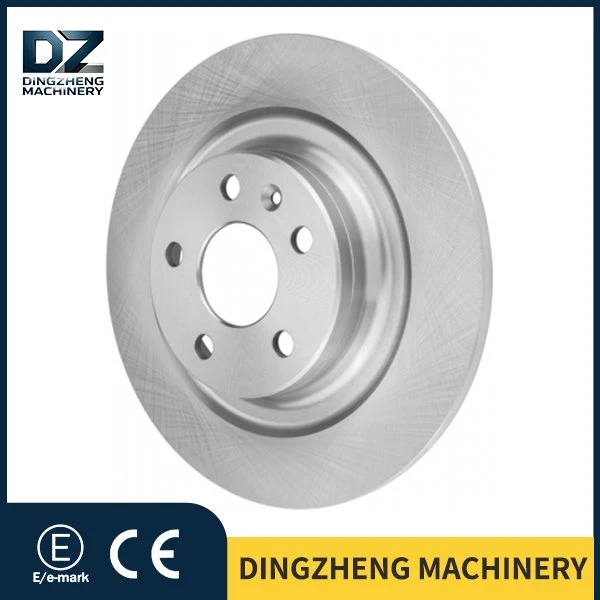

Rear Brake Disc Of VOLVO S90

Choosing parts in the aftermarket is essentially a matter of deciding which manufacturing standards and engineering principles to trust. Part Rear Brake Disc of VOLVO S90 31423721 offers a clear path: it traces directly back to Volvo's original design specifications, replicating the benchmark braking performance of the vehicle at factory delivery through precise dimensions, recognized material standards, and rigorous manufacturing processes.

It does not pursue exaggerated performance claims, but upholds the core values of reliability, consistency and predictability. For vehicle owners who pursue authentic driving feel and attach great importance to long-term system reliability, choosing such a brake disc with clear original factory pedigree is the most rational maintenance for their vehicle, as well as the most fundamental and solid investment in driving safety. Behind this set of numbers lies the silent endorsement of engineering wisdom for the commitment to safety.

There are different corresponding codes for the Rear Brake Disc of VOLVO S90 31423721

Most low-cost aftermarket replacement brake discs for Volvo available on the market only receive a simple black paint coating, which develops extensive rust on the inner side of the wheel hub after just two to three months of use. Corrosion accelerates further for vehicles operated in coastal regions during rainy seasons. We have developed a chromium-free duplex zinc-aluminum anti-corrosion coating process tailored for Par Rear Brake Disc of VOLVO S90 31423721, serving as our core competitive advantage over conventionally coated alternatives.

First, the base layer is formed via dip coating of a zinc-aluminum substrate film with a controlled dry film thickness of approximately 15 micrometers. It achieves Grade 0 adhesion per national standards in the cross-hatch adhesion test, resisting peeling or flaking caused by repeated thermal expansion and contraction during braking. Neutral salt spray testing verifies zero rust formation after 720 hours of exposure, enabling reliable long-term surface protection in rainy Nordic climates and humid coastal areas across China. A high-temperature resistant top sealing coat is applied for the outer layer, bringing the total coating thickness to 23–27 micrometers. The coating maintains stable performance under instantaneous peak temperatures of 380°C during short-duration braking without coking or detachment from high heat.

Second, full-wrap coating is implemented on all non-friction areas, with complete paint coverage across the disc hub, mounting flange and crevices of fixing holes to eliminate rust triggered by trapped moisture in edge gaps. The functional friction surface is intentionally left uncoated to prevent common issues including brake pad contamination from flaking coating debris and abnormal brake squeal during the initial running-in period after installation. The formulation complies with EU REACH environmental regulations and satisfies mandatory anti-corrosion procurement specifications for brake components set by the European aftermarket modification sector.

Third, the coating features mild thermal reflection characteristics that dissipate excess radiant heat generated from brake friction outward, indirectly mitigating thermal fatigue of the brake disc and extending the overall service life of this Volvo rear rotor under Part No. 31423721.

Our brake disc machining workshop is a professional production hub integrating blank finishing, precision shaping, and full-process quality control, focusing on OE-matching brake rotors for passenger cars, new energy vehicles, and performance models. Unlike traditional workshops that only focus on machining, we integrate material storage, equipment maintenance, and pre-delivery inspection into a complete system, ensuring that every brake disc meets global aftermarket standards while improving production efficiency-this is the core advantage that sets us apart from ordinary manufacturers.

All Volvo brake discs with part number 31423721 are fully produced through the complete production chain at the enterprise-owned intelligent casting and precision machining workshop in Shandong without outsourced processing. The entire process from raw material smelting to finished product delivery is traceable via the MES system, which serves as a core reason for repeat and stable orders from overseas purchasers.

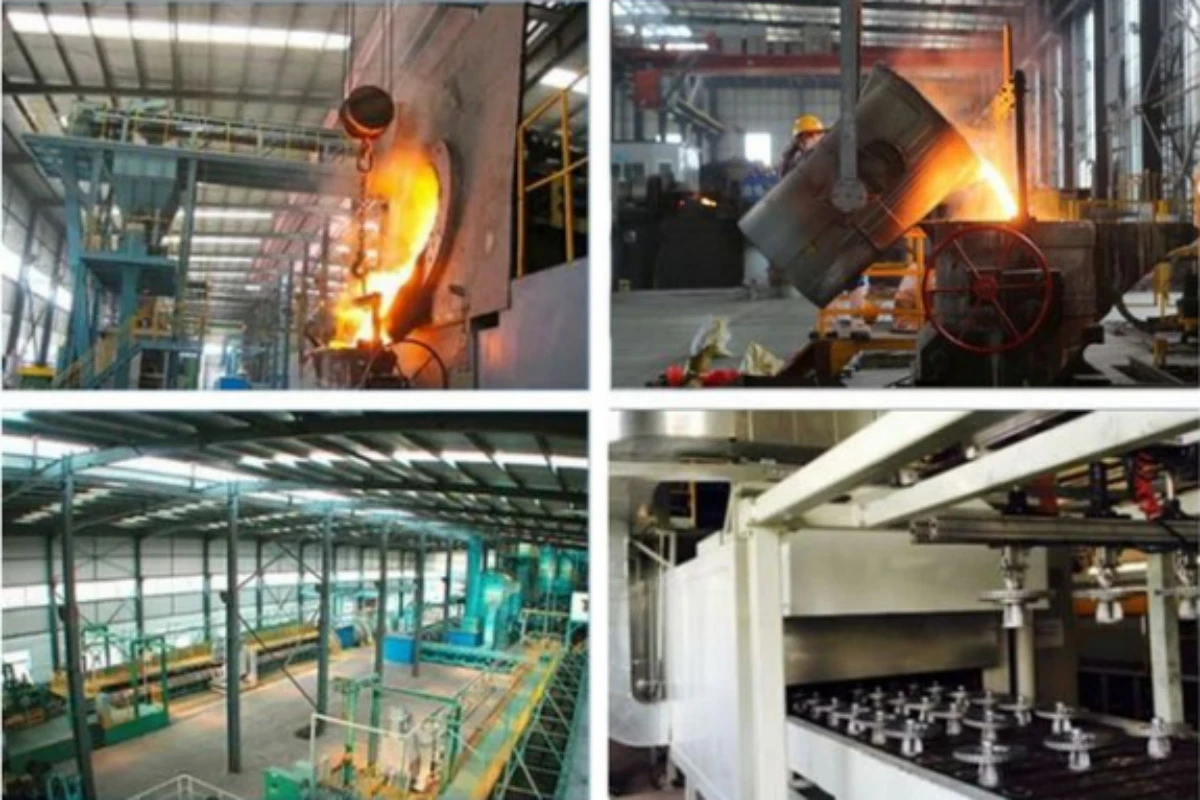

The casting workshop is equipped with fully automatic DISA static molding production lines imported from Denmark. The tolerance for mold shift is controlled within ≤±0.09 mm, cutting the defect rate of blowholes and sand holes on castings by 62% compared with conventional manual sand casting and eliminating potential deformation risks at the rough casting stage. Intermediate-frequency induction furnaces manufactured by Inductotherm from the United States are adopted to maintain constant tapping temperature of molten iron, minimizing fluctuations in metallurgical composition of each batch of GG25 cast iron and preventing inconsistent material quality among brake discs of the same specification.

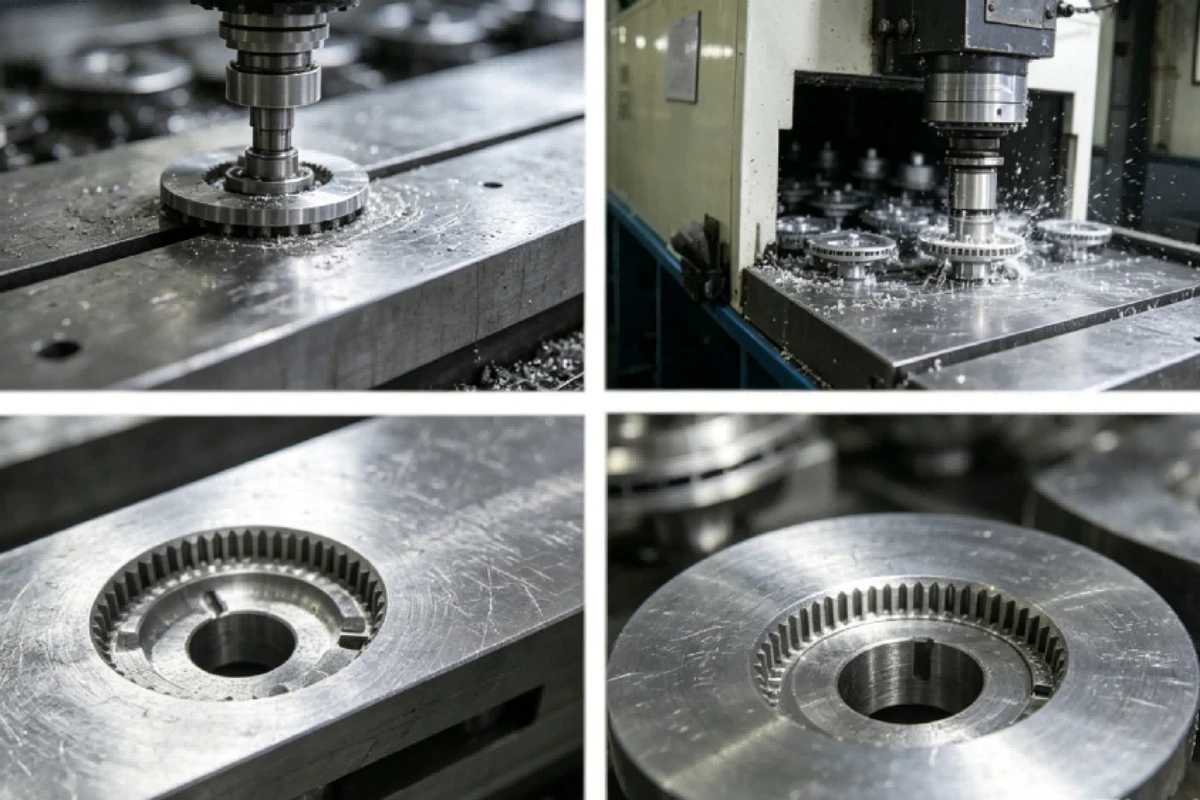

The precision machining workshop is fitted with Doosan vertical CNC lathes from South Korea and fully automatic Schenck dynamic balance inspection equipment from Germany. The machining tolerance for the thickness of Rear Brake Disc of VOLVO S90 31423721 is ±0.04 mm and the lateral face runout is controlled below ≤0.045 mm; every single disc undergoes full dynamic balance testing to eliminate non-compliant products. The enclosed automatic coating assembly line operates under constant temperature and humidity to stop dust and impurities from adhering to coating layers. All finished products pass three sampling inspections covering dimensional accuracy, anti-corrosion performance and dynamic balance before delivery. Manufactured in compliance with the IATF16949 quality management system, these brake discs meet the access inspection standards for auto spare parts in Europe and America.

The primary core of brake disc machining is not simply "thinning", but pursuing the ultimate symmetry and balance of the friction surfaces on both sides. Traditional machining methods may have hidden deviations. Advanced craftsmanship requires taking the median reference plane between the two friction surfaces of the brake disc as the absolute benchmark.

At the initial stage of machining, the spatial coordinates of this plane are determined through precision measurement, based on which the metal allowance to be removed on both sides is calculated to ensure centered and balanced material removal.

This pursuit of "symmetry" aims to eliminate rotational jitter caused by uneven mass distribution, and fundamentally guarantee the linearity and smoothness of the brake pedal feel.

Q1: Does Rear Brake Disc Part No.31423721 fit the 2020 Volvo XC60 B5? Will the disc overheat easily under frequent mountain road braking with heavy loads stowed in the full trunk?
A: This brake disc adopts modified GG25 substrate with superior thermal conductivity compared with conventional cast iron discs. The fully loaded XC60 built on SPA platform bears increased rear axle load yet delivers better heat dissipation during continuous downhill braking. No excessive disc overheating or warping will occur under regular service as long as matching compliant brake pads are installed simultaneously. Frequent overheating and smoking during braking points primarily to sticking brake calipers rather than defective brake discs.

Q2: Is fine abnormal noise during running-in after installing Rotor No.31423721 on the 2019 Volvo S60 a manufacturing defect?
A: Minor rubbing noise within the first 500-kilometer running-in period is normal and will fade as brake pads fully mate with disc friction surfaces. If squeaking persists after break-in completion, inspect brake pad chamfers and wheel bearing clearances. Replace the brake disc only when surface groove depth exceeds 0.5mm or disc thickness drops below the minimum limit of 20.2mm.

Q3: How often should the No.31423721 rear brake disc on daily-used Volvo V60 be inspected and serviced at a repair shop? Is shortened inspection interval required for short-distance off-road trips?
A: For regular urban driving on paved roads, measure disc thickness and lateral runout during routine maintenance every 20,000 kilometers. Cut the inspection cycle to 14,000 kilometers for frequent suburban off-road and wading driving, focusing on rust penetration and disc flatness. Early replacement is recommended if rust pits go deeper than 0.9mm.

The Hidden War: As "sofa-like seats and car fridges" take the spotlight, who is secretly cutting down the thickness of your brake discs?

Nowadays in 2026, the most eye-catching highlights in car showrooms are rotatable large screens, refrigerated car fridges, and seats as comfortable as sofas. However, a life-related "configuration downgrade" is quietly happening in places invisible to consumers - the brake discs hidden inside wheel hubs and spinning with the wheels are becoming increasingly thinner and smaller.

This is no alarmist talk. In April 2026, Li Xueyong, Executive Vice President of Chery Automobile, publicly pointed out: "Many automakers nowadays are making brake discs smaller and thinner."

Behind this warning whistle lies an increasingly fierce price war. As car manufacturers' profit margins are squeezed to the extreme, those inconspicuous "hidden parts" have become the primary targets for cost reduction.

A shocking comparison shows that for a best-selling A-class car, the thickness of its front brake discs plummeted from 32 millimeters in the 2019 model to merely 19 millimeters in the 2024 model, a drop of over 40%. Those dozen millimeters of metal saved may translate to several extra meters of braking distance - or even an irreversible tragedy - in emergency situations.
