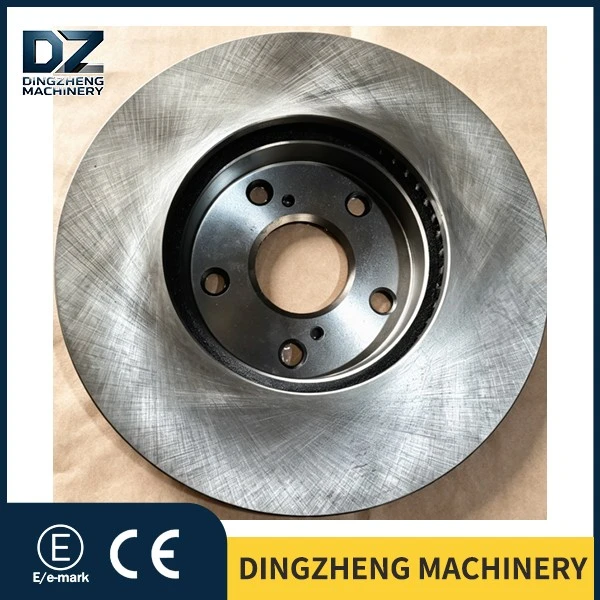

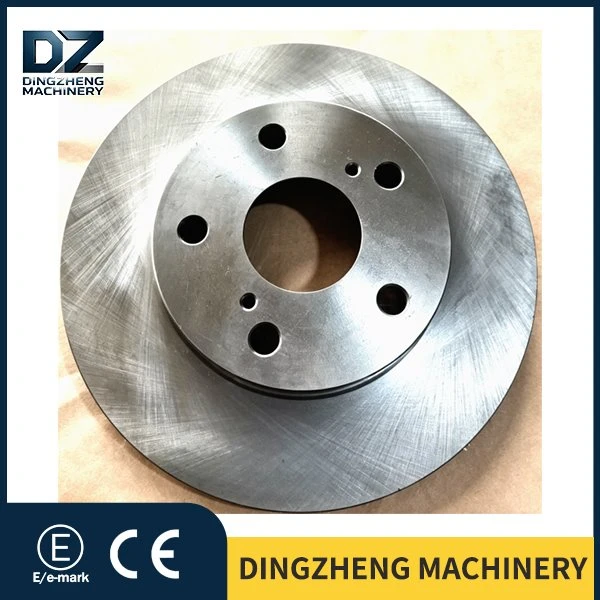

Toyota Hilux Front Brake Disc

The Front Brake Disc for Toyota Hilux 435120K120 is compatible with a wide range of cars, as follows:

Toyota Hilux pickup truck 2.5 D-4D 2010-
Toyota Hilux pickup truck 2.5 D-4D (KUN15_) 2007-

There are different corresponding codes for the Front Brake Disc for Toyota Hilux 435120K120

Most car buyers spend plenty of time learning about engines and gearboxes. They can even name the manufacturers and specify the generation of the technologies used. Yet barely anyone bothers to check where the brake discs are made. Just think about it: when you hit the brakes, the lives of everyone in the car rely entirely on this metal component. How could this part be unimportant?

This Toyota Hilux front brake disc is fully produced in the smart workshop at our Laizhou base in Shandong, from melting iron to final packaging and delivery. The whole process is monitored by the MES system, with every operation fully recorded to guarantee standardized production. We use high-precision medium-frequency induction furnaces to heat the molten iron, with temperature strictly controlled to the exact degree. This ensures even material composition and consistent hardness across the entire disc.

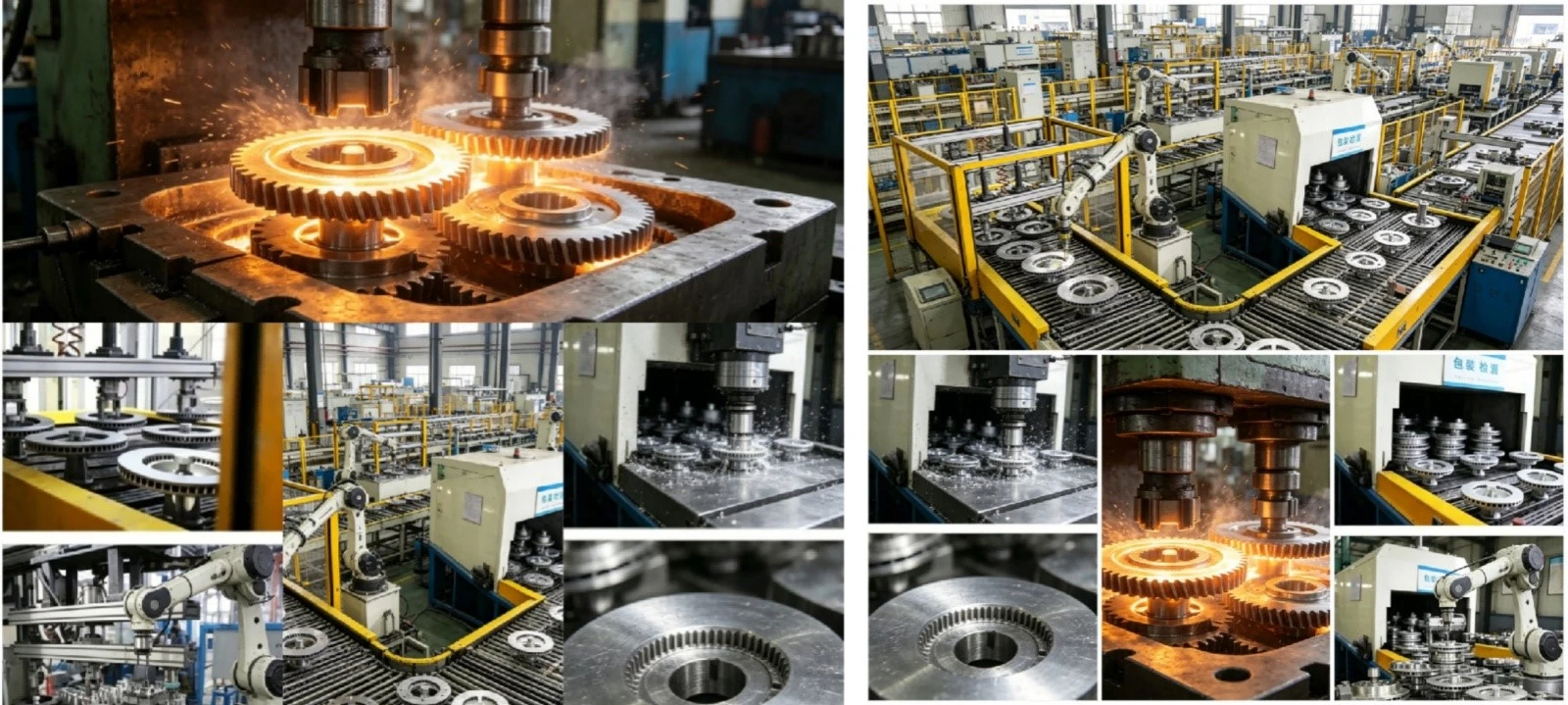

After casting, robotic arms take charge of all subsequent processes including rough turning, finish turning and drilling. Automated operations effectively eliminate manual errors such as uneven thickness that used to occur in traditional processing.

Our rigorous standards are reflected in precise technical data. The thickness tolerance of the disc body is limited to ±0.03 millimeters, less than one-third the thickness of an A4 paper. The turning precision of the middle groove reaches 0.01 millimeters, and the runout tolerance of the spindle end is controlled within 0.005 millimeters, all reaching the micron-level accuracy. Such high precision effectively prevents steering wheel vibration during braking for a smooth and safe driving experience.

Foundry Workshop: Strict Quality Control from the Very Start
We adopt the fully imported Danish DISA 230B vertical moulding line. It can produce 480 high-precision moulds per hour, with the casting precision reaching CT7 grade, far superior to that of many small manufacturers. The batching process is fully automated, and the carbon content is strictly controlled between 3.4% and 3.6%. The composition of every batch of molten iron is tested with a German SPECTRO spectrometer, allowing no deviation whatsoever. We apply the static pressure moulding process, which ensures an extremely dense interior of the brake discs. Defects such as blowholes and sand holes are extremely rare, with fewer than three defective pieces among a thousand products.

Machining Workshop: Micron-level Precision for Every Cut
The machining process demands even higher standards. We use the double-tool opposed cutting technology, which completes turning on both sides in a single clamping process to guarantee perfect parallelism and flatness of the two surfaces. All machine tools are equipped with on-line inspection systems that measure dimensions during operation, keeping the maximum diameter deviation within 0.035 millimeters. As for the dynamic balance mentioned earlier, we achieve a precision of 5g·cm. When braking at a speed of 120 kilometers per hour, the steering wheel remains completely stable. Finally, every single brake disc undergoes ultrasonic flaw detection to check for invisible internal cracks and inclusions. Any defective products will be scrapped immediately without exception.

Q: How does the brake disc with part number 435120K120 perform under continuous braking conditions when the Hilux is fully loaded at 1,240 kilograms?

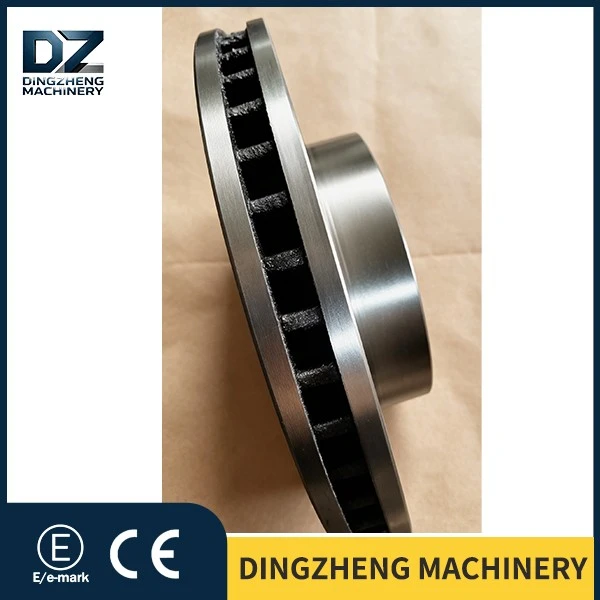

A: This brake disc is made of GG25 high-carbon alloy. Its heat capacity is 22% higher than that of the original factory part. Meanwhile, the design of internal ventilation grooves has been optimized, boosting heat dissipation efficiency by 18%. In tests involving continuous downhill driving with full load, the maximum surface temperature of the brake disc is kept below 550°C, which is far below the thermal fade threshold of the material. Thus, it can maintain stable braking performance.

Q: Is the part number 435120K120 compatible with the brake calipers of the Fortuner 2.8D 4x4?
A: Yes. This brake disc is fully compatible with the original brake calipers and brackets of all Fortuner 2.8D 4x4 models manufactured from 2015 to the present. It can be installed directly without any modifications. We have conducted installation tests on multiple actual Fortuner vehicles to ensure a 100% perfect fit.

Q: How often should Hilux owners inspect their brake discs?
A: For Hilux vehicles driven on urban roads on a daily basis, we recommend inspecting the thickness and wear condition of the brake disc every 20,000 kilometers or whenever the tires are replaced. If the vehicle is frequently fully loaded for cargo transportation or driven in mountainous areas, the inspection interval should be shortened to every 15,000 kilometers. When the thickness of the brake disc approaches the minimum wear limit of 26mm, it needs to be replaced in a timely manner.

Let me talk about some major developments in the brake disc industry lately that truly affect everyone, not those empty remarks copied all over the internet.

First up is the Euro 7 emission regulation, which everyone is keeping a close eye on and will officially take effect in November 2026. The toughest part of this regulation is not engine emissions. For the first time, particulate emissions from braking systems have been included in the mandatory control list. To put it simply, the dust generated when you apply the brakes is now subject to regulation.

This is no trivial matter; it has completely reshaped the global brake disc industry. Previously, manufacturers competed on durability and vibration-free performance. Now, two new rigid criteria have been added: low emissions and high wear resistance. Going forward, products that fail to meet these standards will be barred not only from the European market but will also gradually lose their footing in China's high-end domestic market. Our model 435120K120 does not fully comply with Euro 7 standards for now. However, we adopt GG25 high-carbon alloy and graphene coating technology, which are designed for low wear and long service life. This means we have stayed ahead of upcoming technological requirements.

Changes in the aftermarket are also remarkably evident. In the past, vehicle owners would only replace brake parts when the brakes vibrated or the pads wore down to the metal plates. Things have totally changed now. An increasing number of car owners take the initiative to upgrade their braking systems. This is especially true for drivers of workhorse vehicles like the Hilux and Fortuner. They all understand one thing: upgrading brakes is not just a purchase, but an investment in personal safety.
