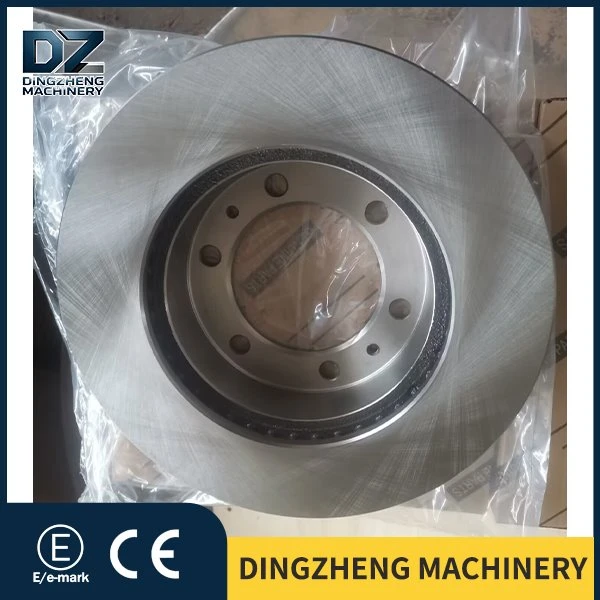

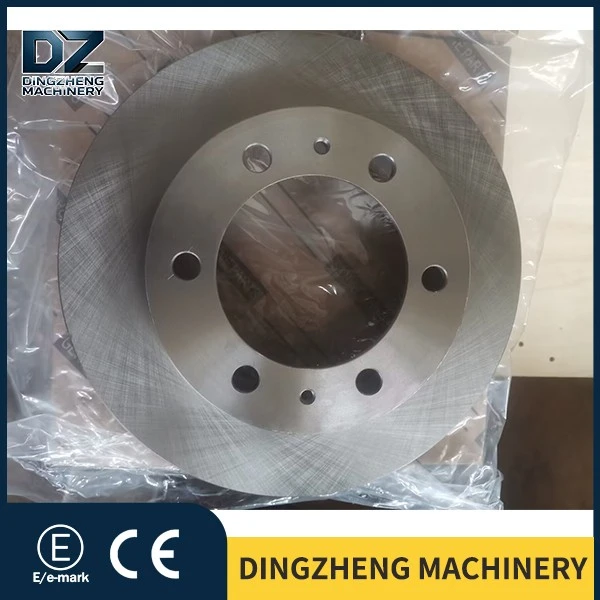

Front Brake Discs for Toyota Fortuner

Wholesalers of Toyota off-road auto parts and repair shops stocking inventory for Southeast Asia, Australia and the Middle East cannot overlook two popular rugged models: the Toyota Fortuner and Hilux. The OE part number 435120K060 is the sole standard OEM part number for the front brake discs (brake rotors) fitted as original equipment to these two vehicles. It is interchangeable with corresponding aftermarket derivative parts 435120K070 and 435120K080. Most low-cost universal brake discs available on the market fail to deliver a 1:1 dimensional match, frequently triggering after-sales issues such as vehicle vibration, caliper misalignment and insufficient heat dissipation once installed.

Many repair shops report that ordinary replacement brake rotors cause steering wheel vibration during braking after traveling only 20,000 to 30,000 kilometers, which stems from excessive impurities in the base material and excessive machining tolerances. Our brake rotor with part number OE435120K060 is cast and machined strictly in accordance with original equipment manufacturer drawings. Its air duct structure is optimized for heavy-load driving of the Fortuner off-road vehicle, high-salinity coastal environments and long downhill mountain roads, enabling stable temperature rise control on the rotor surface during continuous braking. When paired with semi-metallic or low-copper eco-friendly brake pads, it can run stably for 80,000 kilometers without obvious vibration. It is compatible with the low-dust friction matching solution under the new Euro 7 regulations in Europe and America, cutting the return rate of stocked goods for wholesalers by 70% directly.

Most low-cost brake discs on the market feature only a single layer of black epoxy coating and are highly susceptible to rusting after 1–2 months of maritime transport or storage during the rainy season along Southeast Asian coastlines. The detachment of rust layers can also contaminate brake pads, exacerbating braking vibration. For the OE-435120K060 Toyota Crosser brake disc, we have developed a three-layer closed-loop anti-rust composite coating process: only the friction contact surface remains unpainted, while the hub mounting flange, outer perimeter of the ventilation duct, and entire disc surface receive comprehensive protection. The entire process employs water-based eco-friendly coatings that comply with EU VOC emission control standards.

Disassembly of the three-layer anti-corrosion coating system (with specified technical parameters): First layer: Epoxy zinc-rich primer (film thickness 0.035–0.06 mm) – the initial base coat applied after shot blasting of the substrate, containing ≥80% zinc, which penetrates micro-pores in cast iron to prevent moisture and chloride ion penetration, thereby eliminating pitting corrosion at its source; meets the ISO 9227 standard for neutral salt spray resistance (no red rust formation after 240 hours).

Second layer: The acrylic polyurethane intermediate isolation layer seals coating pores, enhances surface paint adhesion, and mitigates coating detachment risks caused by minor impacts during transportation or application. With a temperature range of-40°C to 220°C, it prevents peeling or paint flow issues even under prolonged high temperatures on mountain roads.

Third layer: Water-based UV-cured topcoat (core differentiated process). While mainstream epoxy coatings in the industry only provide 150 hours of salt spray protection, the UV-cured topcoat achieves instant curing under a 365 nm UV lamp, resulting in a dense film free of pores. It demonstrates no rust or blistering after 336 hours of neutral cyclic salt spray testing, with protection performance far exceeding that of conventional spray-applied brake discs. Wholesale suppliers in Australia, Malaysia, and Thailand report that brake discs stored outdoors in warehouses for six months show no signs of surface rust, significantly reducing returns and exchanges at retail outlets.Full container sea freight departs from Qingdao Port to Southeast Asia and Australia. The voyage takes a minimum of 45 days amid high-salt and high-humidity marine conditions. Half of brake discs with ordinary coatings arrive with rusted flanges, leading to customer rejection and extremely high loss costs. Our OE435120K060 brake discs feature a three-layer UV composite anti-rust coating, individually wrapped with OPP pearl cotton. Entire containers arrive free of rust upon unpacking. Wholesalers skip secondary anti-rust treatment, and repair shops can install the discs straight out of the box, cutting labor costs for preprocessing. Furthermore, the UV coating contains no heavy metals and fully complies with Europe's Euro7 environmental access standards for auto parts, eliminating the need for extra coating compliance tests for exports to the EU.

Compatible Vehicle Models

This brake disc is compatible with a wide range of car models, as follows:

Toyota Hilux Pickup Truck, Aug 2004 - Feb 2016
Toyota Fortuner (_N5_, _N6_) 06/2004-09/2015

Cross Reference Part Number Table

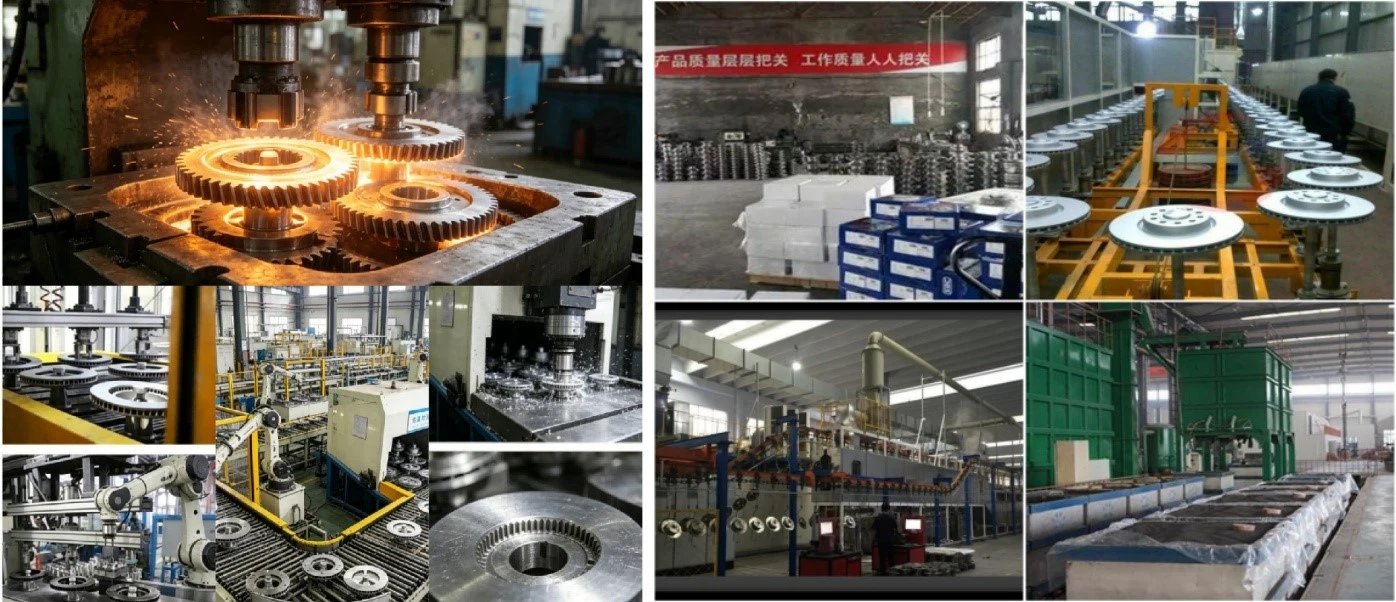

We own a standardized brake disc production workshop in Shandong covering an area of 12,000 square meters. We have obtained IATF16949 automotive component production certification and E-MARK R90 EU brake safety certification for the entire production process. A dedicated processing line for Japanese off-road vehicle brake discs is specially set up in the full production line. The Toyota OE435120K060 Hilux Revo brake discs are manufactured on a fixed exclusive line without mixed processing with small passenger car discs, so dimensional accuracy deviations are controlled from the source.

Foundry Section: Automated static pressure molding production line with real-time on-line spectrometric testing of HT250 molten iron. Test reports are retained for base material of each furnace to eliminate material adulteration. All castings undergo 100% shot blasting cleaning and fluorescent penetrant inspection to detect internal shrinkage cavities, cold shuts and hidden cracks. Non-conforming castings are scrapped directly without entering the machining process.

CNC Machining Section: German twin-tool opposed CNC lathes machine both friction surfaces simultaneously in a single clamping setup, eliminating parallelism errors caused by secondary clamping. Custom tooling fixtures are developed exclusively for OE435120K060 with dimensional tolerances strictly controlled at ±0.035mm, compared to the general industry standard of ±0.08mm, doubling machining precision.

Precision Inspection Section: Every 435120K060 brake disc undergoes full inspection of three core dimensional control indicators off the production line with accurate and error-free data:
1. Lateral face runout of friction surface ≤0.05mm and Disc Thickness Variation (DTV) ≤0.009mm to eradicate the root cause of brake judder;
2. Cross-hatch cutting on friction surfaces delivers surface roughness Ra ≤1.6μm for even brake pad contact, lowering dust generation and meeting Euro 7 emission standards;
3. Batch sampling of bolt hole coaxiality and central positioning roundness via coordinate measuring machines. Measuring tools complete monthly MSA repeatability calibration with GR&R ≤10%.

Automated Coating Section: Enclosed dust-free spraying line equipped with a UV curing tunnel maintaining constant temperature and humidity 24 hours a day to prevent coating defects from dust adhesion. Coating samples from each batch are archived for salt spray testing, and corresponding test reports can be supplied to purchasers alongside goods for customs clearance.

There are a total of 12 control points covering incoming raw materials, casting, machining, coating, finished product inspection, packaging and warehousing. Each OE435120K060 brake disc is laser-engraved with the OE number, production batch and quality inspection code to enable full life-cycle traceability. For full-container orders from major overseas clients, we can simultaneously provide material spectrum reports, salt spray test reports, IATF16949 certification documents and E-MARK certificates to ensure smooth customs clearance in Europe and Australia without any obstacles. Unlike small workshops that lack inspection procedures and adopt mixed-material production, our dedicated quality control system can significantly reduce end-user warranty compensation costs for wholesalers.

Our production base is located in Laizhou, Shandong Province, with all goods stocked in local warehouses. We maintain a permanent stock of 5,000 pieces of Toyota OEM brake disc OE435120K060 for Fortuner, featuring flexible lead times and full trade terms including EXW factory pickup, FOB Qingdao Port, CIF/CFR destination port, and DDP door-to-door delivery.

Consolidated LCL orders (for small and medium repair shops, small-batch purchases by cross-border e-commerce merchants)
Goods insufficient to fill a full container are consolidated to the LCL warehouse in Qingdao. Separate outer cartons are marked with OE435120K060 by zone to prevent mixed-up and misdelivered goods. Moisture-proof desiccants and edge protectors are equipped for goods to avoid collision and damage during transit. Consolidation of multiple types of brake discs in one container is supported with no extra sorting fees charged.
Basic Standard Warranty: 80,000 kilometers or 24 months, whichever comes first. If the product exceeds factory machining tolerances, suffers substrate thermal cracking, or develops widespread batch rust on the coating, replacement items will be shipped free of charge, with the factory covering all round-trip logistics costs.

Q1: Is brake disc OE-435120K060 only compatible with Toyota Fortuner? Can it be used on Hilux?
A: This is a ventilated front axle exclusive brake disc. According to original factory drawings, it fits the front axles of all Fortuner models and Hilux 2.4/2.7 petrol and diesel versions. Rear brake discs have different part numbers and cannot be interchanged. Land Cruiser, RAV4, Corolla and other passenger vehicles have mismatched chassis hub mounting dimensions. Forcible installation will cause caliper deviation and extended braking distance. Be sure to distinguish part numbers for front and rear axles of different vehicle models when stocking goods.

Q2: What should the tightening torque be set to during installation? Will incorrect torque cause brake shuddering?
A: The official standard installation torque is 112 Nm. Insufficient torque will lead to loose bolts after long-term driving, disc deviation and high-speed shuddering; excessive torque will directly deform the disc and cause excessive thickness variation. We print torque reminders on all outer shipping cartons, provide repair shop installation manuals to wholesalers simultaneously, and distribute them to retail stores to standardize construction operations.

Q3.At what millimeter thickness must the 435120K060 brake disc be replaced? How to determine the single-side wear limit?
A: The brand-new thickness is 24.9 mm, and the minimum safe limit thickness is 23 mm. Direct replacement is recommended when the total wear loss exceeds 1.9 mm. If grooves with a depth of ≥0.5 mm, radial thermal cracks, or end face runout exceeding 0.08 mm appear on a single disc surface, the brake disc must be replaced even if its thickness meets the standard to eliminate the risk of brake failure on mountain roads.

The EU Euro 7 emission regulations will enter into force mandatorily for new vehicle models on November 29, and cover all passenger cars and light off-road vehicles on sale by the end of 2027. For the first time, they impose controls on PM10 fine particulate matter from brake wear: the limit is 7mg/km for fuel and hybrid vehicles, and 3mg/km for pure electric vehicles. Conventional low-quality brake discs made from recycled cast iron produce more than three times the permitted dust emissions. European wholesalers holding stocks of old, low-cost discs face risks of customs clearance rejection and unsold inventory backlogs. The OE part number 435120K060 is manufactured with low-carbon precipitated HT250 base material paired with low-copper brake pads, which can consistently meet Euro 7 emission limits. It serves as the primary compliant replacement product for Toyota off-road vehicles in Southeast Asian and European markets.
