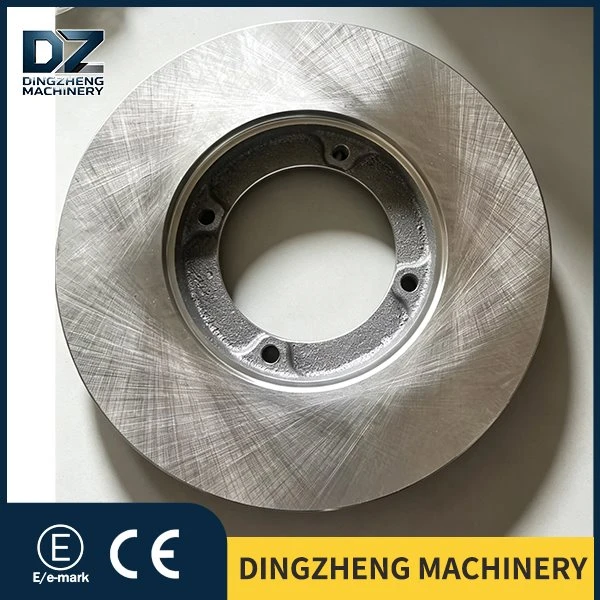

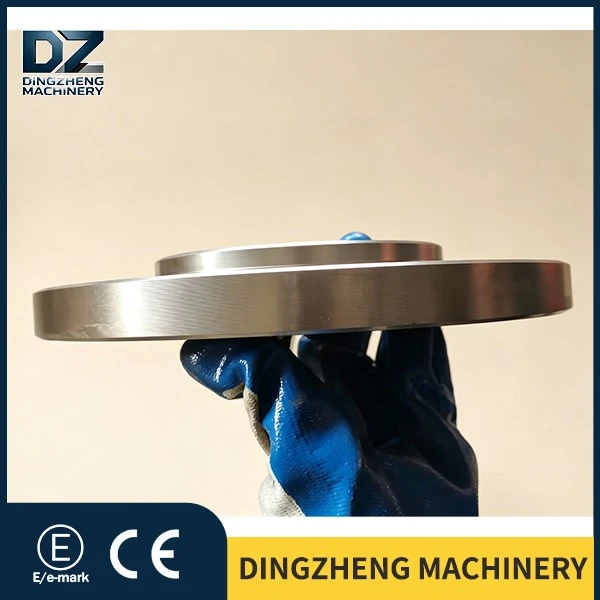

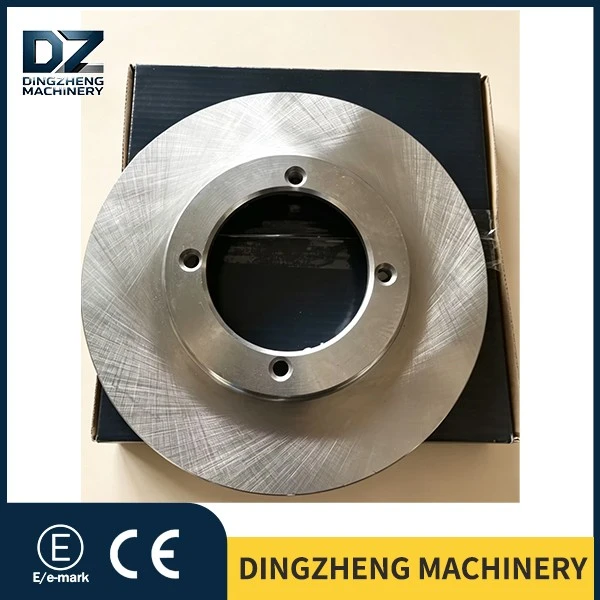

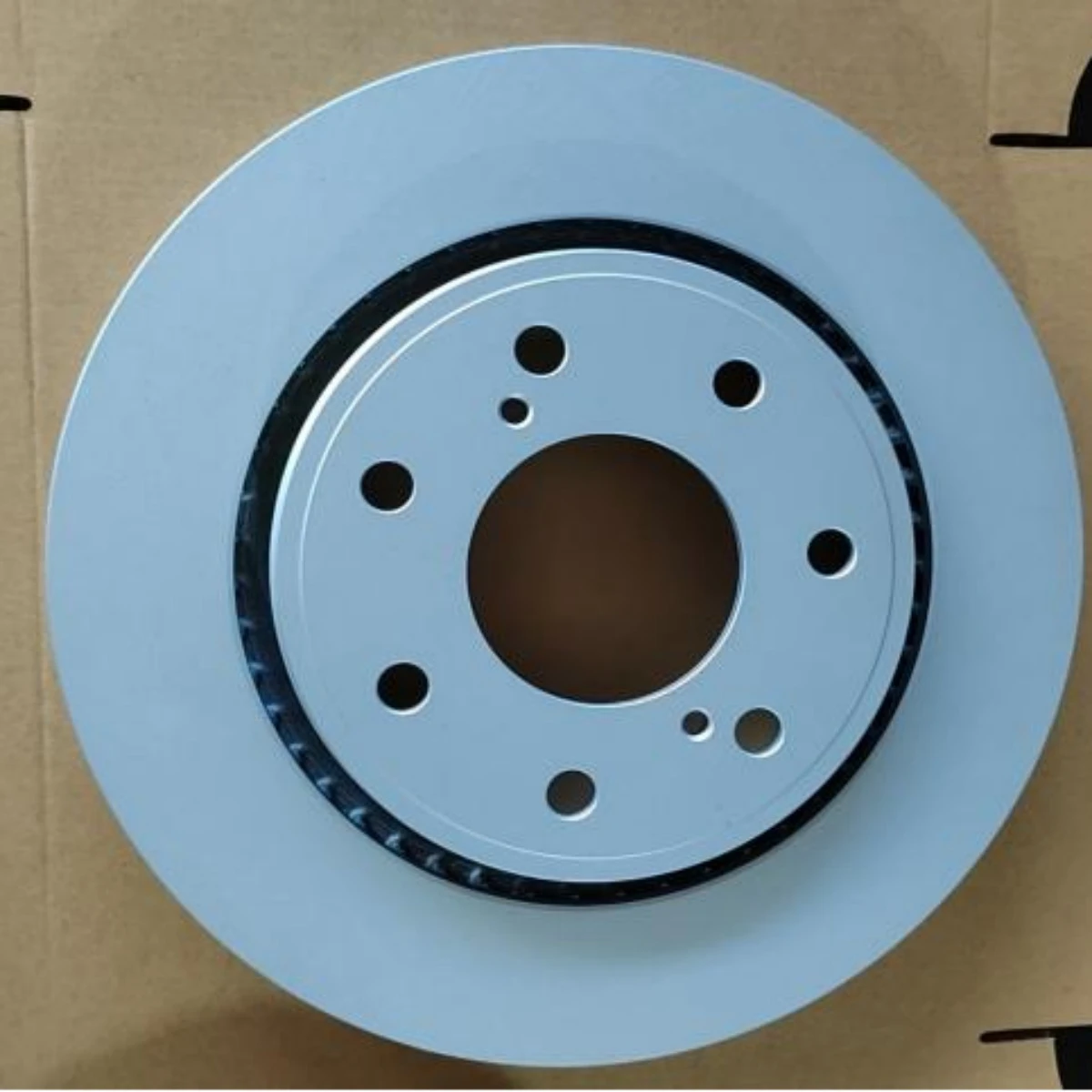

Rear Brake Disc for TOYOTA AVANZA

The Toyota Avanza F601/F602, a mainstream family and ride-hailing MPV in Southeast Asia and the Middle East, holds significant market presence. The OE-43512BZ020 is a dedicated rear brake disc for the first-generation Avanza models (2003–2011) and also fits seamlessly with all models of Daihatsu Xenia built on the same platform.

Commercially available molded brake discs often exhibit inaccurate tolerances, leading to common issues such as brake vibration, uneven wear, and abnormal noises during installation, with high repair rates. Our OE-43512BZ020 rear brake disc strictly adheres to original factory specifications, featuring a solid-disc structure designed for frequent start-stop operations in urban environments. Tailored for the high-salinity, high-humidity conditions of Southeast Asia and the demands of high-frequency commercial vehicles, it optimizes disc surface flatness and friction uniformity, ensuring stable braking performance and minimal wear. Under normal operating conditions, it delivers a service life of up to 80,000 kilometers, making it the preferred high-reliability brake rotor for batch replacements in overseas markets.

Conventional Toyota Avanza rear brake discs on the market employ only a single-layer epoxy coating. Under harsh storage conditions in ocean shipping environments and high-salt, humid environments in Southeast Asia and the Middle East, the disc surface and flange are highly susceptible to rusting. Rust detachment can scratch brake pads, cause abnormal braking noises, and in severe cases lead to batch returns. For the specialized export application specified in OE-43512BZ020, our factory utilizes a three-layer closed-loop water-based composite anti-rust coating that fully covers all non-friction areas, effectively addressing corrosion challenges in overseas markets.

First Layer | Zinc-rich epoxy primer (0.035–0.06 mm): After sandblasting to remove rust, the HT250 substrate is coated with a high-zinc primer containing ≥82% zinc content, which penetrates and seals cast iron micropores to isolate chloride ions from moisture erosion. Meeting ISO 9227 salt spray requirements for 240 hours without red rust formation, it effectively prevents pitting corrosion and aging.

Second Layer | The acrylic polyurethane isolation layer seals the pores of the primer, enhancing the adhesion and impact resistance of the topcoat. With a temperature range of-40°C to 210°C, it is suitable for frequent start-stop operations in urban environments and ensures long-term performance without peeling, bubbling, or paint detachment.

Third Layer | UV-cured water-based topcoat (core differentiation): Unlike conventional bakeable paints, it employs 365 nm ultraviolet instant curing, resulting in a dense coating free of pores and resistant to corrosion and blistering even after 336 hours of cyclic salt spray testing. Real-world tests by Southeast Asian clients show no rust formation during six months of outdoor storage, eliminating the need for secondary rust removal or polishing at retail locations and significantly reducing after-sales labor costs.

The entire coating system complies with EU VOC environmental standards and Euro 7 emission regulations, ensuring seamless customs clearance. Each individual sheet features independent OPP pearl fiber protection, perfectly designed for 25–38 days of ocean shipping while maintaining complete rust-proof integrity upon arrival.

All dimensions and performance data are strictly calibrated and manufactured in accordance with industry standards.

This rear brake disc is applicable to multiple vehicle models with stable compatibility and accurate fitting size. The detailed applicable models are listed below:

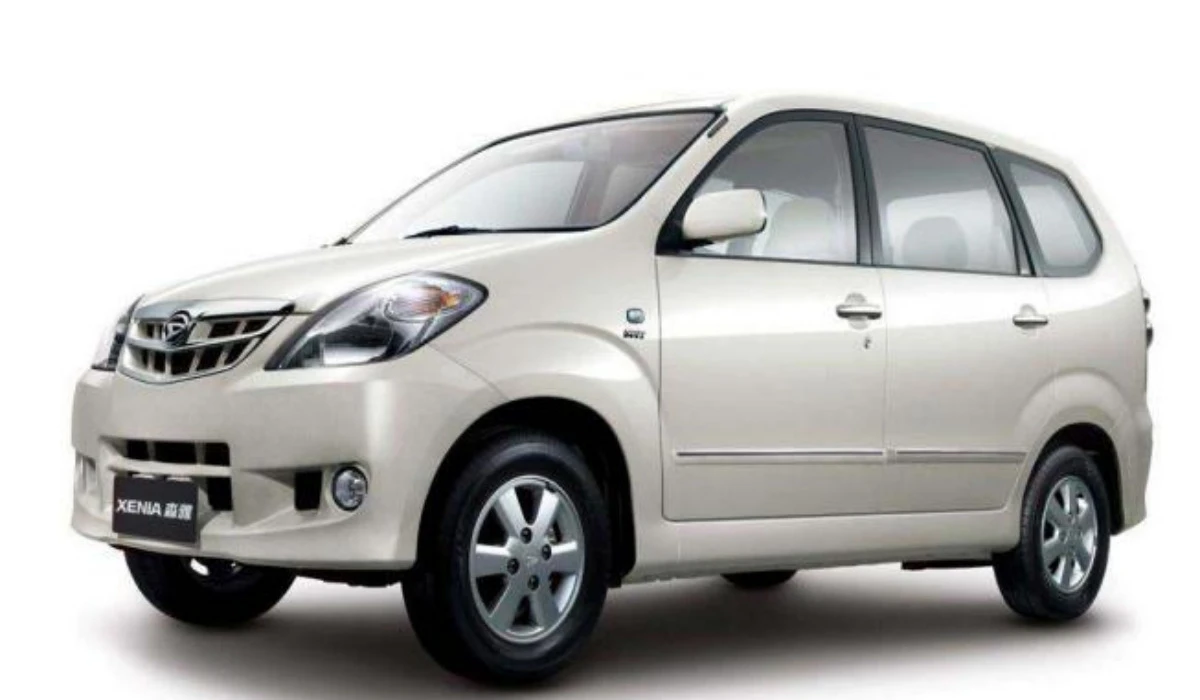

TOYOTA AVANZA F601,F602 2003.12-

This product corresponds to a variety of mainstream brand part numbers and OE codes, which can perfectly replace the original parts. The detailed cross-reference information is as follows:

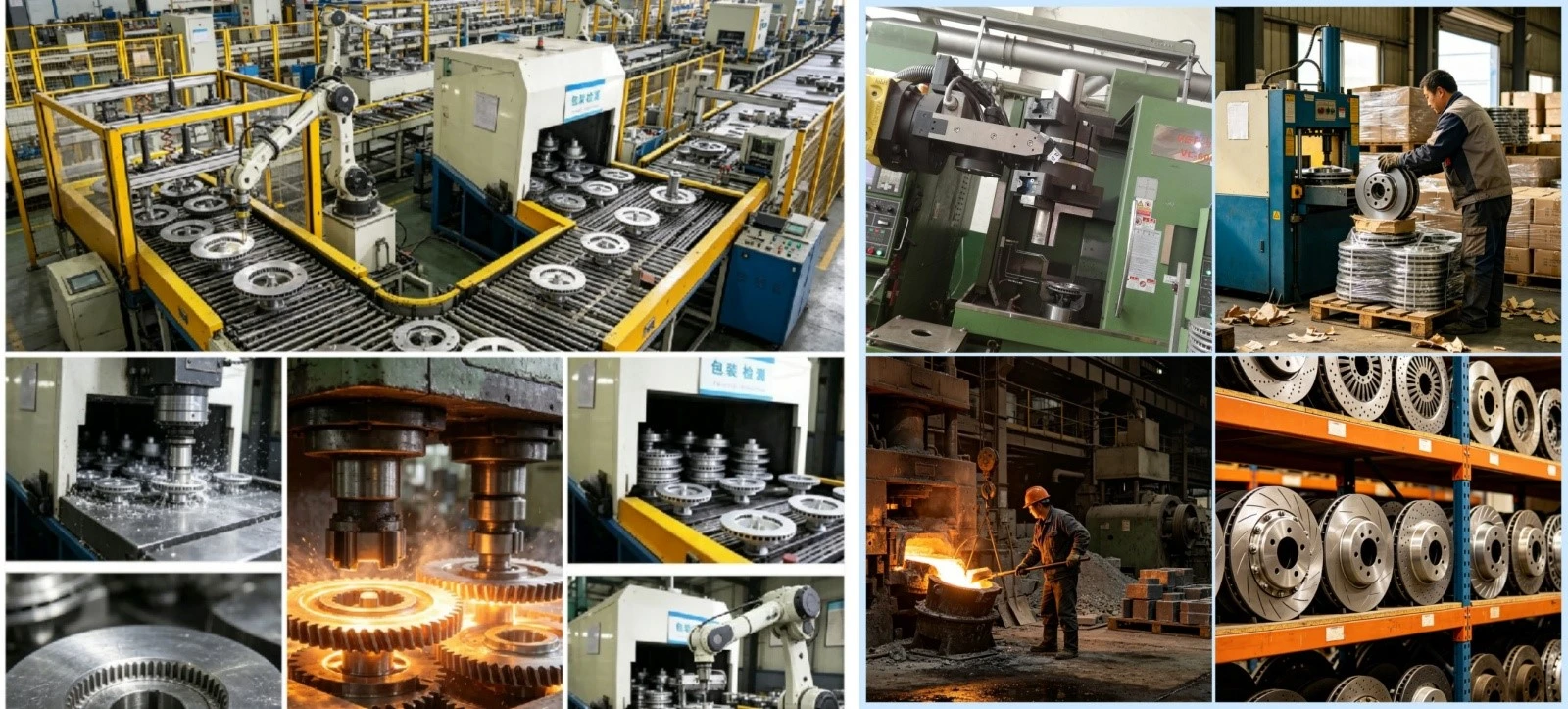

The production facility is a standardized specialized manufacturing base for brake discs, holding full IATF 16949 automotive parts manufacturing system certification and E-MARK R90 EU brake safety certification. A dedicated production line has been established specifically for Southeast Asian MPVs, with the OE-43512BZ020 rear brake disc for Toyota Avanza manufactured exclusively on this line-without concurrent processing of off-road large-discs or European/American sedan discs-thereby eliminating dimensional variations and quality inconsistencies caused by mixed production from the outset.

Equipment specifications and quality control details for the casting process: A fully automated static pressure molding production line; real-time spectral analysis of HT250 molten iron in each batch; material reports archived per batch to prevent the use of substandard recycled materials. All castings undergo 100% shot blasting for oxide removal followed by fluorescent penetrant testing; castings with shrinkage cavities or hidden cracks are immediately scrapped and not processed further.

CNC precision machining stage: Equipped with a German-made dual-axis synchronous CNC lathe that performs single-stage clamping for friction surface formation, eliminating parallelism errors caused by secondary clamping. Paired with the custom OE-43512BZ020 fixture, achieving an overall dimensional tolerance of ±0.03 mm-superior to the industry standard of ±0.08 mm. Cross-grid cutting on the disc surface yields a roughness of Ra ≤ 1.6 μm, ensuring uniform brake pad adhesion and stable braking performance.

Full Product Inspection Stage: Each OE-43512BZ020 unit undergoes three mandatory core inspections upon leaving the factory: end face runout ≤0.05 mm, thickness variation (DTV) ≤0.009 mm, and bolt hole coaxiality verification. The product is laser-marked with an OE number, batch number, and quality inspection code to ensure full-process traceability.

Clean spray processing stage: The process is conducted in a sealed cleanroom with constant temperature and humidity, where three layers of anti-rust coatings are applied to eliminate coating defects caused by dust; finished products are stored in batches along with salt spray test reports for use by cstomers during customs clearance and quality inspection.Compared with small workshops that lack comprehensive inspection processes or use mixed-material production methods, the dedicated production line combined with end-to-end quality control keeps the post-sales failure rate of the OE-43512BZ020 below 1%, making it suitable for long-term inventory management and bulk procurement by overseas wholesalers and chain repair shops.

The warranty is applicable to OE-43512BZ020 rear brake discs installed on the rear axles of standard Toyota Avanza F601/F602 and Daihatsu Xenia models with standard 92Nm torque. Damage caused by man-made bumping, off-road modified driving and non-standard installation is not covered by the warranty.

Q1: Can OE-43512BZ020 rear brake disc be used for new Toyota Grand Avanza models?
A: No. This model is exclusively adapted to the old Avanza F601/F602 and Daihatsu Xenia (2003–2011). The new Grand Avanza and Veloz after 2012 use 43512-BZ180/BZ190 brake discs with different installation hole positions and disc body thickness, which are not universal and cannot be installed by force.

Q2: What is the standard installation torque for this 43512BZ020 rear brake disc? Will incorrect torque cause failure?
A: The standard installation torque of Toyota Avanza rear axle is 92Nm. Excessively low torque will cause loose bolts and rear wheel jitter during braking; excessively high torque will squeeze the disc body to cause deformation and uneven thickness. We will attach a professional installation guide with each batch of goods to standardize the construction of repair shops.

Q3: Will the multi-layer anti-rust coating of 43512BZ020 brake disc fall off and stick to the brake pads?
A: The friction working surface of the OE-43512BZ020 brake disc is completely bare without any coating. All anti-rust coatings only cover non-friction parts such as flange and outer ring. The coating is resistant to high temperature of 210℃, which is far higher than the daily braking temperature of urban vehicles. It has passed 3000 bench braking cycle tests without peeling and falling off, and will not affect braking performance.

With the full implementation of Euro7 emission regulations, global auto parts environmental supervision has been further upgraded. The EU has comprehensively tightened the detection standard of brake PM10 particulate emissions, and low-quality recycled cast iron brake discs with excessive dust have been blocked from customs clearance. At the same time, Southeast Asian countries such as Thailand, Indonesia and Malaysia have improved the import access standards for brake parts, forcing importers to provide salt spray anti-corrosion test reports and factory qualification certificates. Single-layer spray paint uncertified universal discs have gradually lost market competitiveness, and high-standard anti-rust and certified OE-spec brake discs have become the mainstream stocking choice for local wholesalers.

In addition, global chain auto parts groups have fully promoted traceable procurement, eliminating small factory products without batch quality inspection records. The OE-43512BZ020 Toyota Avanza rear brake disc, with complete certifications, full-process traceability and high anti-corrosion performance, perfectly adapts to the new global industry procurement standards.
