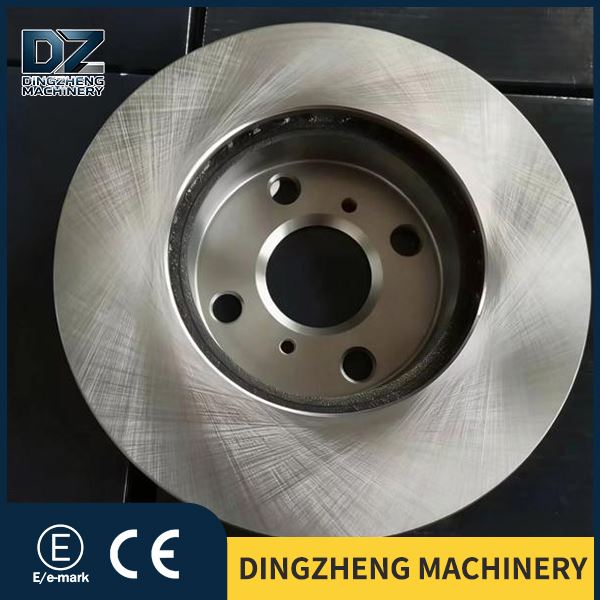

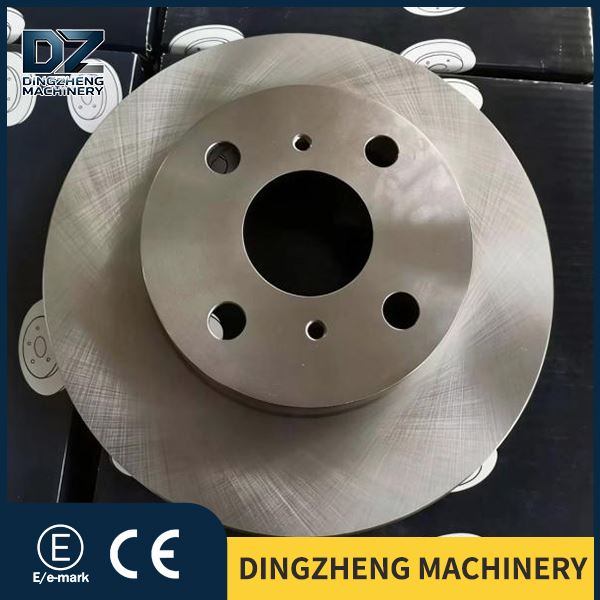

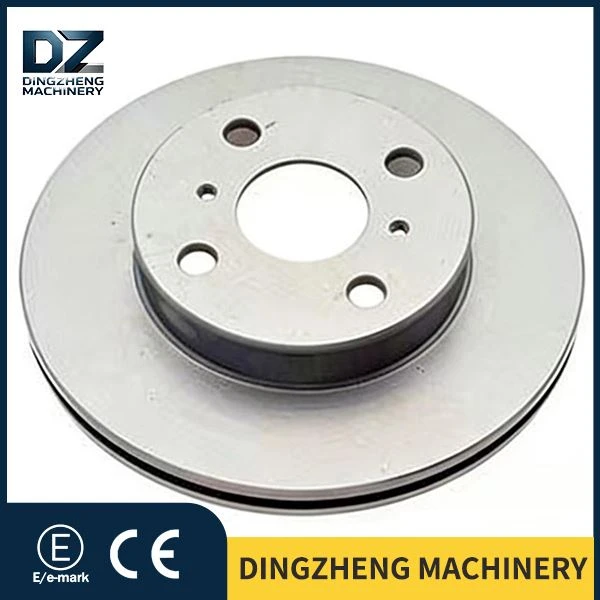

Toyota Corolla Front Brake Disc

This front brake disc with OE number 43512‑12330 fits older‑generation Toyota Corolla E90 sedan, covering model years 1987‑1994, widely seen across Southeast Asia, Africa and Latin‑American second‑hand car markets. Most repair shops pick this rotor for routine front‑axle brake overhauls, as it drops right into place without any extra drilling or modification work.

We cast these rotors from premium G3000 high‑carbon grey cast iron, a material that holds up really well for daily city stop‑go traffic and short highway runs. Real‑world workshop feedback shows it cuts down annoying brake squeals and pedal shake that often pop‑up after fitting cheap replacement discs. Every finished piece goes through strict dimensional inspection: lateral run‑out kept ≤0.05 mm, surface roughness Ra ≤1.6 μm, dimensional tolerance controlled at ±0.035 mm, thickness variation DTV ≤0.009 mm. Minimum discard thickness marks are clearly stamped on disc edge for garage technicians quick reference, safe wear limit set at 16 mm.

Each batch completes dynamic balance test before packing, this step largely cuts steering wheel vibration during high-speed braking. Manufactured following IATF-16949 quality system standards, parts satisfy ECE-R90 aftermarket requirement for export shipments. For wholesalers and repair network buyers, this direct-OE-match rotor brings stable field performance and solid service life up to 80 000 km under normal road conditions. It works perfectly for bulk stock-up, mixed container shipments and local retail repair jobs.

The front brake disc for Toyota 4351212330 is compatible with a wide range of cars, as follows:

There are different corresponding codes for the front brake disc for Toyota 4351212330

Listen carefully: this brake disc isn't designed for towing or off-road use – it's purely built for everyday commuting. Whether it's gently braking during morning traffic jams, smoothly decelerating at traffic lights, or occasionally applying a sudden brake on the highway – these scenarios account for 99% of all driving situations for Corolla owners.

These brake discs feature high-carbon graphite friction pads made of HT250 material, whose friction surfaces effectively suppress minor vibrations. Combined with exceptional machining precision – with the end-face runout controlled within 0.05 mm – the brake pedal response remains highly linear even during low-speed braking, avoiding any jerky or uneven feel. Although the ventilated disc design is less noticeable in urban driving conditions compared to on highways, its superior heat dissipation performance proves particularly advantageous when navigating long downhill mountain roads or when hauling a full load with an entire family. After continuous braking, the brake pedal does not gradually soften in feel, and thermal fadeout occurs much later than with solid brake discs.

For family sedans like the Toyota Corolla, controlling brake noise is of utmost importance. Many Corolla owners have reported experiencing a sharp screeching sound when braking at low speeds after installing cheaper aftermarket brake discs. The root cause lies in insufficient graphite content combined with inadequate surface roughness treatment. By maintaining the surface roughness Ra value of our brake discs below 3.2 μm, and leveraging the inherent vibration-damping properties of the HT250 material, brake noise is virtually eliminated during routine use after the initial wear-in period.

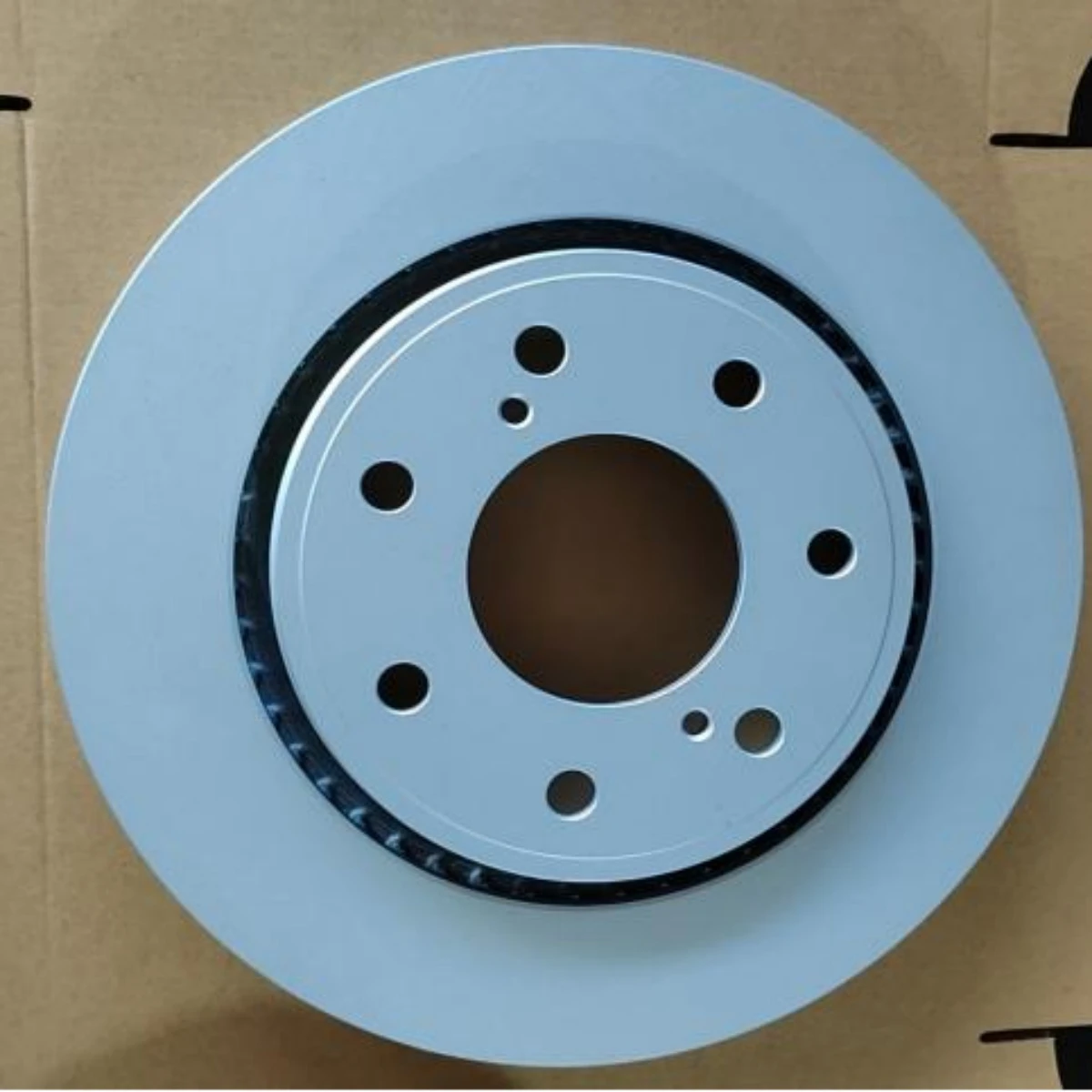

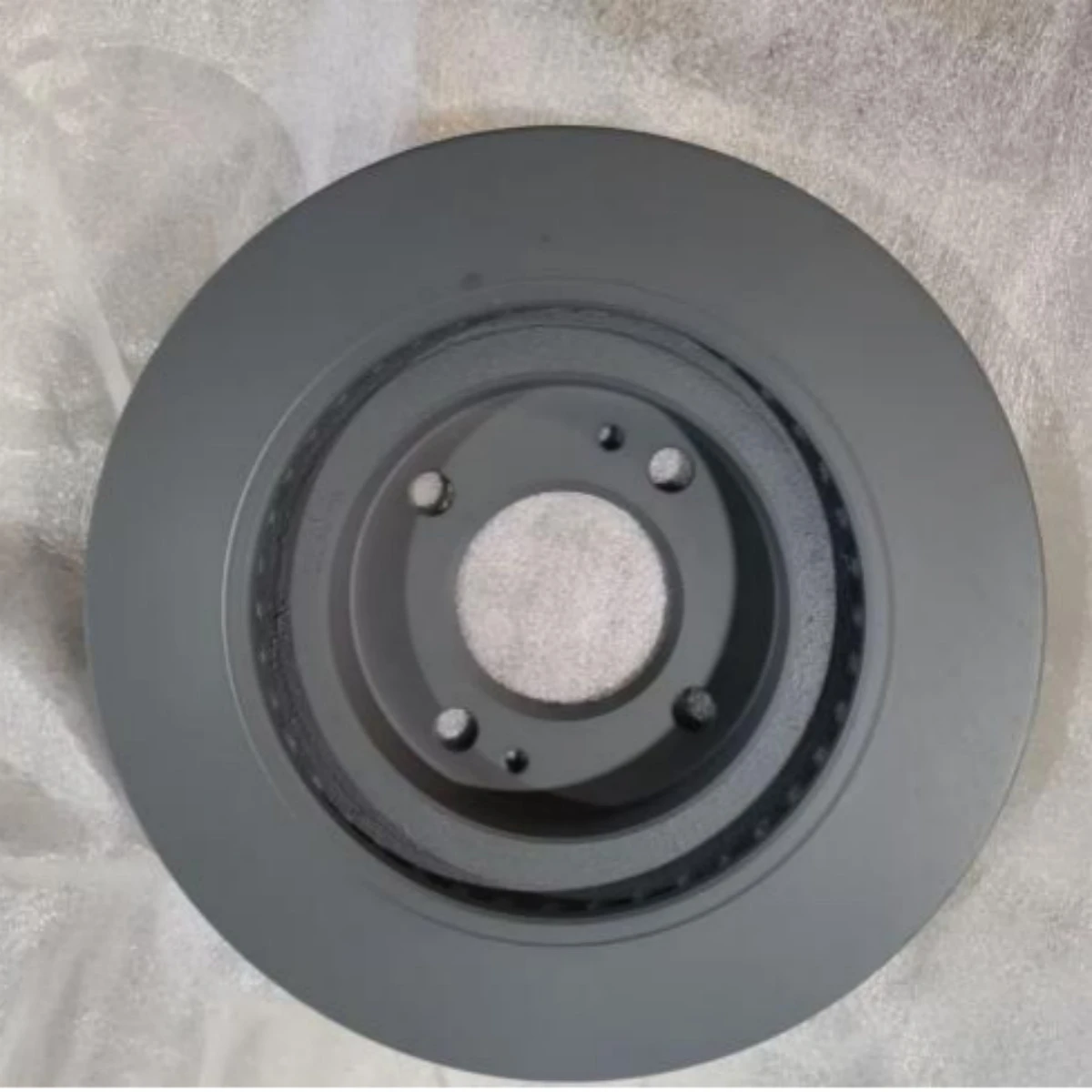

Surface Treatment – New vehicles should not come with rust upon delivery; the same applies to family cars.
For vehicles in the Corolla segment, the wheel design is generally less flamboyant than that of luxury SUVs. Nevertheless, the edges of the brake discs and the central mounting surface remain exposed. Moreover, the road conditions that family cars encounter daily are hardly any better than those faced by off-road vehicles – whether driving in rainy weather, navigating roads treated with de-icing agents in winter, or navigating coastal areas subject to corrosive salt spray.

Applying a layer of conventional rust preventive oil to the brake discs is cost-effective, but after just two to three months, red rust will begin to form. Additionally, the oil must be wiped off with a cleaning agent before installation; any remaining oil film can also affect the braking response when the brakes are first applied. We use a water-based zinc-aluminum coating system for the front brake discs of the Toyota Corolla (Part Number: 4351212330). This coating process is benchmarked against the GEOMET® 360 coating 34 – a product specifically developed for corrosion protection on brake discs.

During spraying, we implement zoned control:
-Friction surface: Apply just a single layer of ultra-thin coating. Once the vehicle is driven and the brakes are applied several times, this coating will be evenly worn away by the brake pads – without affecting braking performance in the slightest.
-Non-frictional areas (central mounting surface, disc edge, inner and outer walls of ventilation channels): Coated with a standard thickness of 5–20 μm to form a complete rust prevention barrier. After thermal curing, this coating remains chemically stable at temperatures below 400°C; even under frequent braking or repeated thermal expansion/contraction in urban environments, it will not carbonize, delaminate, or turn white.

All of our brake discs are manufactured at a modern braking system production base in Laizhou, Shandong Province. As China's largest export base for automotive brake discs, it boasts over 30 years of experience in manufacturing braking components.

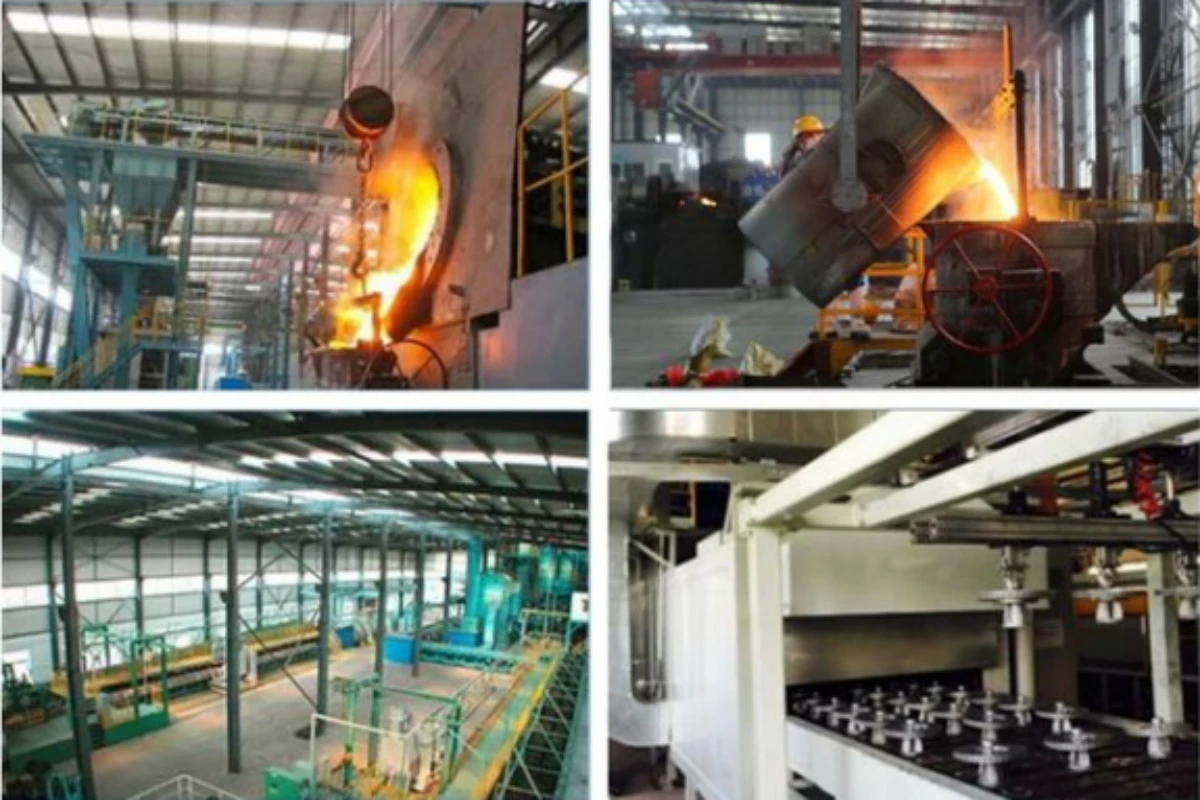

The foundry workshop adopts fully automatic DISA static molding lines imported from Denmark and uses HT250 high-carbon alloy cast iron. The carbon content is strictly controlled between 3.1% and 3.3%, silicon content between 1.7% and 1.9%, and manganese content between 0.7% and 0.9%. Each batch of molten iron undergoes composition testing with a direct reading spectrometer, and unqualified molten iron will never proceed to the next production process. The cast blanks are also subjected to 24-hour aging treatment to eliminate internal stress and prevent deformation of brake discs during use.

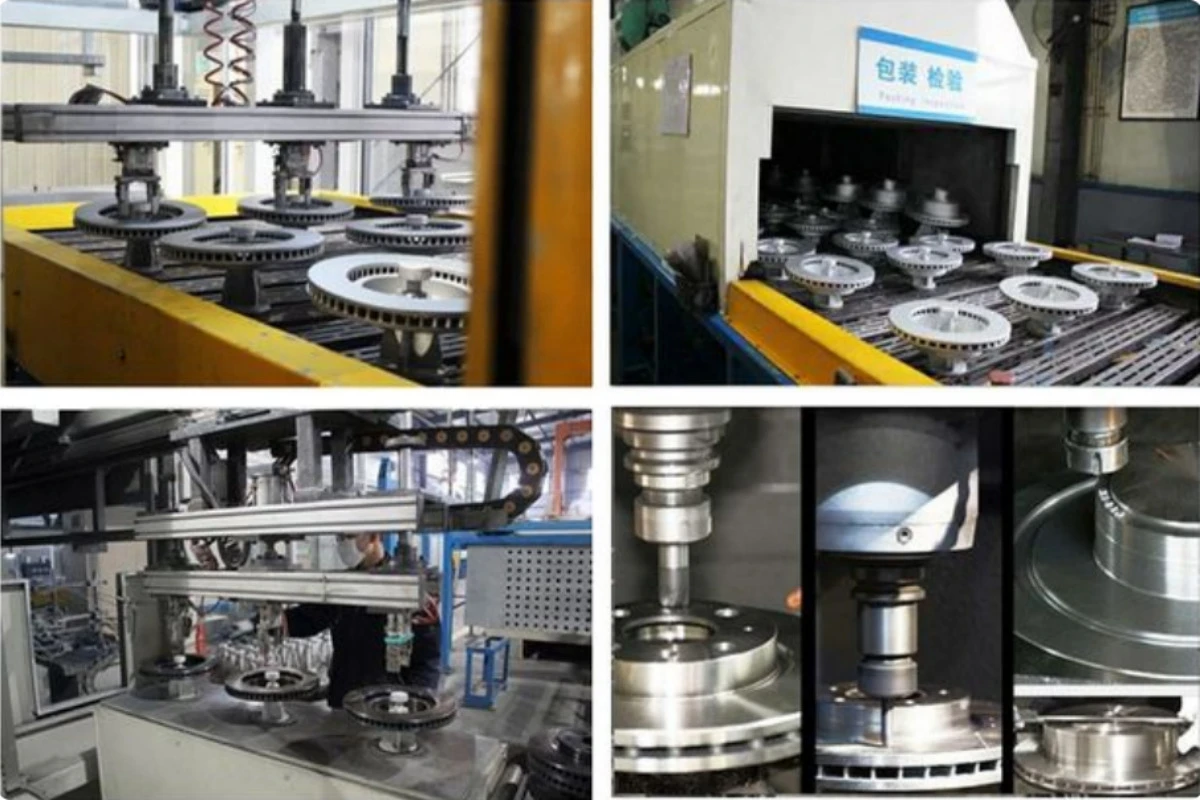

The machining workshop is equipped with double-tool opposed CNC lathes imported from Germany. All machining procedures can be completed in a single clamping, ensuring superior concentricity and flatness. Every brake disc undergoes 100% dynamic balance inspection with the dynamic balance accuracy controlled at **≤15g·cm**, which prevents steering wheel vibration during high-speed driving. Finally, ultrasonic flaw detection is conducted to check for casting defects such as pores and sand holes inside the products. Only fully qualified brake discs will move on to the packaging stage.

Front brake disc for Toyota Corolla 4351212330| After-sales Service Guarantee
Basic Original Factory Warranty
This brake disc fits Toyota Corolla, Celica and Matrix (Part Number: 4351212330). It is certified by Toyota TIS Brake System, with a warranty of **80,000 kilometers or 12 months, whichever comes first. The warranty only covers manufacturing defects under normal use.

- Warranty Coverage: Casting and metallurgical defects of HT250 gray cast iron (blowholes, shrinkage cavities, inclusions); abnormal paint peeling and severe rust on coatings; brake judder caused by unqualified dynamic balance.
- Exclusions from Warranty: Damage resulting from improper installation, secondary damage caused by caliper or brake pad malfunctions, continued use after wear thickness drops below 17mm, use of incompatible racing brake pads, modified calipers, and deformation caused by emergency braking after water immersion.

Quality Inspection and Traceability Guarantee
100% full inspection is conducted before delivery: outer diameter tolerance ±0.1mm, thickness tolerance ±0.05mm, face runout ≤0.05mm, and mandatory dynamic balance test. All inspection data can be traced back to production batches, melting furnace numbers and testing time.

Claims, Returns and Exchanges
- Warranty Claims: Submit photos of damaged products and thickness data measured by micrometer. We will give an initial reply within 24 hours and provide a solution within 48 hours. Free replacement or full refund is available.
- Abnormalities Upon Receipt: For surface defects, dimensional deviations and other issues, submit relevant proofs and we will handle the case within the above time limit. Product exchange or refund is supported.
- Returns & Exchanges for Quality Issues: Free product replacement. We will bear the round-trip freight and deliver new goods within 3 working days.
- Returns & Exchanges for Non-quality Issues: The buyer shall bear the freight. The product must be uninstalled with original packaging intact. Door-to-door pickup is available, and the whole process will be completed within 5 working days.
- Logistics Damage: Inspect the goods on the spot, take photos and refuse acceptance. We will resend the goods within 24 hours after settling compensation with the logistics provider.

Logistics and Packaging

Products are delivered directly from the factory in Shandong, with a single unit weighing approximately 4kg. Each item is packed with **double-layer OPP/EPE foam, five-ply reinforced corrugated carton and corner protectors** to prevent collision damage. Designated freight forwarders are acceptable, and sea shipments depart from Qingdao Port. For medium and large batch orders, full container sea freight via COSCO or Maersk is recommended to cut costs. Please inform us in advance for special requirements.

Q: What is the recommended torque specification for installing this Front brake disc for Toyota Corolla 4351212330 on the Corolla E9 series?
A: The recommended torque for wheel bolts is approximately 103 Nm (76 ft·lbf), and tighten them in a star-shaped diagonal cross sequence. The torque for front brake caliper bracket bolts is about 107 Nm (79 ft·lbf). These figures are official specifications from Toyota. Never tighten the bolts just by feel until they seem tight; a torque wrench must be used. It is advised to recheck the torque after driving 50 to 100 kilometers to make sure no loosening occurs.

Q: Is there a big difference between this brake disc and the original factory parts for Corolla? How is the price kept lower?
A: It adopts HT250/G3000 gray cast iron, which is fully equivalent to the original G3000 grade material. Its core dimension of 238×18mm strictly complies with OE standards. Moreover, we have upgraded the coating: partition curing of water-based zinc-aluminum coating is used instead of anti-rust oil. It can resist rust for 720 hours in salt spray tests, offering better durability than the basic anti-rust treatment of regular original parts. The main price advantage comes from eliminating brand premium and dealer markups, so its price is around 40% to 50% of the original factory parts. If you install it yourself or go to an independent repair shop, the money saved can cover the cost of several full tanks of fuel.

Q: I mainly drive my Corolla in urban areas. Is it necessary to choose a vented brake disc? The low-end factory version comes with a solid disc. What are the differences between them?
A: The OE part number 4351212330 with a size of 238mm is inherently an internally vented brake disc. This is not an optional upgraded configuration, but a factory setup for certain Corolla trims and models such as the Celica. For daily urban commuting, vented discs perform better in heavy stop-and-go traffic and occasional long highway drives. The centrifugal airflow dissipates accumulated heat during frequent starts and stops, delivering a more consistent brake feel. It prevents the brake pedal from gradually sinking after half an hour of continuous traffic congestion. If your original brake disc has this OE number, you can install this product directly without hesitation.

Here's a common pitfall many car owners fall into: resurfacing brake rotors is not just about making the surface look smooth.

Many repair shops tell car owners, "It's fine if there are grooves on the rotor surface. We can resurface it to make it flat, and you won't need a new rotor." This statement is not entirely wrong. If the rotor has sufficient remaining thickness, the grooves are shallow, and the lateral runout is within the standard range, resurfacing will allow it to keep working. However, for family cars like the Corolla, the standard thickness of the front brake rotors is merely 18 mm, with the minimum allowable thickness being 17 mm, leaving only 1 mm of usable margin in total. Once obvious grooves appear on the rotor, its actual thickness may drop to around 17.5 mm or even less. When the rotor is further machined on a lathe and loses a few tenths of a millimeter, its thickness will get dangerously close to the 17 mm safety limit. While the rotor surface becomes smooth, the rotor itself is thinner. Its heat capacity is reduced, which may lead to ineffective braking during hard stops when driving on mountain roads.

Therefore, you need to think twice before resurfacing the front brake rotors of compact family cars. First, measure the actual thickness with a micrometer. If the thickness is close to the 17 mm limit, the groove depth exceeds 0.5 mm, or the lateral runout goes beyond the standard, replacing the rotors is the safest and most cost-effective option. In particular, spare parts for the Corolla are quite affordable. The cost difference between replacing a pair of front rotors and brake pads and having the rotors resurfaced plus labor fees is not as big as you might think. Never cut corners when it comes to driving safety.
