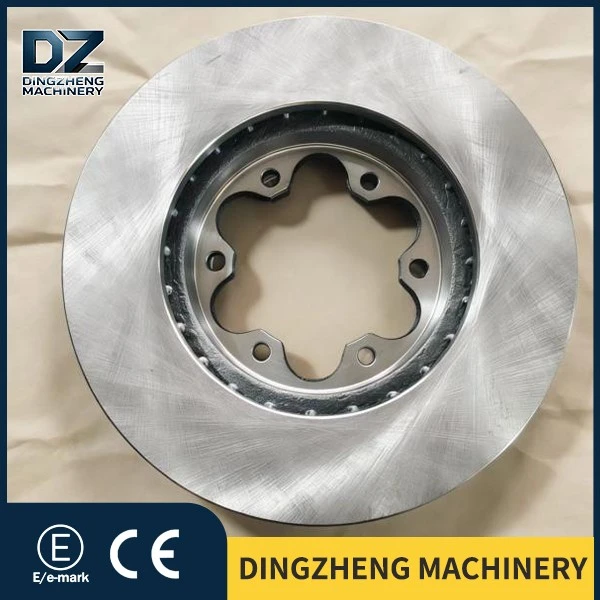

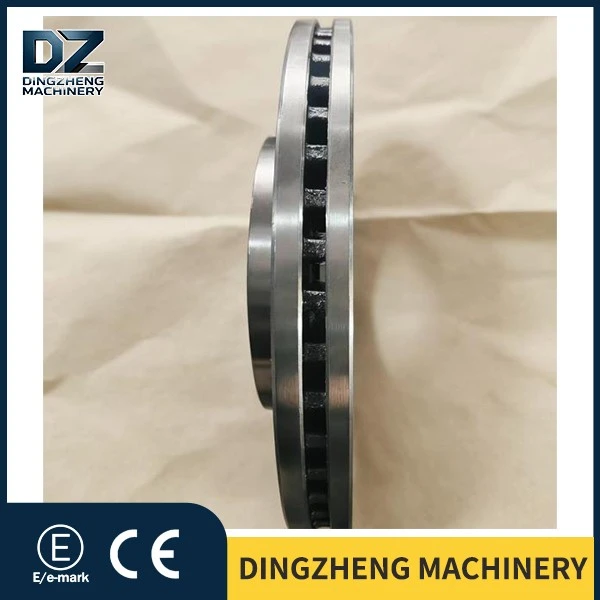

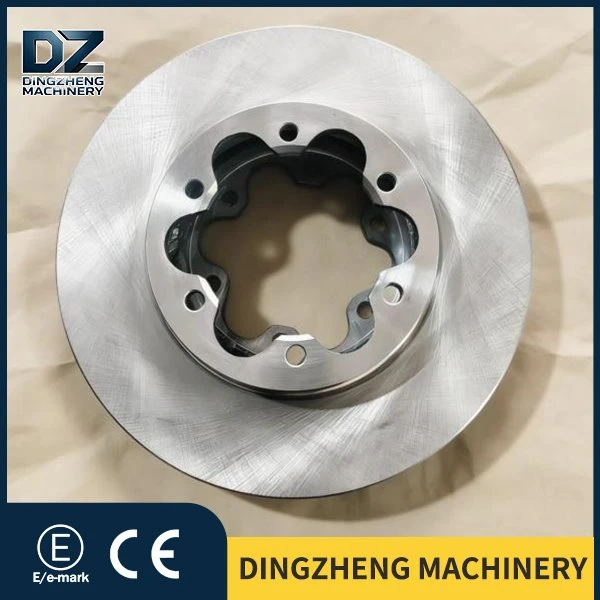

Toyota Hiace Commuter Vehicle Front Brake Discs

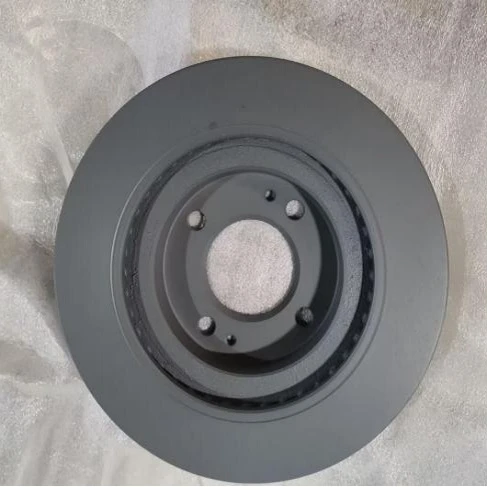

Toyota Hiace Commuter Vehicle – Front Brake Discs 4351226190 is compatible with a wide range of cars, as follows:

There are different corresponding codes for Front brake disc for TOYOTA 4351226190

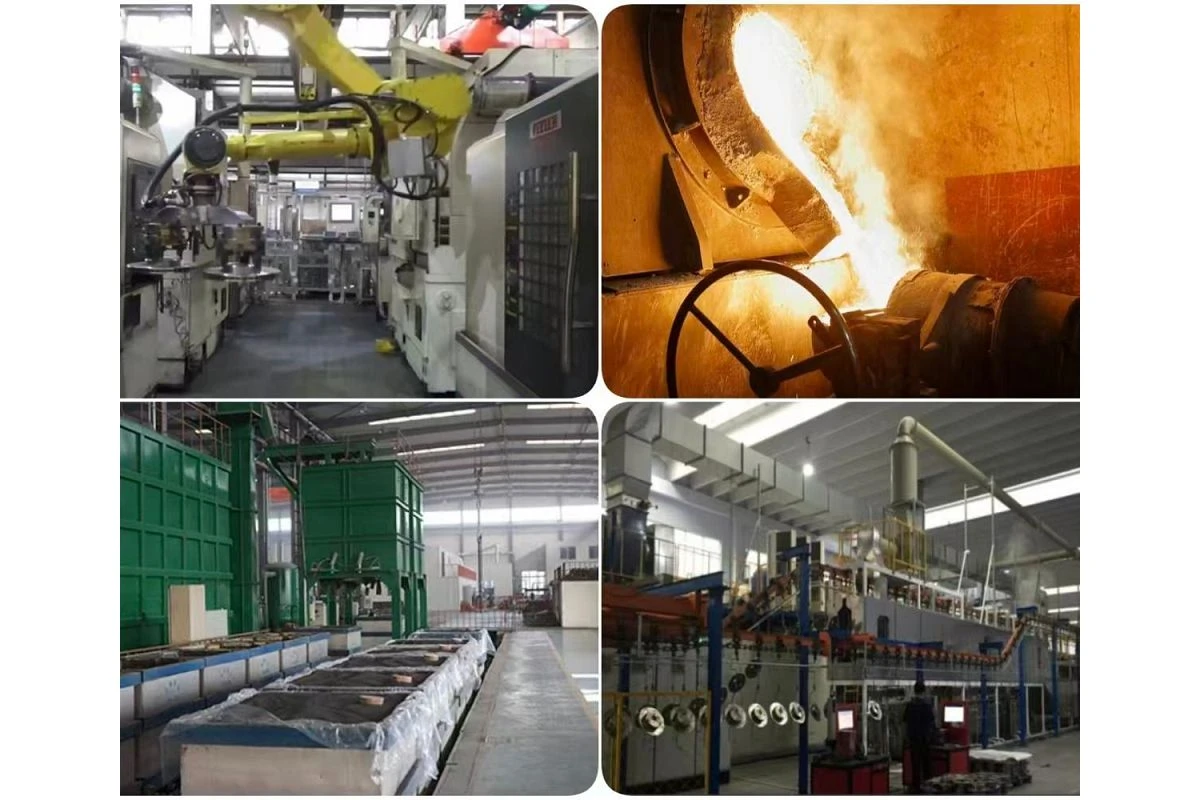

Every brake disc including the Toyota Hiace Commuter Vehicle – Front Brake Discs 4351226190, is subject to stringent quality control starting right from the casting source. We are equipped with two 1.5-ton casting electric furnaces to ensure stable and sufficient production capacity; our fully automated machining workshop guarantees the precise dimensional accuracy of all products; and a professional anti-rust cleaning line delivers efficient and reliable anti-corrosion treatment for every brake disc. Our company boasts a comprehensive and advanced production setup, including two casting electric furnaces, more than 20 CNC machining devices, and a full set of integrated production and testing equipment. We have independent mold R&D and manufacturing capabilities, and we persist in continuously developing new vehicle-matched models and innovative brake disc products to keep pace with dynamic market demands. To date, we have a mature product portfolio of over 5,000 brake disc models and more than 3,000 sets of ready-made molds, paired with a complete range of dedicated supporting facilities for professional brake disc surface treatment. Our diversified product range fully caters to the differentiated needs of global customers, covering not only brake discs with conventional surface treatments such as drilling, slotting, spray painting and Dacro coating, but also high-performance options including high-carbon brake discs, modified brake discs and racing-grade brake discs for special application scenarios.

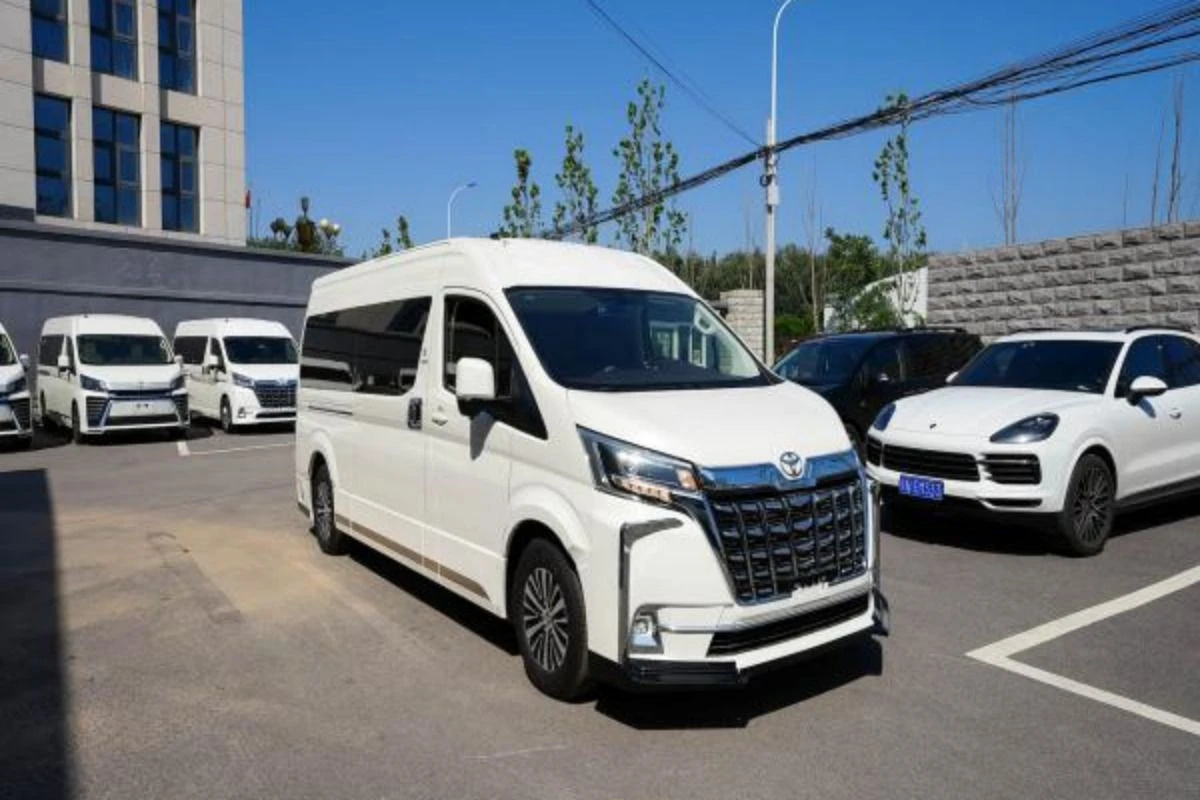

Q1: When replacing the Toyota Hiace Commuter Vehicle – Front Brake Discs 4351226190 on Toyota HIACE Quantum, do the original vehicle hub flange and factory brake calipers require grinding or modification? What is the standard tightening torque specification for the matching wheel hub bolts?
A: This brake disc is molded strictly in accordance with Toyota's official TIS drawings. Its 5-bolt mounting positions and 91.5mm center bore fit the original hub flange with zero tolerance. It can directly replace the OEM factory disc without flange grinding or spacer installation, and matches the stock front brake calipers of HIACE perfectly. Per specifications from the official service manual, the standard tightening torque for wheel hub bolts is 125Nm. Tighten the bolts diagonally in three separate passes evenly to prevent excessive lateral runout of the disc caused by uneven stress loading. Unauthorized upgrades to oversized calipers are not recommended, as such modifications commonly lead to insufficient brake travel and uneven pad wear.

Q2: For passenger and cargo-carrying HIACE vehicles fitted with Toyota Hiace Commuter Vehicle – Front Brake Discs 4351226190 , split into empty-load daily commuting and fully loaded heavy-duty operating conditions, how frequently should the disc thickness be inspected at a service shop? At what thickness measurement is immediate brake disc replacement mandatory?
A: For regular empty urban passenger transport, have the disc thickness physically measured with a micrometer every 20,000 kilometers. For vehicles consistently hauling full cargo and regularly traveling on bumpy mountain roads, brake pads and rotors wear faster, shortening the inspection interval to 13,500 kilometers. New rotors of this specification feature a standard thickness of 28.6mm, with the factory-specified minimum discard thickness set at 25.3mm. Instant replacement is required once measured thickness falls below this threshold, or unilateral groove depth on the disc surface exceeds 0.5mm, to avoid rotor cracking or deformation under heavy-load braking.

Q3: Is faint squeaking noise emerging after several hundred kilometers of running with newly installed 4351226190 brake discs deemed a manufacturing defect? How to tell whether abnormal noise originates from brake pads or faulty brake rotors?
A: Minor abnormal noise within the initial 500-kilometer running-in period is not a product quality defect. The friction surfaces of new rotors and brake pads have not fully bedded in, and fine abrasive dust trapped between contact faces generates temporary squeaking that typically fades naturally once break-in completes. Simple fault identification guide: intermittent squealing during light braking mostly stems from glazed pad surfaces or embedded grit, resolvable by wiping down brake pads with isopropyl alcohol. Persistent harsh metal-on-metal grinding paired with steering wheel vibration during braking indicates abnormal rotor wear once lateral runout exceeds 0.05mm or widespread corrosion pits deeper than 1mm form on disc faces; replace affected rotors as needed.

To respond to the rapid changes in the global automotive market, the company has continuously increased investment in research and development. Relying on its independent mold development capabilities, it has continuously launched brake disc products adapted to new vehicle models. "Quality and Reputation" is the core value that Dingzheng Machinery has always adhered to. We will, as always, honor our commitment of "Focusing on Brake Safety, Providing Lifetime Protection, and Being a Responsible Enterprise" to provide global customers with more reliable automotive braking solutions.We are fully aware that only through continuous innovation can we meet the ever-growing market demand. Therefore, the company has established a professional R&D team, continuously investing in the research and application of new technologies and processes, and launching hundreds of new products every year. "Quality and reputation" have long been embedded in the blood of Dingzheng Machinery. We will always keep in mind the mission of "focusing on braking safety, safeguarding travel safety, and being a responsible enterprise", and escort the safety of every car owner with high-quality products.
